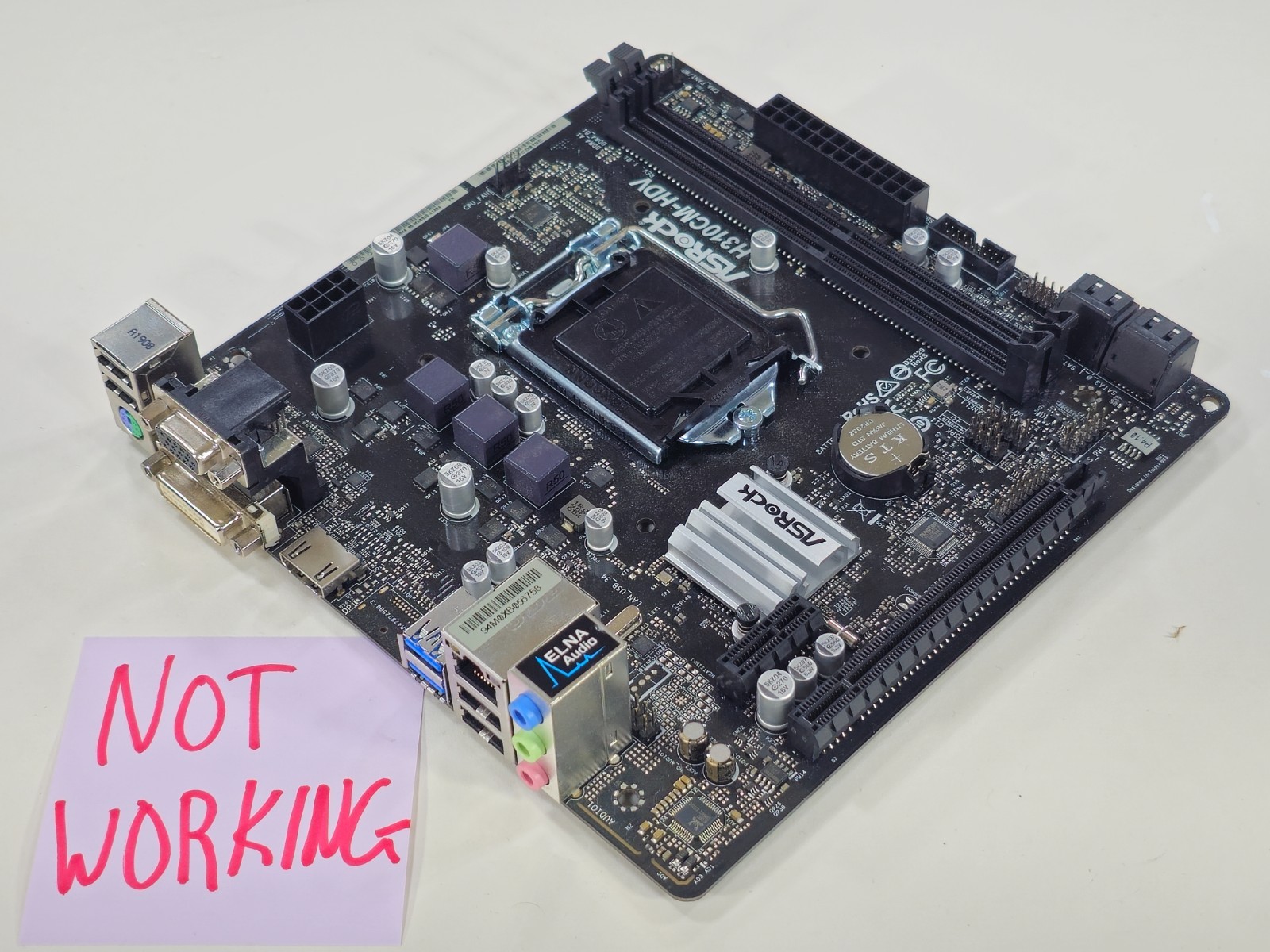

For sale is my ASRock H310CM-HDV motherboard. It is not in working condition. It will not power on, even with a known good CPU and set of memory. It does not come with an I/O shield.It is also missing it's PCI-E slot retention clips.
I may have some spare accessory parts available, such as CPU backplates and brackets, CMOS batteries, I/O shields, Wi-Fi antennas, M.2 screws and studs, and PCI-E slot retention clips. If available, these can be added to a motherboard purchase as needed for an additional fee. I don’t offer these items on their own, and quantities are limited to what makes sense for the motherboard(s) being purchased. If interested, send an message to ask about availability and pricing.
This motherboard was shipped as part of a prebuilt computer at some point, so any damage or symptoms may be related to damage during shipping. It was also in storage for a long period of time, so the CMOS battery may be dead if there is a battery still installed, and there may be dust, scratches, dents, bent or broken pins, or other physical damage not explicitly described. You will receive the exact motherboard that is pictured, so make sure to check all of the photos closely for actual physical conditionYour purchase comes with everything pictured. You are only buying what is pictured, and nothing else. If a cable or something else is not pictured, it is not included!SHIPPING AND PURCHASE TERMSIdo combined shipping discounts! Multiple quantity listings already have automatic shipping discounts included, but multiple items from different listings do not. If you want to purchase from multiple listings from me and you need a shipping adjustment, please contact me and an adjustment will be made after purchase. Shipping discounts on additional items beyond the first item vary, but expect modest to significant savings depending on factors like size, weight, and distance for the package(s). Multiple listing combined shipping discounts are not automatic and must be requested.
Due to increasing amounts of fraudulent buyers using freight forwarders, buyers suspected to be using a freight forwarder will be scrutinized for fraudulent activity, and will require an admission in messages that a freight forwarder is being used for that order. I reserve the right to cancel and refund orders using freight forwarders in order to protect myself from potential fraud.Item serial number will be recorded if present.Signature confirmation will be required on all sales of $750 or more.International buyers READ THIS: International shipping for most countries will be handled by international shipping services. Otherwise it will be shipped with an appropriate USPS, UPS, or FedEx service. Keep in mind, I cannot change customs value of the item and I cannot mark it as gift. Import duties, taxes, and charges aren't included in the item price or postage cost for items not shipped with international shipping. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.___
Learn more about the ASRock CPUCPU Socket TypeLGA 1151 (300 Series)CPU TypeSupports 9th and 8th Gen Intel Core Processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUsSupported CPU TechnologiesTurbo Boost Technology 2.0ChipsetsChipsetIntel H310Onboard VideoOnboard Video ChipsetSupports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
DirectX 12
HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
Three graphics output options: D-Sub, DVI-D and HDMI**
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096 x 2160) @ 30 Hz
Supports DVI-D with max. resolution up to 1920 x 1200 @ 60 Hz
Supports D-Sub with max. resolution up to 1920 x 1200 @ 60 Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
** Supports up to 2 displays simultaneouslyMemoryNumber of Memory Slots2x288pin (DDR4)Memory StandardDDR4 2666/ 2400/ 2133Maximum Memory Supported32GB
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.Channel SupportedDual ChannelExpansion SlotsPCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
* Supports NVMe SSD as boot disksPCI Express x11 x PCI Express 2.0 x1 SlotStorage DevicesSerial ATA (SATA)4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot PlugOnboard AudioAudio ChipsetRealtek ALC887Audio Channels7.1 Channels
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Onboard LANLAN ChipsetRealtek RTL8111HMax LAN Speed1GbpsRear Panel PortsPS/21 x PS/2 keyboard/mouse portVideo Ports1 x D-Sub Port
1 x DVI-D PortHDMI1 x HDMIRJ451 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)USB 3.12 x USB 3.1 Gen1 Ports (Supports ESD Protection)USB 1.1/2.04 x USB 2.0 Ports (Supports ESD Protection)Audio PortsHD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O ConnectorsOnboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)Other Connectors1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Front Panel Audio Connector* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.Software FeatureWindows 11SupportedPhysical SpecForm FactorMicro ATXDimensions (W x L)7.5" x 7.4"Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power ConnectorFeaturesFeaturesUnique Feature:
ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP ShopBIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.05V Voltage Multi-adjustmentSoftware and UEFI:
Software
- ASRock A-Tuning
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
* These utilities can be downloaded from ASRock Live Update & APP Shop.Hardware Monitor:
- Temperature Sensing: CPU, Chassis/Water Pump Fans
- Fan Tachometer: CPU, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU VcoreOS:
- Microsoft Windows 10 64-bitCertifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)___
