10 Inch Rack Mount 1.5U for the Beelink SER10 Max / SER9 / SER9 Pro / SER9 Max / SER8
A 1.5U tray that seats a Beelink SER-series mini PC in its 135 mm chassis in a 10 inch mini rack, printed to order in matte black PETG. The PC slides in from the front, through the window, until it touches the two rear stop posts, and sits about 11 mm proud of the faceplate. Beelink draws cooling air in through the bottom of these PCs, so the PC rests on an open honeycomb floor that is open through its full thickness, and the rear of the tray is open. No adhesive, no modification to the PC.
Designed From The Published Specification
- Fits: Beelink SER10 Max, SER9 (AI 9 HX 370), SER9 Pro and SER9 Max, 135 x 135 x 44.7 mm without rubber feet per Beelink. The SER8 and the SER10 Max use the same 135 mm chassis (Beelink's Mate SE dock is made for the SER8, SER9 Pro/Max and SER10 Max). One PC per tray; two trays stack in 3U.
- Why 1.5U: 44.7 mm is already taller than a 1U (44.45 mm) faceplate before the rubber feet.
- Opening 137 x 50.7 mm over a flush floor: 1 mm of side clearance and 6 mm above the 44.7 mm body for the rubber feet.
- Faceplate 248 mm wide on EIA-310 10 inch hole spacing; 1.5U (66.7 mm) tall.
Build
- Single piece.
- Vented rhythm-slot face and an open honeycomb floor.
- Fits any 10 inch / 254 mm mini rack with standard square or round holes. The mounting slots take M6, M5, #10-32 or M4 rack screws.
- Part measures 248 x 132 x 66.7 mm. Matte black PETG.
Printed To Order
Each unit is printed fresh in our shop on calibrated printers and inspected before it ships. Lead time is typically 1-3 business days. Minor layer lines are normal for FDM 3D printing and part of the finish.

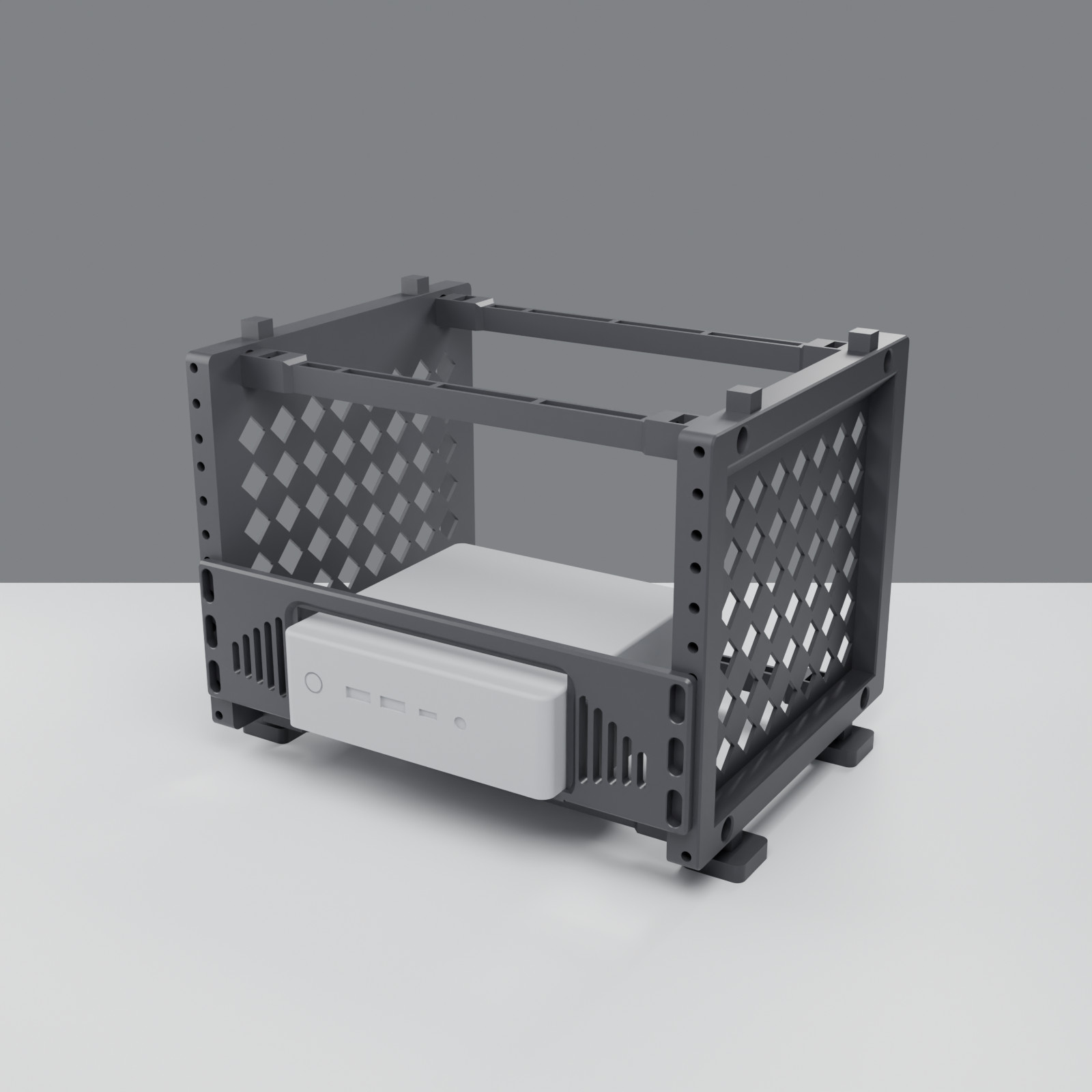

Mount only. Mini PC and power adapter not included. The rack and the device shown in the photos are not included; they appear for scale and fitment only.
Not an official Beelink product; Beelink is a trademark of its owner.
