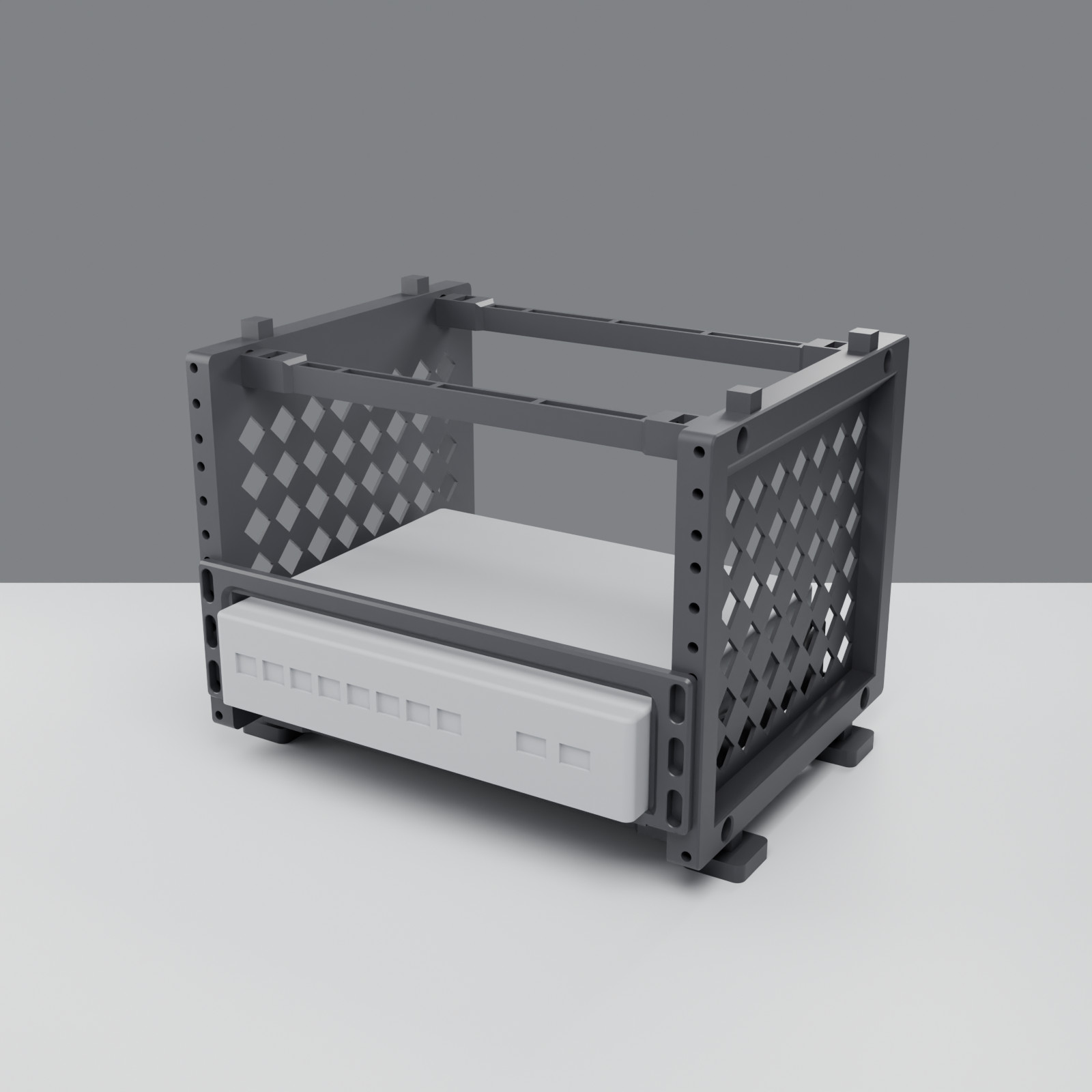

10 Inch Rack Mount 1.5U for UniFi Switch Pro XG 8 PoE
A 1.5U tray that seats the UniFi Switch Pro XG 8 PoE in a 10 inch mini rack, printed to order in matte black PETG. It slides in from the front, through the window, until it touches the two rear stop posts, and sits about 11 mm proud of the faceplate. No adhesive, no modification to the device.
Designed From The Published Specification
- Fits: Ubiquiti UniFi Switch Pro XG 8 PoE (USW-Pro-XG-8-PoE), 210.4 x 173.8 x 43.7 mm per Ubiquiti's tech specs.
- Built for the weight: the 1.6 kg steel switch gets a 5.6 mm floor, and both side walls rise almost to the top of the faceplate as curved gussets welded to its back.
- Opening 212.4 x 48.7 mm over a flush floor: 1 mm of side clearance and 5 mm above the 43.7 mm body.
- Faceplate 248 mm wide on EIA-310 10 inch hole spacing; 1.5U (66.7 mm) tall.
Build
- Single piece.
- Open honeycomb floor.
- Fits any 10 inch / 254 mm mini rack with standard square or round holes. The mounting slots take M6, M5, #10-32 or M4 rack screws.
- Part measures 248 x 170.8 x 66.7 mm. Matte black PETG.
Printed To Order
Each unit is printed fresh in our shop on calibrated printers and inspected before it ships. Lead time is typically 1-3 business days. Minor layer lines are normal for FDM 3D printing and part of the finish.
Mount only. Switch and power adapter not included. The rack and the device shown in the photos are not included; they appear for scale and fitment only.
Not an official Ubiquiti product; Ubiquiti is a trademark of its owner.
