10 Inch Rack Mount 1U for MokerLink 2.5G Switches (175 mm case)
A 1U tray that seats a MokerLink 2G080110GS, 2G080110GSM or 2G040210GS 2.5G switch in a 10 inch mini rack, printed to order in matte black PETG. The switch slides in from the front, through the window, until it touches the two rear stop posts, and sits about 11 mm proud of the faceplate. It rests on an open honeycomb floor and the rear of the tray is open for cables. No adhesive, no modification to the switch.
Designed From The Published Specification
- Fits: MokerLink 2G080110GS (8 x 2.5G + SFP+), 2G080110GSM and 2G040210GS (4 x 2.5G + 2 SFP+), 175 x 73 x 28 mm per MokerLink, ports forward.
- Only the 175 x 73 x 28 mm MokerLink case. Not for the MokerLink 2G08110GS (190 x 100 x 28 mm) or the PoE model POE-2G080110GSM (190 x 140 x 44 mm), which are larger.
- Opening 177 x 31 mm over a flush floor: 1 mm of side clearance and 3 mm above the 28 mm body.
- Faceplate 248 mm wide on EIA-310 10 inch hole spacing; 1U (44.45 mm) tall.
Build
- Single piece.
- Vented rhythm-slot face and an open honeycomb floor.
- Fits any 10 inch / 254 mm mini rack with standard square or round holes. The mounting slots take M6, M5, #10-32 or M4 rack screws.
- Part measures 248 x 70 x 44.45 mm. Matte black PETG.
Printed To Order
Each unit is printed fresh in our shop on calibrated printers and inspected before it ships. Lead time is typically 1-3 business days. Minor layer lines are normal for FDM 3D printing and part of the finish.

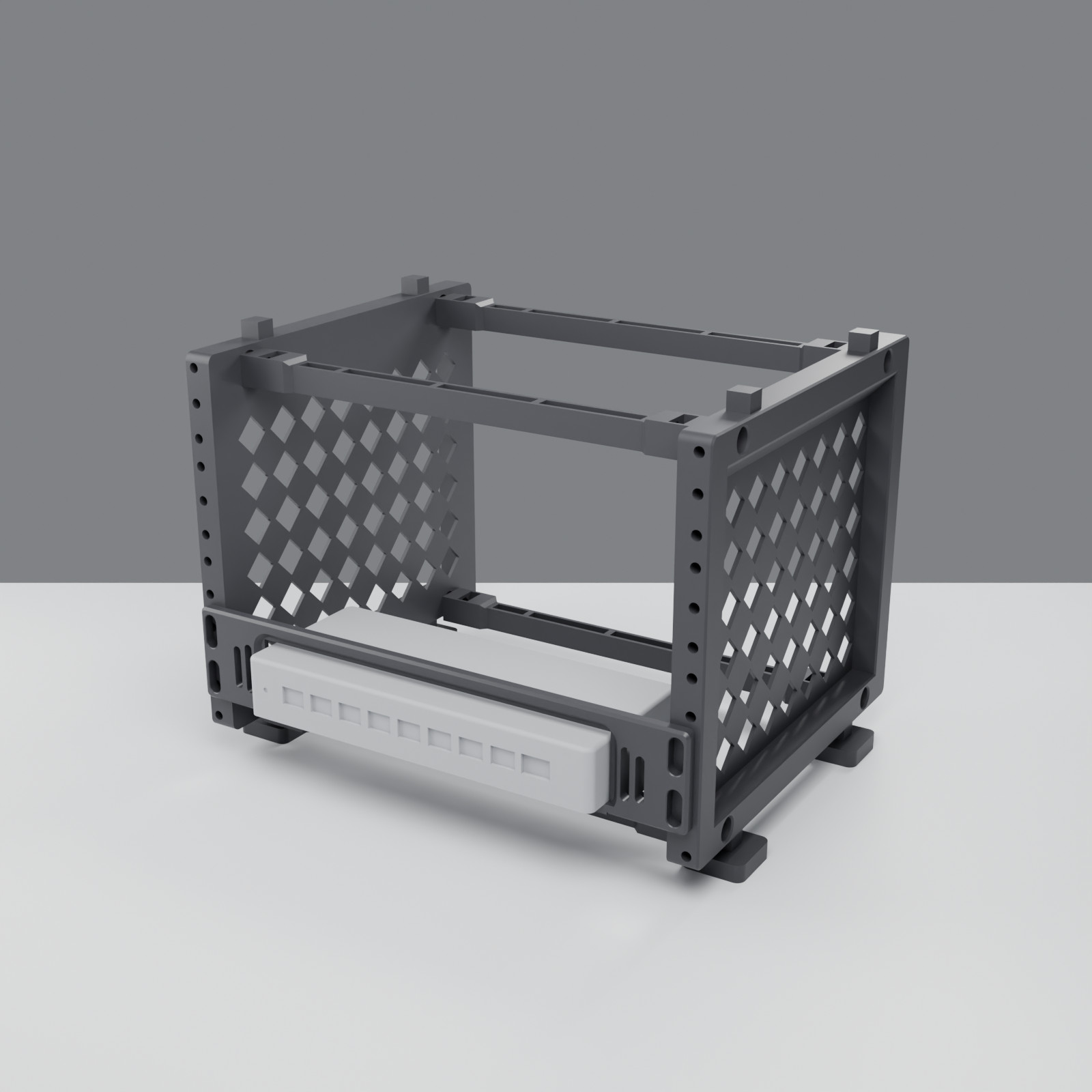

Mount only. Switch and power adapter not included. The rack and the device shown in the photos are not included; they appear for scale and fitment only.
Not an official MokerLink product; MokerLink is a trademark of its owner.
