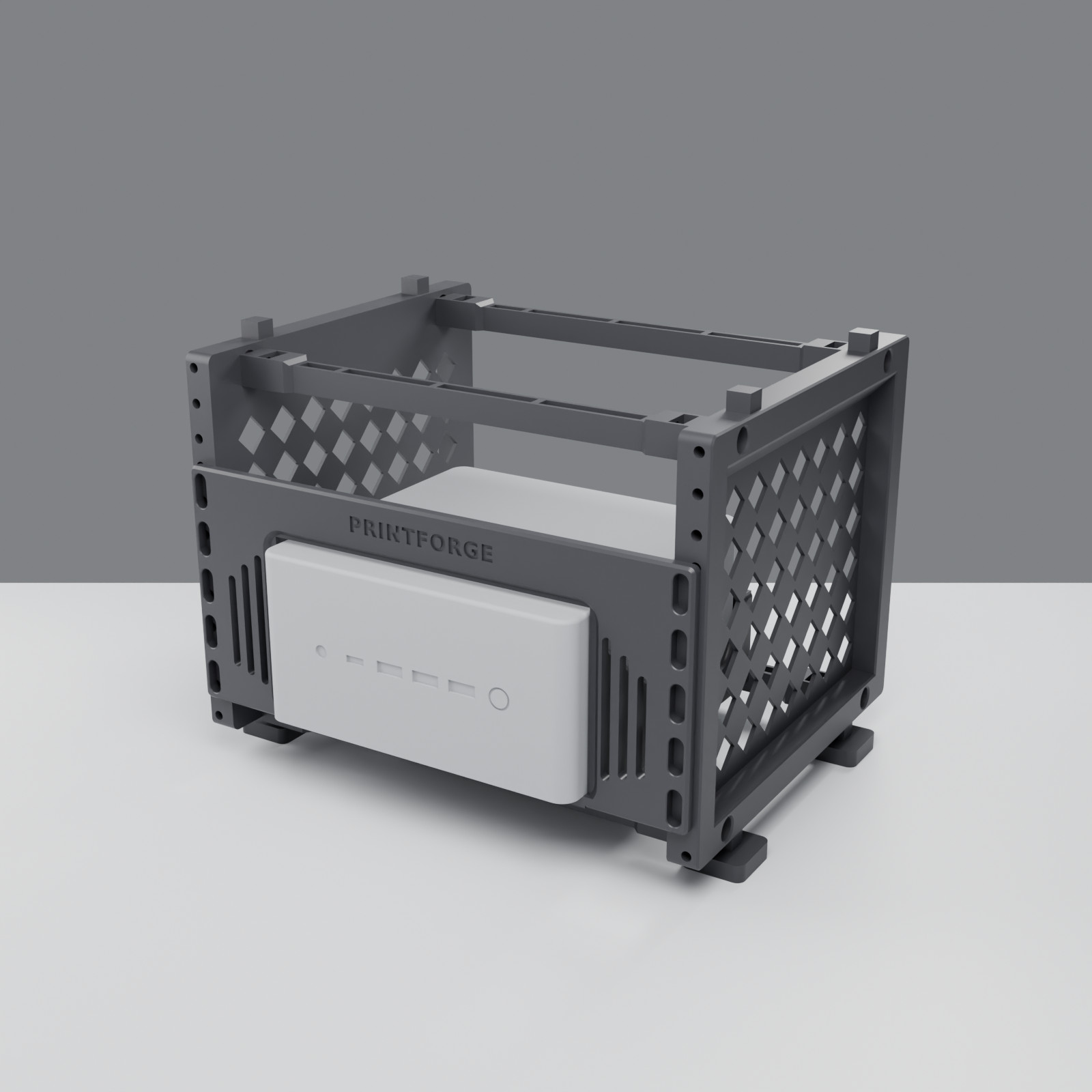

10 Inch Rack Mount 2.5U for the GMKtec K12 / EVO-T1
A 2.5U tray that seats a GMKtec NucBox K12 or EVO-T1 in a 10 inch mini rack, printed to order in matte black PETG. The PC slides in from the front, through the window, until it touches the two rear stop posts, and sits about 11 mm proud of the faceplate. It rests on an open honeycomb floor and the rear of the tray is open for cables. No adhesive, no modification to the PC.
Designed From The Published Specification
- Fits: GMKtec NucBox K12 and EVO-T1, which share one 154 x 151 x 73.6 mm chassis per GMKtec, inserted with the front I/O panel forward.
- Why 2.5U: standing on its rubber feet the PC is 78 mm tall (78 x 155 x 151 mm in Notebookcheck's review); that, the 5 mm floor and a solid top band need more than a 2U (88.9 mm) faceplate.
- Opening 157 x 80.5 mm over a flush floor: 1 mm of side clearance and 2.5 mm above the 78 mm it stands on its rubber feet.
- Faceplate 248 mm wide on EIA-310 10 inch hole spacing; 2.5U (111.1 mm) tall.
Build
- Single piece.
- Vented rhythm-slot face and an open honeycomb floor.
- Fits any 10 inch / 254 mm mini rack with standard square or round holes. The mounting slots take M6, M5, #10-32 or M4 rack screws.
- Part measures 248 x 148 x 111.1 mm. Matte black PETG.
Printed To Order
Each unit is printed fresh in our shop on calibrated printers and inspected before it ships. Lead time is typically 1-3 business days. Minor layer lines are normal for FDM 3D printing and part of the finish.
Mount only. Mini PC and power adapter not included. The rack and the device shown in the photos are not included; they appear for scale and fitment only.
Not an official GMKtec product; GMKtec and NucBox are trademarks of their owner.
