100/1000 Mbps Gigabit Media Converter RJ45 Ethernet to Fiber Optic 80Km S/M SC For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

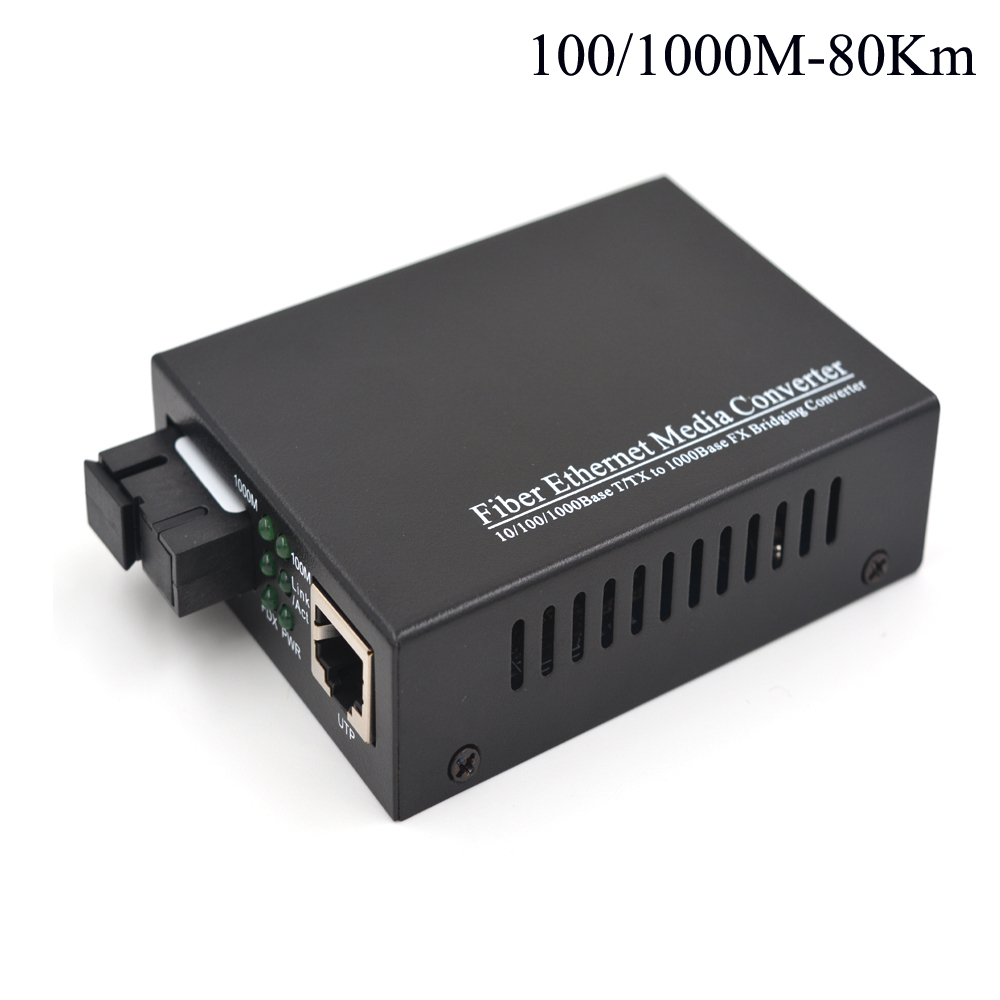

100/1000 Mbps Gigabit Media Converter RJ45 Ethernet to Fiber Optic 80Km S/M SC

Price: KM $364.65

Premium gigabit ethernet to fiber converter, Single mode single fiber Up to 80Km, 2U Chassis mountable.

Don't Settle for Low Cost, Generic, Poor Performance, No Quality opticalconverter.

Overview:

HTB Series Gigabit single-mode fiber optical transceiver is 10/100 / 1000M adaptive power port (TX) and 1000M optical signal conversion device optical port (FX) between traditional Gigabit Ethernet can be through a core fiber optic link extension to 80KM range. Single-mode fiber optical transceivers must be used in pairs(A+B).

Products using latest US IC, superior performance and quality. The use of special design allows the transceiver can operate stably for a long time. 6 LED lights could fully monitor the working status of the transceiver, the transceiver to facilitate observation of the working status and diagnostic transceiver failure.

For the environment:

For telecommunications , broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment.

The main features:

◆Ethernet RJ45 port can automatically adapt to the 10/100 / 1000M and full duplex, half duplex transmission mode is truly adaptive Gigabit Fiber Transceiver

◆Ethernet RJ45 portcan adaptively direct line / crossover cable connection

◆ Supports a maximum 1536 bytes of Ethernet packets

◆ Support full / half duplex flow control

◆ The maximum length of a single-mode optical fiber 10 to 80km

Technical Specifications:

◆ Standard: IEEE802.3z / AB, 1000Base-T and 1000Base-SX / LX

◆ MAC Address Table: 4K

◆ Cache: 256KB

◆ Bandwidth: 3.2G, can achieve non-blocking wire-speed forwarding

◆ Interface Standard: power port: RJ-45,10 / 100 / 1000Mbps (adaptive); optical interface: SC, 1000Mbps

◆ Cable:UTP: 5e or Category 6 cable (max distance up to 100M).Optical fiber (single mode): 8.3 / 125,8.7 / 125,9 / 125μm (max distance up to 80KM)

◆ Flow control: IEEE802.3x full-duplex flow control; half-duplex backpressure flow control

◆ LED Indicator: PWR, FX Act, TP FDX, TP Act, TP 100, TP 1000

◆ Power: 100-260V, 50Hz; DC 5V, 2A

◆ Ambient temperature :: 0 ~ + 50 ℃

◆ Storage temperature :: - 20 ~ + 70 ℃

◆ humidity : 5% ~ 90%

◆ Size: Power External 70 × 26 × 93mm.

Type

Fiber port type

Fiber optic type

Transmission wavelength

Emission wavelength

Receiver sensitivity

Transmission distance

Allow loss

HTB-4100A/B-20

Single mode

1310/1550nm

-10～-5dBm

-23dBm

20km

13dBm

HTB-4100A/B-40

Single mode

1310/1550nm

-5/-8～0dBm

-26dBm

40km

21/18dBm

HTB-4100A/B-60

Single mode

1310/1550nm

0/-5～2dBm

-26dBm

60km

26/21dBm

HTB-4100A/B-80

Single mode

1490/1550nm

-2～3dBm

-26dBm

80km

24dBm

Package Include:

1 Pair (A+B)
2x power cable
1 x User manual
