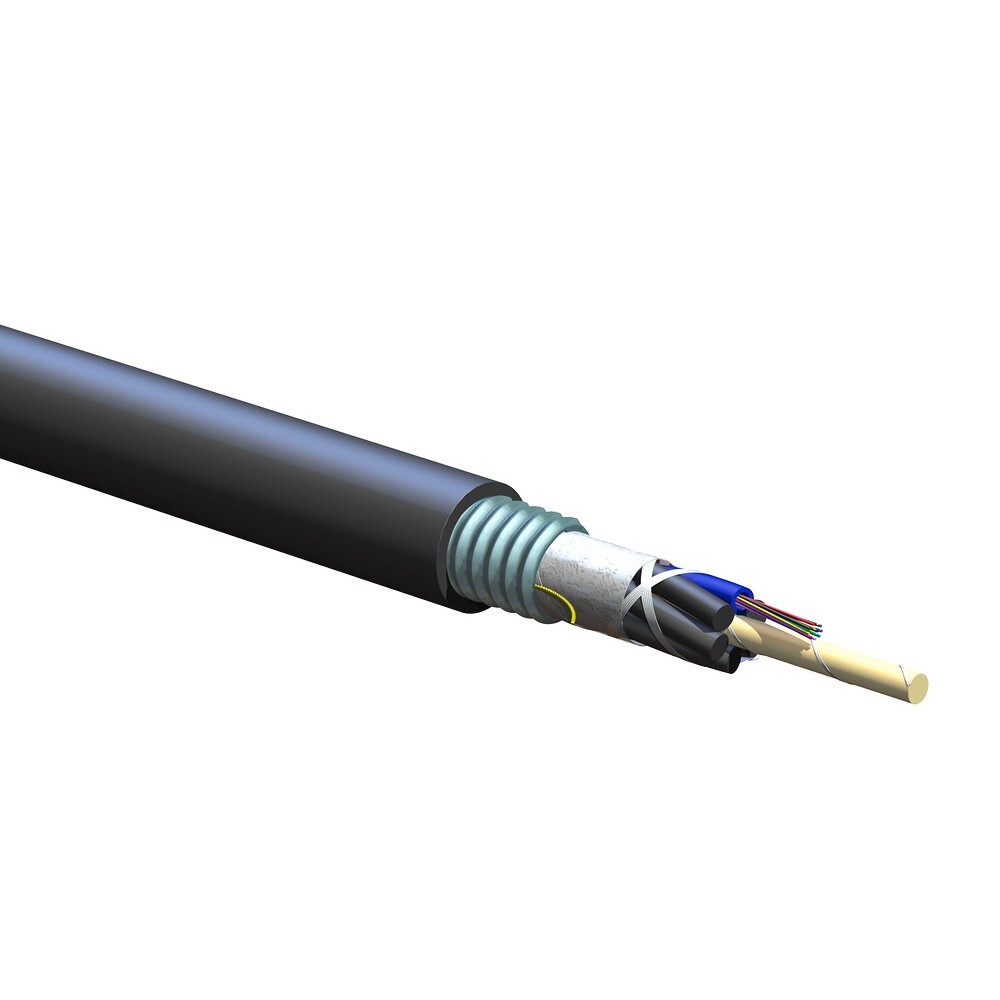

1000' 012TUC-T4180D20 12 Fiber 50 µm Multimode (OM3) Gel-Free Fiber Optic Cable Click Thumbnails to EnlargeDESCRIPTION

• Corning 012TUC-T4180D20 ALTOS Lite gel-free, single-jacket, single-armored cables are designed for campus backbones in direct-buried installations. The loose tube design provides stable and highly reliable transmission parameters for a variety of voice, data, video and imaging applications. These cables also provide high-fiber density within a given cable diameter while allowing flexibility to suit many system configurations. The single armored construction provides additional crush and rodent protection with a high-strength ripcord under the armor for easy stripping. Gel-free means the cables are fully Waterblocked using craft-friendly, Water-swellable materials which make cable access simple and require no clean up. The flexible, craft-friendly buffer tubes are easy to route in closures, and the SZ-stranded, loose tube design isolates fibers from installation and environmental rigors while allowing easy mid-span access. These cables have a medium density polyethylene jacket that is rugged, durable and easy to strip.

APPLICATION

• Aerial, Direct Buried, Duct

FEATURES AND BENEFITS

• Gel-free Waterblocking Technology ; Craft-friendly cable preparation
• Polyethylene jacket ; Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
• Corrugated Steel Tape Armor ; Provides rodent resistance for direct-buried applications

STANDARDS

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Common Installations: Outdoor lashed aerial, duct and direct-buried, indoor when installed according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-87-640

ENVIRONMENTAL CONDITIONS

• Temperature Range, Installation: -30°C to 70°C (-22°F to 158°F )
• Temperature Range, Operation: -40°C to 70°C (-40°F to 158°F )
• Temperature Range, Storage: -40°C to 70°C (-40°F to 158°F )

CABLE DESIGN

• Central Element: Dielectric
• Fiber Count: 12
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Tensile Strength Elements and/or Armoring - Layer 1: Corrugated Steel Tape Armor
• Buffer Tube Color: Blue
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Number of Active Tubes: 1
• Number of Filling Elements: 5
• Number of Tube Positions: 6
• Tape: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

MECHANICAL SPECIFICATIONS

• Maximum Tensile Strength, Long-Term: 890 N (200.08 lbf)
• Maximum Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Nominal Outer Diameter: 12.1 mm (0.48 in)
• Minimum Bend Diameter Installation: 364 mm (14.33 in)
• Minimum Bend Diameter Operation: 242 mm (9.53 in)

OPTICAL CHARACTERISTICS

• Fiber Code: T
• Fiber Type: Multimode
• Performance Option Code: 80
• Fiber Core Diameter: 50 µm
• Minimum Effective Modal Bandwidth (EMB): 2000 MHz*km / -
• Maximum Attenuation: 3.0 dB/km / 1.0 dB/km
• Minimum Overfilled Launch (OFL) Bandwidth: 1500 MHz*km / 500 MHz*km
• Serial 1 Gigabit Ethernet: 1000 MHz*km / 600 MHz*km
• Serial 10 Gigabit Ethernet: 300 MHz*km / -
• Wavelengths: 850 nm / 1300 nm
• Fiber Category: OM3

PRODUCT SPECIFICATIONSFiber Count 12Cable Type Loose TubeEnvironment OutdoorProduct Type Dielectric ArmorFiber Category 50 µm MM (OM3)Cable Geometry RoundWeight (Lbs/1000ft) 87Shipping
