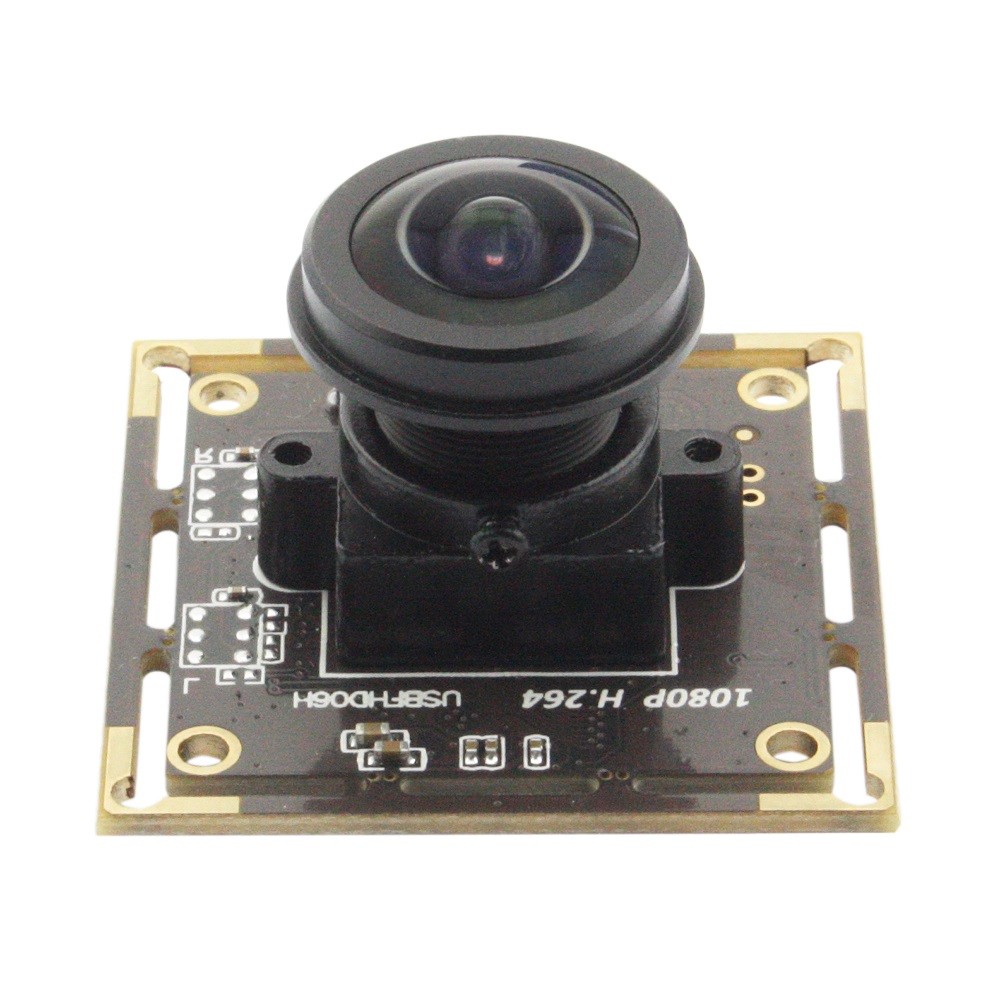

2MP 1080P Sony IMX322 H.264 Audio Video Record UVC Low Light USB Camera Module with 5MP 1.56mm Panoramic Fisheye lensKey Features:1. Ultra Low light Camera, Minimum illumination 0.01lux2、Support otg protocal3. High quality digital MIC, support single, dual channel4. Max resolution :1920*1080P ,2.0 Megapixel5. Highly advanced Sony IMX322 Sensor6. Compression format : H264 /MJPEG / YUV2(YUYV)7. White balance Function: Excellent indoor and outdoor effects, vivid colors8.Equiped with default 5mp 1.56mm wide angle lensSpecifications:
Model
ELP-USBFHD06H-L156
Sensor
Sony IMX322
Lens Size
1/2.9 inch
Pixel Size
12.8X11.6 mm
image area
2000(H)X1121(V) approx. 2.24 M pixels
Max. Resolution
1080P
Compression format
H264 /MJPEG / YUV2（YUYV）
Resolution & frame
H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps
S/N Ratio
42dB
Dynamic Range
86dB
Sensitivity
5.0V/lux-sec@550nm
Mini illumination
0. 01 lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
Free Drive Protocol
USB Video Class（UVC）
Support OTG Protocol
USB2.0 OTG
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter
Megapixel 1.56mm megapixel fisheye lens
Digital audio
High quality digital MIC, support single, dual channel
LED board power connector
Support 2P-2.0mm socket
Power supply
USB BUS POWER 4P-2.0mm socket
Power supply
DC5V
Operating Voltage
140mA~190mA
Working current
-10～70℃
Working temperature
-20～85℃
Board size /Weight
38X38mm（Compatible 32X32mm）/ about 30g
Cable
Standard 1M / optional 2M,3M,5M
Operating system request
Win7 Win8
Linux 2.6 or above
Android 4.0 or above
Applications:
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automaticvending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot lawenforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed videoshooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
USB Camera appllication:
