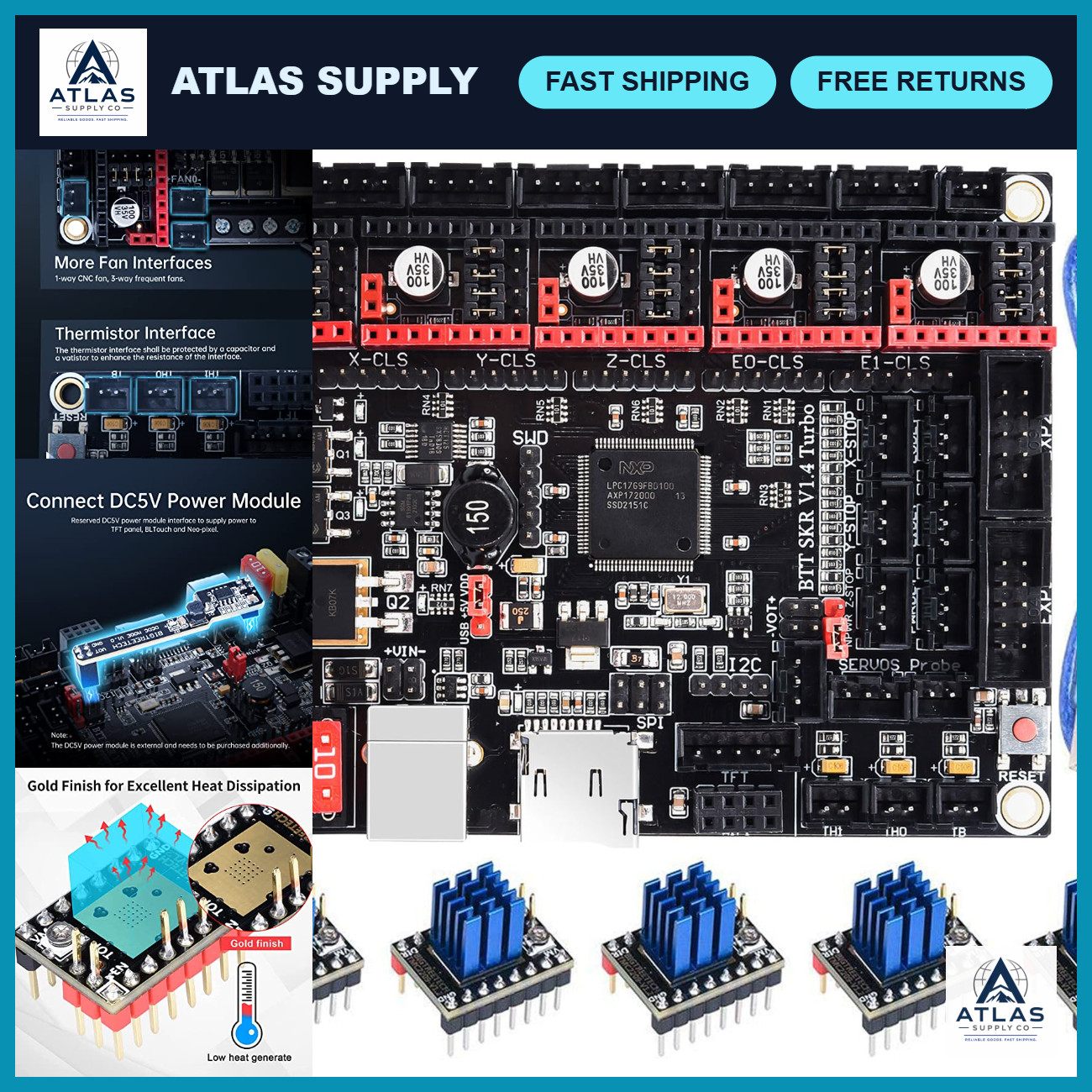

Enhanced Performance Control Board

Discover the power of advanced technology with this state-of-the-art control board designed for superior performance and versatility. Here are the key features:

Key Features:

• High-Performance Chip: Equipped with a 32-bit 120MHz ARM-class Cortex-M3 series LPC1769 main control chip for significantly improved performance.
• Power Supply Options: Easily supply power to TFT screens, BLtouch, and Neo-pixel by connecting an external DC5V power module.
• Flexible Interfaces: Comes with reserved I2C, SPI, and WIFI interfaces for effortless DIY projects.
• Simplified Wiring: On-board TMC-driven SPI and UART working modes with DIAG function pins simplify installation by eliminating complicated wiring; just remove or insert the jumper cap.

Superior Cooling Technology:

• Efficient Heat Management: The TMC2209 silent stepper driver generates lower heat compared to other drivers, featuring a large-area cooling position that reduces temperature by up to 30% during extended use.
• Passive Cooling Efficiency: After 10 hours of printing, the temperature remains at a comfortable 37℃.

Ultra-Silent Operation:

• StealthChop2 Technology: This ultra-silent motor driver IC employs stealthChop2 Mute technology, ensuring noiseless operation at low velocities.
• Dynamic Motion Control: With spreadCycle technology, enjoy highly dynamic motion while maintaining maximum efficiency and optimal motor torque.
• Specifications: Drive current of 2A, peak current of 2.8A, voltage range from 4.75V to 29V, and 256 subdivisions for precise control.

This control board is perfect for enthusiasts looking to enhance their projects with cutting-edge technology and reliable performance. Upgrade your setup today!

</
