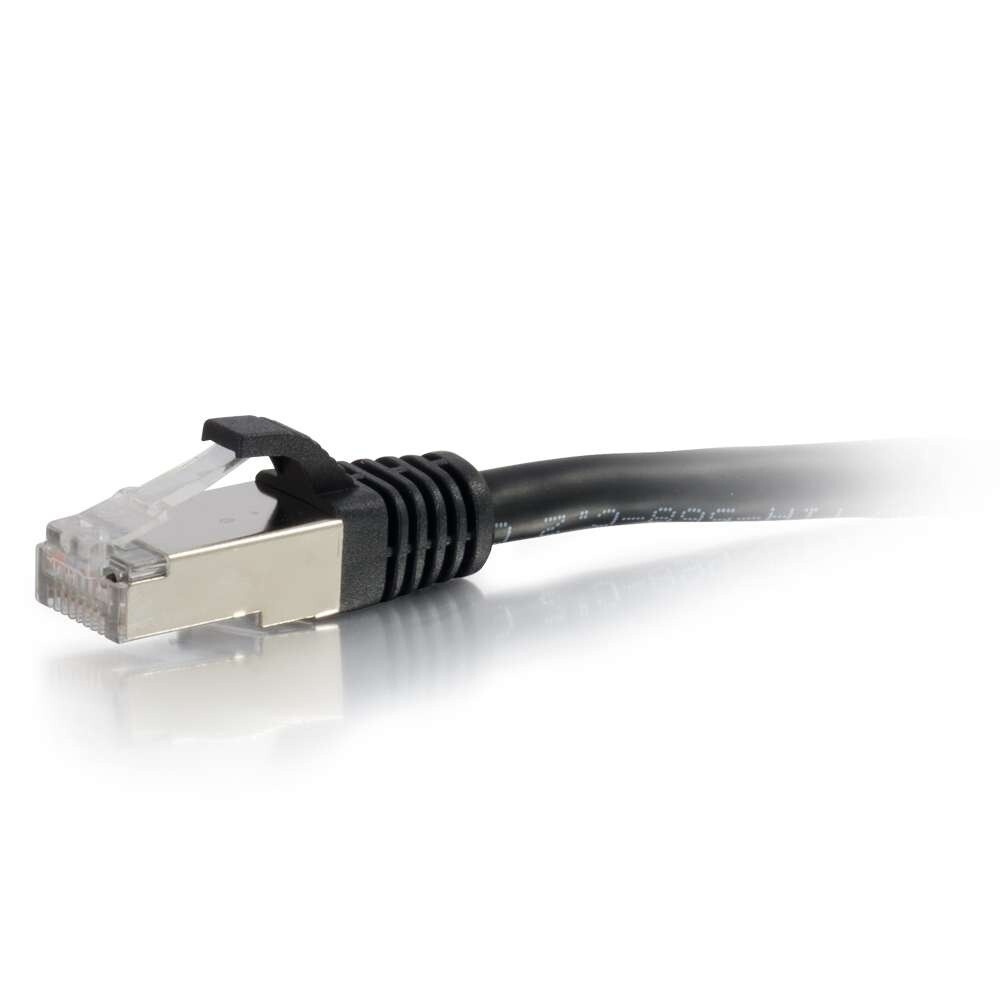

35ft (10.7m) Cat6 Snagless Shielded (STP) Ethernet Network Patch CableCat6 Shielded Patch Cable SeriesProtect a high speed network from noise and electromagnetic interference when connecting with our Snagless Shielded Cat6 patch cable. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.

Connector 1: (1) RJ-45 Male

Connector 2: (1) RJ-45 Male

Features and Benefits

Designed for network adapters, hubs, switches, routers, HDBaseT applications and more

• Supports 10 Gigabit networks up to 180ft for fast data transmission and maximum performance and supports 1 Gigabit up to 328ft

• Meets the ANSI/TIA-568-C.2 Cat6 requirements for supporting a wide variety of applications

• Constructed with shielded twisted pair (STP) wires, designed to protect a high speed network from noise and electromagnetic interference

• Snagless connector design for high density environments and protecting the RJ-45 connector's lock

• Available in a variety of colors to color-code a network

Specifications

Dimensions & Measurements

Characteristics & Features

Cat 6

Copper

Stranded

Additional Technical Specifications

Physical Characteristics

Cable type: Stranded SSTP

• Wiring scheme: 568B

• Temperature rating: 75°C

• Testing: ANSI/TIA 568 C.2 Cat6 component tested

Conductor (4 pair)

Conductor type: 26AWG (7/0.16) (bare copper)

• Insulation: FM-PE

Overall cable

Foil shield: Aluminum foil (100% coverage)

• Braided shield: Copper braid (40% coverage)

• Jacket: PVC

Connector

Connector Type: RJ-45 Male

• Shell: Nickel plated for shielding

• Housing: Polycarbonate,

• Contacts: 50m gold plated

• Hood: Molded Snagless PVC

• Dimension (L x W x H): 38.2 x 11.6 x 15.1

Certifications & Warranties

CE

NDAA 889

Prop 65

REACH

RoHS

TSCA
