• Reliable, economical and practical, widely used.
• Able to identify any contact media such as a finger ( with gloves or without ) , pens , credit cards and other input signals.
• Lead using FPC ( flexible printed circuit board material ) is smaller than the resistance of PET material used by other manufacturers value , good flexibility .
• Line insulation little visual effect, now we can do the minimum insulation point Φ 0.035mm, far ahead of other vendors .
• Touch screen surface shiny , matte, anti-glare variety of materials , matting , anti-Newton ring and process for selection

Specifications:

• Circuit level : 5V (DC), 35mA
• Surface hardness : 3H
• Light transmittance: bright surface material > 83% matte material : > 78%
• Life: 1 Percussion life:> 1 million times ( single point click ) 2 strokes life> 100,000 times
• Contact bounce time : <5ms
• Operating temperature : -10 °C~ +60 °C ( Humidity : 20 % ~ 85% , non-condensing water droplets )
• Storage temperature : -20 °C ~ +70 °C ( Humidity : 20% ~ 90% , non-condensing water droplets )
• Resolution: 2048 * 2048
• ​Dimensions: 165 (W) × 100 (H) × 5 (D) mm
• Linearity <1.5% ( special needs can be <1.0% )
• Operating pressure : 10g-100g ( tip or finger touch )
• Glass thickness : 0.7mm, 1.1mm, 1.8mm, 3.0mm
• Glass Category: chemically strengthened glass , riot glass.

Package Includes:

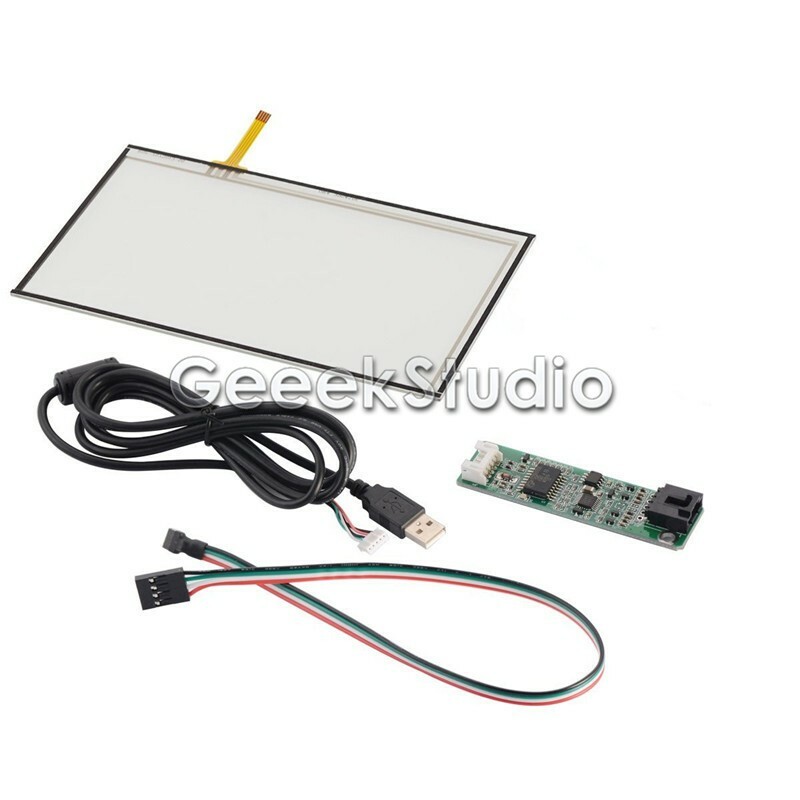

• 1 x Resistive touch screen for 7 inch LCD Monitor for Raspberry Pi
• 1 x Drive Module
• 1 x USB Cable
