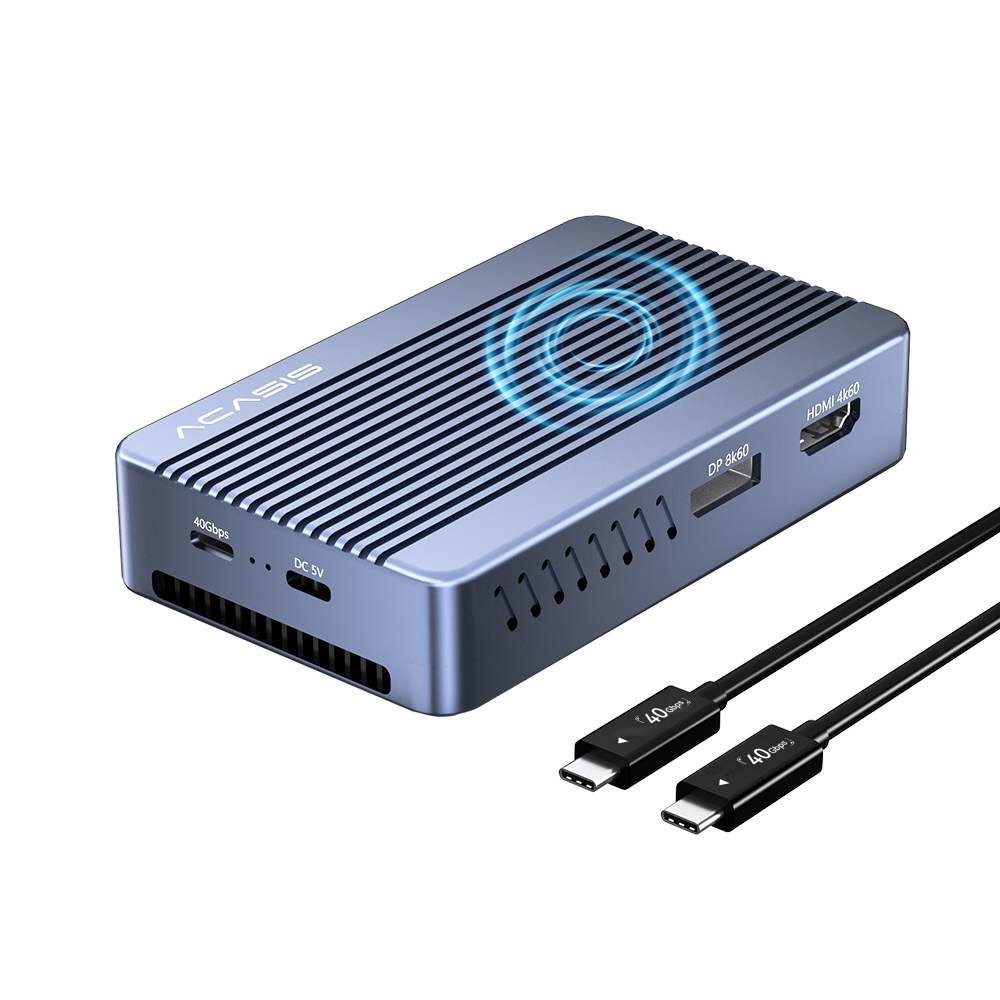

Interface Introduction
40Gbps interface (Data Input): [Data transmission] Supports USB Thunderbolt 3/4 USB 4 data transmission and is downward compatible with USB3.2/USB3.1/USB3.0/USB2.0;
[Audio and video transmission] Support DP Alt Mode 1.4.
DC 5V interface (Power Input): [Power] 5V/3A (Min); TBU405Plus can generally be used without being connected to a power source. If multiple interfaces are used, a minimum 5V/3A external power supply is required.
Two DP1.4 interfaces (Video Output): [audio and video transmission] supports DP1.4;
[Video resolution refresh rate] 7680*4320/60Hz (single plug 8K/60Hz dual plug 8K/60Hz 4K/60Hz).
TYPE-C interface (Data Output): [Data transmission] supports USB3.1, 10Gbps transmission rate, backward compatible with USB3.0/2.0.
Two USB-A interfaces (Data Output): [Data transmission] supports USB3.1, 10Gbps transmission rate, backward compatible with USB3.0/2.0.
M.2 (Data Output): Supports NVME M.2 SSD.Equipped with a true Thunderbolt 4 (USB4 compatible) core interface, it delivers up to 40Gbps bi-directional bandwidth—up to 8x faster than standard USB. Transfer large files in seconds and keep your creative workflow smooth without delays.Features an exclusive built-in NVMe M.2 SSD slot. Install a high-speed SSD directly into the dock to create a massive, portable, high-speed storage center for your project files, ready to use anytime. Integrates a rich array of high-speed ports, including a 10Gbps Type-C and two USB-A ports. Connect multiple peripherals like keyboards, mice, U disks, and external hard drives simultaneously, fully unleashing your host device's potential. Supports dual DP1.4 video output, easily delivering a stunning single 8K@60Hz or dual 4K@60Hz ultra-clear picture. Perfect for detailed graphic design, smooth video editing, and immersive multi-tasking.
