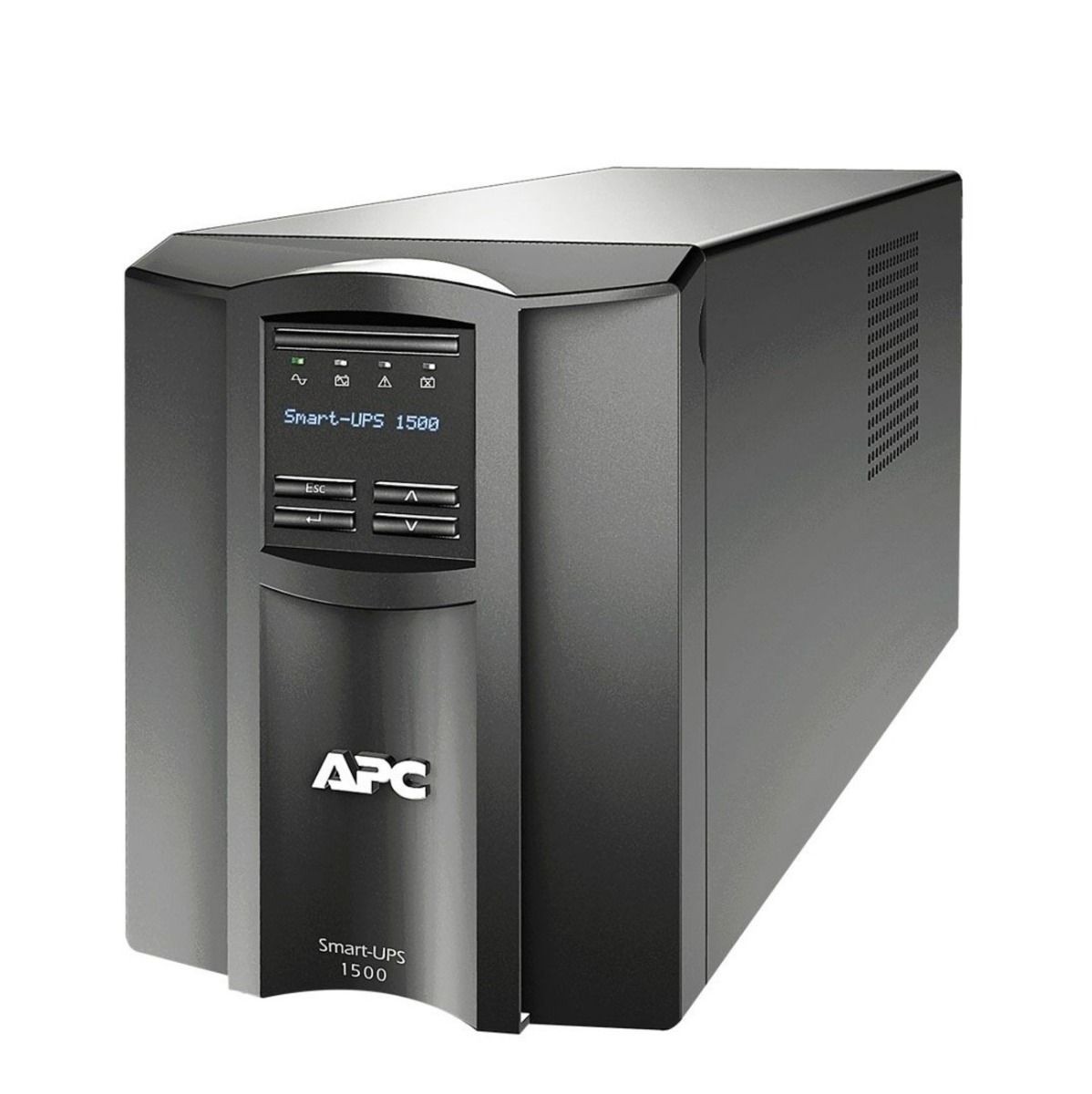

SMT1500 - APC Smart-UPS Specifications:Main:
Main Input Voltage
120V
Main Output Voltage
120V
Rated Power in W
1000W
Rated Power in VA
1440VA
Input Connection Type
NEMA 5-15P
Output Connection Type
(8) NEMA 5-15R
Number of Rack Unit
2U
Cable Length
6 ft (1.83 m)
Number of Cables
1
Battery Type
Lead-Acid Battery
General:
Number of Power Module Filled Slots
0
Number of Power Module Free Slots
0
Redundant
No
Physical:
Color
Black
Height
8.62 in (21.9 cm)
Width
6.73 in (17.1 cm)
Depth
17.28 in (43.9 cm)
Net Weight
53.11 lb(US) (24.09 kg)
Mounting Location
Front
Mounting Preference
No Preference
Mounting Mode
Not rack-mountable
Two Post Mountable
0
USB Compatible
Yes
Input:
Efficiency at Full Load
75 - 154 V adjustable
82 - 144 V
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Output:
Harmonic Distortion
Less than 5%
Maximum Configurable Power in VA
1440VA
Max Configurable Power (Watts)
1000W
Transfer Time
4ms typical : 8ms maximum
Topology
Line Interactive
Waveform Type
Sine wave
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz sync to mains
Conformance:
Product Certifications
CSA
Environmental:
Acoustic Level
45 dBA
Heat Dissipation
135 Btu/h
Operating Altitude
0- 10000 ft
Ambient Air Temperature for Operation
32 - 104 °F (0 - 40 °C)
Ambient Air Temperature for Storage
5- 113°F (-15- 45°C)
Storage Altitude
0 - 50000 ft (0.00 - 15240.00 m)
Relative Humidity
0 - 95 %
Storage Relative Humidity
0 - 95 %
Batteries & Runtime:
Extendable Run Time
0
Included Battery Modules
0
Battery Slots Empty
3h
RBC Quantity
1
Battery Life
3 - 5 years
Replacement Battery
RBC7
Battery Power in VAH
408 VAh runtime
Battery Charge Power (Watts)
136 W rated
Communications & Management:
Control Panel
Multi-function LCD status and control console
Emergency Power Off (EPO)
Optional
Free Slots
Surge Protection and Filtering:
Surge Energy Rating
459 J
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
