Why bought from us?
Dear customers, if you read our this page, please continue to have a glance at me, I think you will be glad to select our items. We test the motherboard, check the BIOS, enter to window OS, run CPU-Z and 3DMark, to ensure all the parts no defect or DOA. You can buy it at ease.
About the package:
We'll seal combo parts in an anti-electrostatic plastic bag with anti-blushing agent, then put it into a safe box.
About the warranty:
Our parts have 90 days warranty, please note the following reason we don't accept returns:
A. Bought a wrong item.
B. Ruin the item on purpose.
C. The parts burned by technical mistake when assemble the PC.
D. The parts didn't buy from us. All our parts have warranty label and hidden marks on them, to distinguish our items from others'.
Technical Tips:A.Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C. If the motherboard can't run correctly, please first check your CPUwhethercan be compatible with our motherboard, then check your video card orpower supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.(Please view the following picture)Packet Included:
1 x motherboard
1 x I/O back panel
2 x generic SATA II cablesParts Specification:

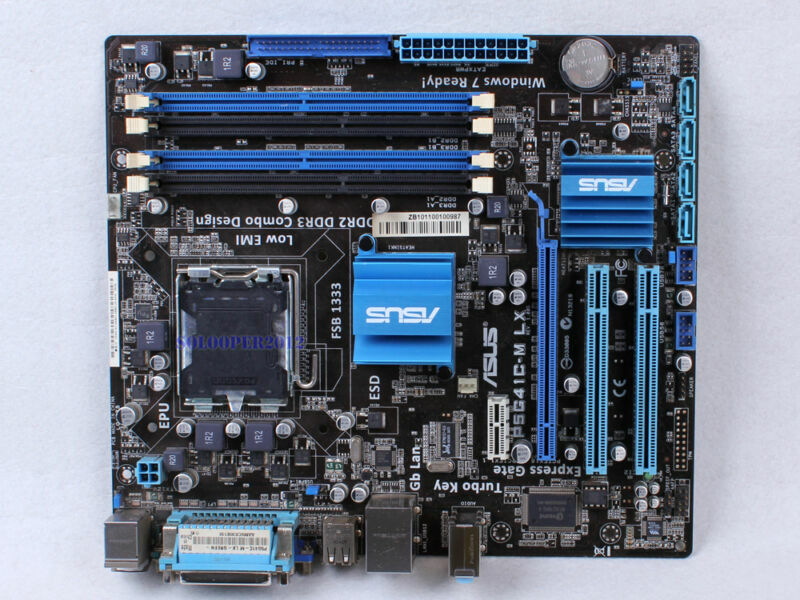

CPU
Intel® Socket 775 Core™2 Quad/Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm Multi-Core CPU
*Refer to ASUS official webstie for Intel CPU support list
Chipset
Intel® G41
ICH7
Front Side Bus
1333/1066/800 MHz
Memory
2 x DIMM, Max. 8 GB, DDR3 1333(O.C.)/1066/800 Non-ECC,Un-buffered Memory
2 x DIMM, max. 8 GB,DDR2 1066 (O.C.) / 800 / 667 MHz Non-ECC, Un-buffered memory
Dual Channel memory architecture
"*DDR3 and DDR2 memory can not be used simultaneously
Use DDR3 memory modules on the black slots and DDR2 memory modules on the blue slots."
** Refer to ASUS official webstie for Memory QVL (Qualify Vendor List)
*** When installingtotal memory of 4GB capacity or more, Windows® 32-bitoperation systemmay only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
VGA
Integrated Intel GMA X4500 graphics
Maximum shared memory of 1G
Supports RGB with max. resolution 2048 x 1536 (@75Hz)
Supports Microsoft® DirectX® 10
Storage
Southbridge
1 xUltraDMA 133/100/66
4 xSATA 3 Gb/s ports
LAN
PCIe Gb LAN
Audio
1708S 8-Channel AUDIO CODEC
*Choose the chassis with HD audio module in front panel to support 8-Channel audio output
Supports Jack-detect and Multi-Streaming teconologies
Supports S/PDIF out interface
IEEE 1394a
TI 1394 controller supports 2 x 1394a ports
USB
8 USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel)
ASUS Unique Features
ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS Q-Fan
ASUS Anti-Surge
ASUS EPU-L
ASUS Express Gate
Turbo Key
AI NET2
Overclocking Features
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz to 800MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
100% All High-quality Conductive Polymer Capacitors
Back Panel I/O Ports
1 x D-Sub
1 x Parallel port
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
3 x Audio jacks
Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x IDE connector
4 x SATA connectors
1 x High Definition front panel audio connector
1 x S/PDIF Out connector
1 x System Panel
1 x Internal Speaker connector
1 x CPU Fan connector
1 x chassis Fan connector
24-pin EATX power connector
4-pin ATX 12V Power connector
BIOS
8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5
Form Factor
uATX Form Factor
9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm )
