ASUS PRO WS WRX80E-SAGE SE WIFI - I/O Shield Included - Listing PRE-OWNED COMPUTER COMPONENT ASUS PRO WS WRX80E-SAGE SE WIFI Workstation Motherboard AMD sWRX8 · AMD WRX80 · EATX (EEB) · DDR4 IMPORTANT — PLEASE READ BEFORE PURCHASE

This is a pre-owned motherboard, not a new item. Some units may have undergone repair or component-level servicing. The board may show normal signs of previous use, including scratches, scuffs, dust or cleaning marks, discoloration, soldering/repair traces, or other cosmetic wear. Please purchase only if you accept these conditions.

PACKAGE CONFIRMATION: PRE-MOUNTED REAR I/O SHIELD IS INCLUDED Product Information Brand ASUS Model PRO WS WRX80E-SAGE SE WIFI CPU Socket AMD Socket sWRX8 Chipset AMD WRX80 Form Factor EATX (EEB), 30.98 × 33.02 cm (12.2 × 13 in). Verify exact case clearance and mounting points; a generic E-ATX label alone does not guarantee fit. Memory Type 8 × DDR4 DIMM slots, 8-channel, up to 2048GB according to ASUS; up to DDR4-3200. Supports qualified ECC/non-ECC UDIMM, RDIMM, 3DS RDIMM and LRDIMM configurations. Match CPU, BIOS and memory QVL; do not mix registered and unbuffered memory types. DDR5 is incompatible. Wireless Built-in 2×2 Wi-Fi 6 (2.4/5GHz) and Bluetooth 5.2. Wi-Fi antenna included. This is the original SE WIFI model, not the WIFI II model. BIOS Information 256 Mb UEFI AMI BIOS; USB BIOS FlashBack supported. Installed BIOS version is unknown. Verify exact CPU support and update requirements before purchase. BMC/IPMI credentials, firmware version and configuration have not been confirmed. CPU Support Compatible AMD Ryzen Threadripper PRO processors for sWRX8 listed by ASUS, subject to BIOS. Do not assume compatibility with non-PRO Threadripper, sTRX4, sTR5, AM4/AM5 Ryzen or EPYC processors merely from appearance or pin count. CPU and cooler are not included. Storage 3 × M.2 SSD slots (2242/2260/2280/22110), each PCIe 4.0 x4 or SATA; 8 × SATA 6Gb/s; 2 × U.2. Populating M.2_2 disables U.2_1; populating M.2_3 disables U.2_2. U.2-to-SATA breakout cables are not included. NVMe RAID support is configuration-dependent; do not assume all SATA controllers support the same RAID functions. Expansion 7 × PCIe 4.0 x16 slots, backward compatible with PCIe 3.0. Lane bifurcation supported for compatible configurations. The Hyper M.2 X16 Gen 4 add-in card is not included. Networking Intel X550-AT2 dual 10Gb Ethernet (2 RJ-45 ports), plus Wi-Fi 6 and Bluetooth. ASMB9-iKVM provides remote management; actual BMC configuration and testing must be confirmed for the supplied unit. Display Outputs No rear HDMI or DisplayPort. An internal VGA header is provided for management graphics; the VGA cable/bracket is not included. Use a compatible discrete graphics card for workstation graphics workloads. Do not treat USB-C ports as specified display outputs. Rear USB 10 rear USB ports: 1 × Type-C 20Gbps and 9 × 10Gbps (8 Type-A + 1 Type-C). Internal connectors support front USB-C 10Gbps ×1, USB 5Gbps ×2 and USB 2.0 ×4. Case ports/cables not included. Other Rear I/O & Audio 5 analog audio jacks and optical S/PDIF output; Realtek ALC4080 HD audio. Rear BIOS FlashBack and Clear CMOS buttons. No PS/2 port. Testing Status Pre-owned. Testing status may vary by unit; only functions expressly stated in the item-specific condition notes are represented as tested.

Specifications should be verified using the exact model number and the manufacturer's documentation. Testing covers only the functions explicitly stated in this listing.

Condition Details

• Used item: previously installed and used.
• Repair history: some boards may have been repaired or serviced and may show soldering, flux-cleaning, component-replacement, or other repair traces.
• Cosmetic condition: scratches, scuffs, marks, discoloration, light dust, and other signs of use may be present.
• Unit variation: when this listing has multiple units available, cosmetic condition, serial number, production date, board revision, and repair history may vary. The motherboard model supplied will match the model ordered unless a variation is clearly selected in the listing.
• Additional notes for this unit/batch: Some units may have repair, soldering, component-replacement, or cleaning traces and may show scratches, scuffs, discoloration, or other cosmetic wear. Exact cosmetic condition and repair history vary by unit.

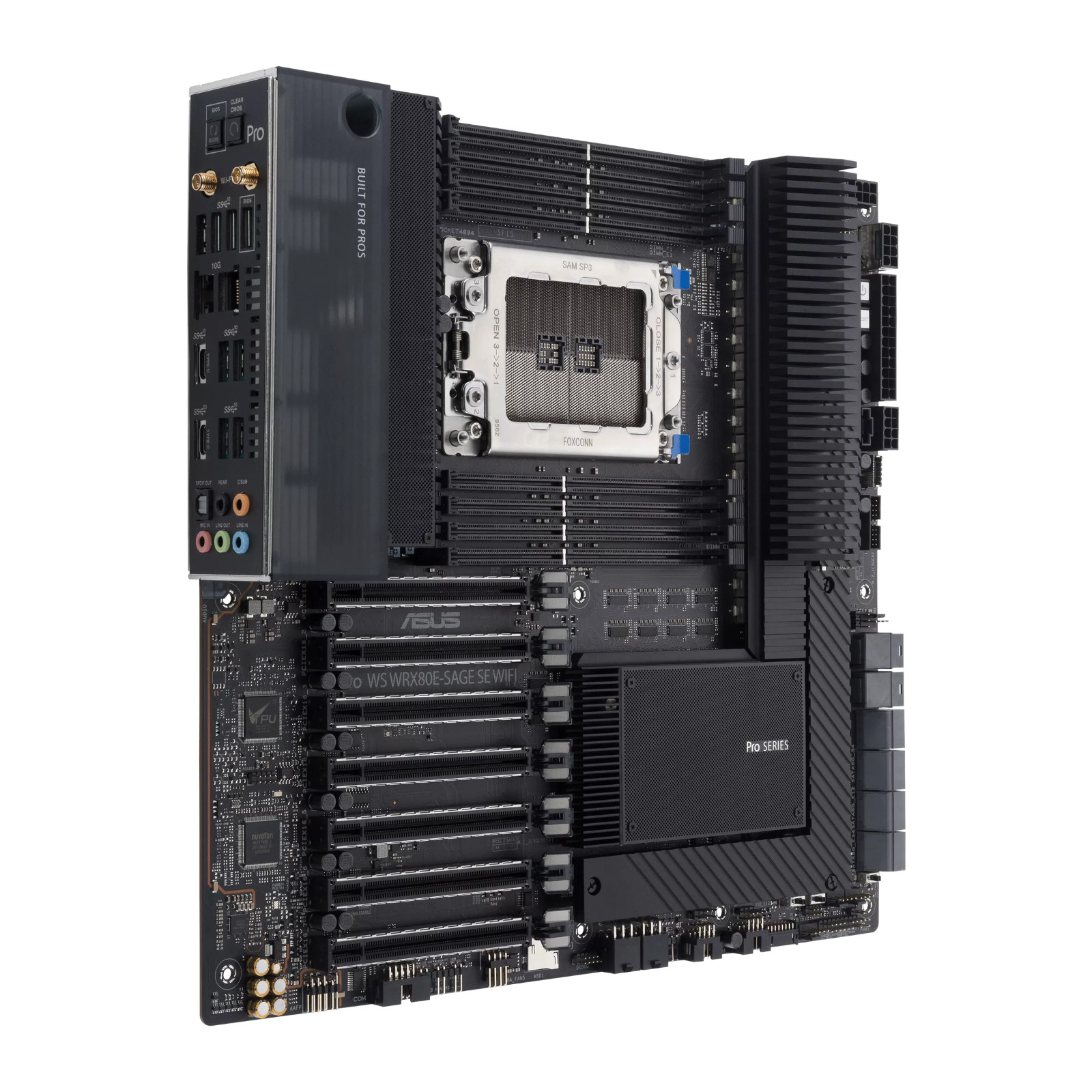

Photo Disclaimer The listing images are official ASUS product images downloaded from the ASUS website and are provided for model/layout reference only. They are not photographs of the exact motherboard you will receive. The actual item may differ in cosmetic condition, labels, serial number, production date, board revision, repair traces, and accessory appearance. Accessories displayed in an official image are not included unless they are expressly listed under “Package Contents” below. Package Contents Included

• 1 × ASUS PRO WS WRX80E-SAGE SE WIFI motherboard
• Pre-mounted rear I/O shield — INCLUDED
• Wi-Fi antenna — INCLUDED
• M.2 mounting screw(s)
• SATA cable(s)

Not Included Original retail box, Hyper M.2 X16 Gen 4 card, VGA cable/bracket, U.2/breakout cables, Q-connector, paper manual, driver disc/USB drive, CPU, CPU cooler, RAM, storage drive, graphics card, power supply, cables other than those listed above, and any other accessory not expressly listed as included.

Accessory brand, color, and appearance may vary. The pre-mounted rear I/O shield is included; no additional loose shield is supplied.

Compatibility — Buyer's Responsibility

A matching CPU socket alone does not guarantee compatibility. Before ordering, please verify all of the following:

• Exact motherboard model and, when relevant, PCB revision
• CPU model and required BIOS version
• RAM generation, type, capacity, speed, and module support
• Case form factor, mounting points, rear-I/O layout, and cooler clearance
• Power-supply connectors and wattage
• Storage, graphics card, operating system, and other device compatibility

If you are unsure, send us your CPU, RAM, case, and other key component models before purchase.

Installation Notice

• Professional installation and anti-static precautions are strongly recommended.
• Inspect the sWRX8 socket and contacts before installation. Follow the socket loading mechanism, screw sequence and torque requirements in the ASUS manual; use the correct CPU carrier and compatible cooler.
• Confirm component compatibility and power connections before switching on the system.
• Incorrect CPU installation, bent socket pins, electrostatic discharge, incorrect cabling, excess force, liquid/thermal-compound contamination, or improper BIOS procedures can damage the board or processor.
• Some supported CPUs may require a specific BIOS version or a BIOS update before the system can boot.

Packaging & Shipping

The motherboard has no original retail box. Packaging is for transport and is not original ASUS retail packaging. Please inspect the parcel and item promptly after delivery. If there is visible transit damage, keep all packaging and contact us with clear photos.

After-Sales & Returns

• Return eligibility and time limits follow the return policy displayed on this listing.
• If you experience a problem, please contact us first with the motherboard model, CPU, RAM, power supply, graphics card, diagnostic-light/code information, and clear photos or video. Many boot issues are caused by compatibility, BIOS, memory seating, or cabling.
• Please retain all product labels and serial-number labels. Any returned motherboard must be the same item that was supplied.
• Please return the item with all accessories received and pack it securely in anti-static and protective materials.

Please read the complete description and confirm compatibility before ordering.
Questions are welcome — please contact us through Messages.
