ASUS ROG MAXIMUS IX FORMULA Motherboard with Intel Z270 Chipset LGA 1151 Socket For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

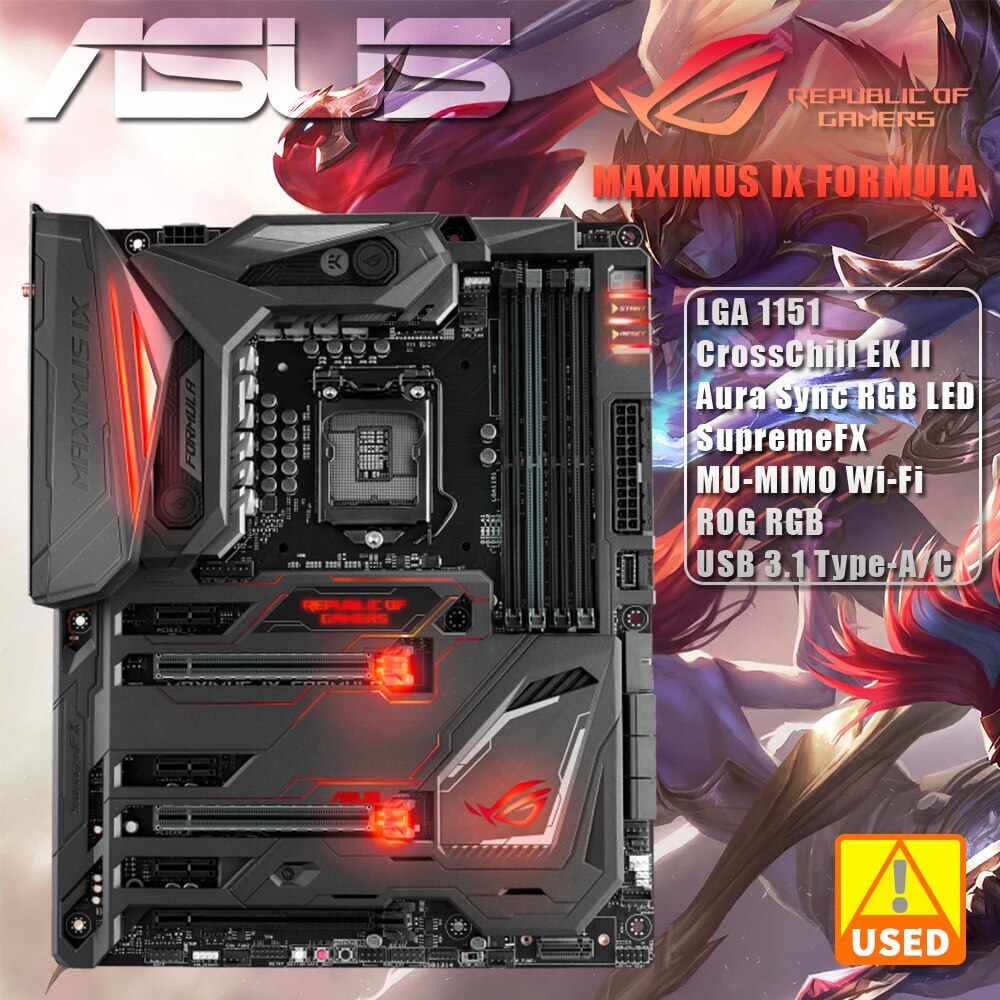

ASUS ROG MAXIMUS IX FORMULA Motherboard with Intel Z270 Chipset LGA 1151 Socket

Price: CN $229.99

Motherboard Chip

Integrated chip sound card/network card
Main Chipset Intel Z270
Chipset Description Using Intel Z270 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated SupremeFX S1220 8-channel sound chip
Network card chip Onboard Intel I219V Gigabit network card

Processor Specifications

CPU type 7th/6th generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor

Memory Specifications

Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual channel DDR4 memory

Storage Expansion

PCI-E Standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics card slot, 3×PCI-E X1 slot
Storage interface 2 x M.2 interface, 6 x SATA III interface

I/O interface

1×USB3.1 interface,
1×USB3.1 Type-A interface,
1×USB3.1 Type-C interface,
6×USB3.0 interface (2 built-in +4 backplane),
6×USB2.0 interface (2 built-in +4 backplane),
1×Display Port interface,
1 x HDMI interface,
1 x 8-pin power connector,
1 × 24-pin power connector,
1×RJ45 network interface,
1 x fiber optic interface,
5 x audio interface,
1×TPM interface,
3 × Chassis fan connectors,
1×CPU optional fan interface,
1 x Front Panel Audio Interface (AAFP),
1 x system panel interface,
1×W_PUMP+ interface,
1×AIO_water pump interface,
1×PS/2 keyboard and mouse general interface
