WAVLINK WiFi 6 Outdoor Access Point Series | AX3000 & AX1800 IP67 PoE Mesh

WAVLINK Outdoor WiFi Series

WiFi 6 Outdoor Access Points

AX3000 & AX1800 · Outdoor / Indoor · IP67 Weatherproof Enclosure · PoE Powered · High-Gain Antennas · Seamless Mesh Roaming

WiFi 6 Up to 3000Mbps IP67 Weatherproof PoE 802.3af/at Seamless Mesh High-Gain Antennas Model Comparison

Four outdoor-ready WAVLINK access points — all with an IP67 weatherproof enclosure, PoE power supply and seamless mesh roaming. Choose the antenna style, speed and form factor that match your deployment.

Table 1 · Wireless StandardIEEE 802.11 ax/ac/a/n/g/bTotal Speed573Mbps573Mbps573Mbps574Mbps5GHz Configuration4 × 12dBi built-in antennas4 × 8dBi fiberglass tube antennas6 × 7dBi built-in antennas4 × 8dBi fiberglass tube antennasAntenna TypeDirectional, built-inOmnidirectional, detachableOmnidirectional — 3 × 7dBi 2.4GHz + 3 × 7dBi 5GHzOmnidirectional, detachableTable 2 · Protection, Power & EnclosureIP67 waterproof / weatherproof housing with lightning protection designPoE Power Supply802.3AF/AT active PoE & passive PoE802.3AF/AT active PoE & passive PoE802.3af / 802.3at / 48V PoE with included PoE adapter802.3AF/AT active PoE & passive PoEOperating ModesMesh / AP / Router / Repeater / AP+RepeaterSeamless Mesh RoamingSupported — one network name & password across the whole coverageWireless SecurityWPA2-PSK, WPA2/WPA3-MIXWPA2-PSK, WPA2/WPA3-MIXWPA2-PSK, WPA2/WPA3-MIXWPA2-PSK, WPA3/WPA2-MIXWAN/LAN Port1 × Gigabit WAN/LAN Ethernet portProduct Size24 × 24 × 7cm
(9.4 × 9.4 × 2.8in)24 × 24 × 7cm
(9.4 × 9.4 × 2.8in) — without antennas17 × 17.3 × 5.1cm
(6.7 × 6.8 × 2in)24 × 24 × 7cm
(9.4 × 9.4 × 2.8in) — without antennasProduct Weight1050g / 37oz1109g / 39.1oz — without antennas552g / 19.5oz1109g / 39.1oz — without antennasWhich One Is Right for Your Project?

Match the deployment scenario with the model that is built for it.

WN573HP3Long-distance point-to-point / point-to-multipoint wireless transmission

4 × 12dBi directional antennas paired with high-power amplifiers deliver wireless data transmission over 3km / 1.9 miles (paired PtP or PtMP, tested in a barrier-free field). Ideal for linking two distant sites across open ground, and for large spaces such as factories, communities and streets.

WN573HX3Windy, corrosive or extreme-weather outdoor sites

4 × 8dBi fiberglass tube omnidirectional antennas offer high strength, corrosion resistance, strong wind resistance and a long service life. Combined with IP67 housing, 15kV ESD protection and 6kV lightning protection, it keeps working in rain, snow, wind and thunder.

WN588HX3Fast, lightweight installation with wide omni coverage

Only 552g / 19.5oz with a compact 17 × 17.3 × 5.1cm body. Built-in 6 × 7dBi omnidirectional antennas extend outdoor signal coverage up to 300m / 984ft, with mounting bracket design for easy pole or wall installation.

WN573HX1Reliable AX1800 WiFi 6 outdoor coverage

Dual band 1800Mbps (2.4GHz 574Mbps + 5GHz 1201Mbps) with 4 × 8dBi fiberglass tube omnidirectional antennas, IP67 housing and PoE power supply — a clean, all-round outdoor WiFi 6 solution for everyday long-range networking.

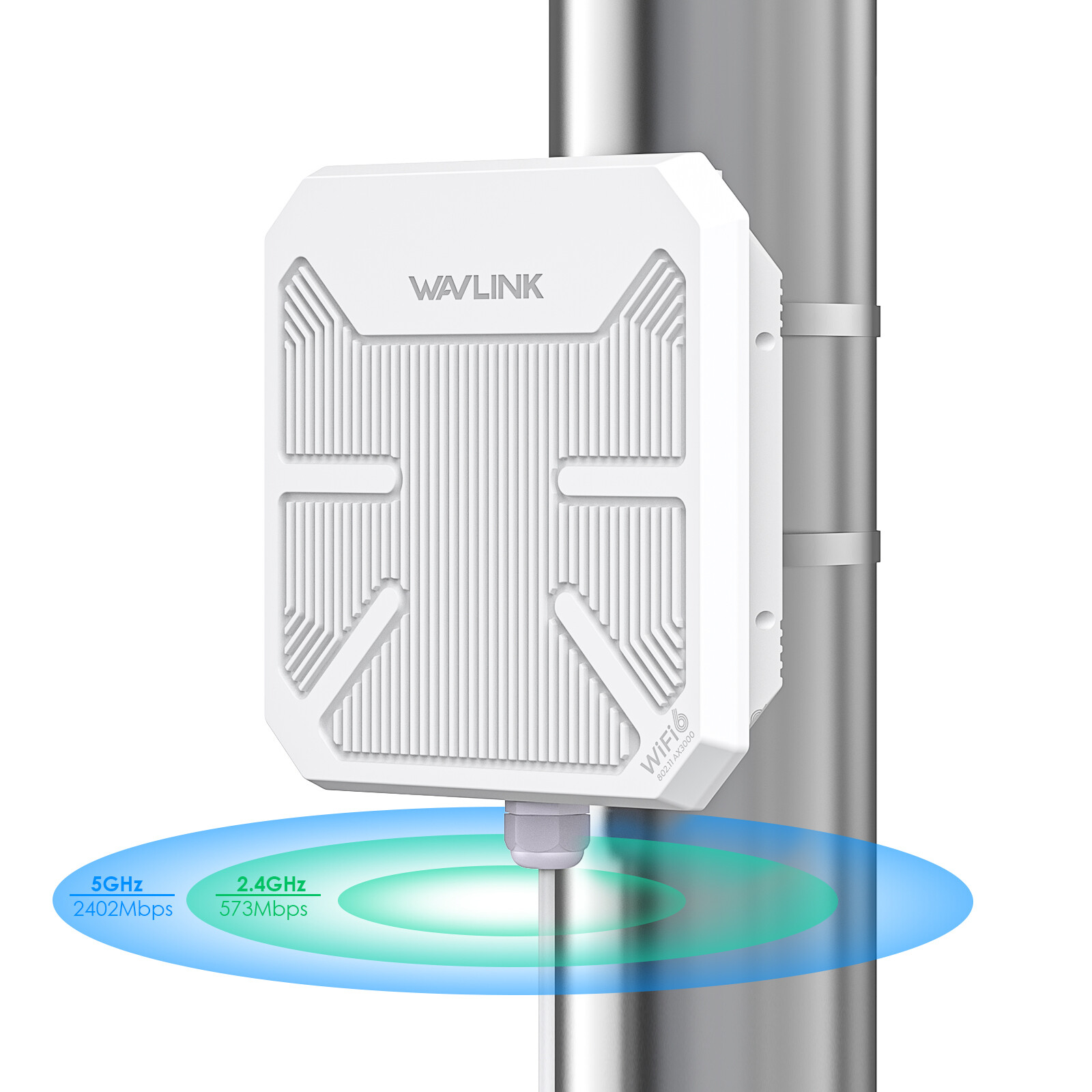

WN573HP3 · AX30003000Mbps · Outdoor/Indoor · Built-in 4 × 12dBi Antennas · White & Camouflage

WAVLINK WiFi 6 Outdoor Access Point, Dual Band 2.4G + 5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE / 4 × 12dBi High-gain Antennas / IP67 Weatherproof Enclosure / Signal Booster Amplifier

Features

• 🌐 Designed for Harsh Outdoor Conditions — IP67-rated waterproof housing that ensures continued operation in harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure a stable connection in harsh outdoor conditions. Note: please install the PoE converter indoors.
• 🌐 Enjoy True WiFi 6 Speed — The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HP3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 🌐 Optional PoE Power Supply — Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where a power outlet is not available. Note: Please use CAT5E or above cable and the length should not exceed 100m/328ft.
• 🌐 Seamless WiFi Roaming — The built-in 4 × 12dBi directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 🌐 Multiple Modes, Flexible Use — Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
• 🌐 3Km Wireless Data Transmission — Specially designed for outdoor use, ideal for long distance wireless data transmission over 3km/1.9miles (only for paired PtP or PtMP transmission), tested in the barrier-free field. Built-in 12dBi directional antennas can significantly improve the transmission and reception performance of the wireless signal.

WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere

WN573HP3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; 4 × built-in 12dBi high gain antennas provide better wireless performance and super fast transmission rates; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps + 5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 256 devices to be connected simultaneously in a wider range.

573Mbps on 2.4G & 2402Mbps on 5G

Dual band AX3000 provides a smoother online surfing experience and stronger anti-interference capability. The 2.4G band is commendable for web browsing and social media use, while the 5G band is ideal for video streaming or gaming.

Access More Devices

Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.

Specification

• Model: WL-WN573HP3
• Product Size: 24 × 24 × 7cm / 9.4 × 9.4 × 2.8in
• PoE Converter Size: 4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9in
• Length: Ethernet Cable — 100cm / 39.4in; Power Adapter Cable — 130cm / 51.2in
• Product Weight: 1050g / 37oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
• Antennas: 4 × 12dBi Directional Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Features

• Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with aggregated speeds up to 3000Mbps.
• Supports one WAN/LAN Ethernet Gigabit port.
• Complies with IEEE 802.11 ax/ac/n/g/a/b standards.
• Supports Router / AP / Range Extender / Mesh Router / Mesh Extender mode.
• Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
• Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
• Supports Fat AP Mode.
• Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips

• ① Please install the PoE converter indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Please install the product 2–3 meters above the ground for better performance.
• ④ Under Mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
• ⑤ The real performance of the product may vary in accordance with different environmental conditions.

In the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point
• 1 × 54V Power Adapter
• 4 × Cable Ties
• 1 × PoE Converter
• 2 × Silicone Pads
• 1 × Ethernet Cable
• 1 × Main Body Holder
• 1 × PWM M4×8×8MM Screw
• 1 × Wrench
• 6 × KA M4×25×6MM Screws
• 1 × Quick Start Guide
• 6 × Φ8×25MM Screw Plugs

WN573HX3 · AX30003000Mbps · Outdoor/Indoor · 4 × 8dBi Antennas · White & Camouflage

WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere

WN573HX3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 × 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps + 5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.

• ⭐ Designed for Harsh Outdoor Conditions — Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
• ⭐ Enjoy True WiFi 6 Speed — The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• ⭐ Optional PoE Power Supply — Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where a power outlet is not available. Note: Please use CAT5E or above cable and the length should not exceed 100m/328ft.
• ⭐ Seamless WiFi Roaming — The 4 × 8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• ⭐ Multiple Modes, Flexible Use — Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.

Fiberglass Tube High Gain Antennas

4 × 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure

Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply

Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

573Mbps on 2.4G & 2402Mbps on 5G

Dual band AX3000 provides a smoother online surfing experience and stronger anti-interference capability. The 2.4G band is commendable for web browsing and social media use, while the 5G band is ideal for video streaming or gaming.

High Power Amplifiers

Dual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low-noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi Safeguard

WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification

• Model: WL-WN573HX3
• Product Size (without antennas): 24 × 24 × 7cm / 9.4 × 9.4 × 2.8in
• PoE Converter Size: 4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9in
• Length: Antennas — 40cm / 15.7in; Ethernet Cable — 100cm / 39.4in; Power Adapter Cable — 130cm / 51.2in
• Product Weight (without antennas): 1109g / 39.1oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
• Antennas: 4 × 8dBi Omnidirectional Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Features

• Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with aggregated speeds up to 3000Mbps.
• Supports one WAN/LAN Ethernet Gigabit port.
• Complies with IEEE 802.11 ax/ac/n/g/a/b standards.
• Supports AP / Range Extender / Mesh Router / Mesh Extender mode.
• Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
• 2 × 8dBi 5GHz and 2 × 8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
• Glass tube antenna for high precision, corrosion resistance, long life, strong wind resistance.
• Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.

Warm Tips

• ① Please install the PoE converter indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Please install the product 2–3 meters above the ground for better performance.
• ④ Under Mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required) and WN573HX3.

In the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point
• 4 × Omni Antennas
• 4 × Cable Ties
• 1 × Ethernet Cable Connectors
• 1 × Quick Installation
• 1 × Wrench
• 2 × Silicone Pads
• Several Screws
• Passive PoE (Optional): 1 × 54V Power Adapter, 1 × PoE Converter, 1 × Ethernet Cable

WN588HX3 · AX30003000Mbps · Outdoor/Indoor · Built-in 6 × 7dBi Antennas · White & Camouflage

WAVLINK WiFi 6 Outdoor Access Point, Dual Band 2.4G + 5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE / 6 × 7dBi High-gain Antennas / IP67 Weatherproof Enclosure / Signal Booster Amplifier

• 🌐 Designed for Harsh Outdoor Conditions — IP67-rated waterproof housing that ensures continued operation in harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure a stable connection in harsh outdoor conditions. Note: please install the PoE converter indoors.
• 🌐 Enjoy True WiFi 6 Speed — The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 🌐 Seamless WiFi Roaming — The 6 × 7dBi omni-directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 🌐 Multiple Modes, Flexible Use — Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
• 🌐 Powered by PoE and Flexible Installation — Supporting 802.3af / 802.3at / 48V PoE Power over Ethernet with the included PoE adapter, this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.

573Mbps on 2.4G & 2402Mbps on 5G

Dual band AX3000 provides a smoother online surfing experience and stronger anti-interference capability. The 2.4G band is commendable for web browsing and social media use, while the 5G band is ideal for video streaming or gaming.

Access More Devices

Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.

Worry-Free WiFi Coverage

Enhanced by built-in high-power amplifiers and 6 × 7dBi omni-directional antennas to extend outdoor signal coverage up to 300m (984ft).

Specification

• Model: WL-WN588HX3
• Product Size: 17 × 17.3 × 5.1cm / 6.7 × 6.8 × 2in
• PoE Converter Size: 4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9in
• Length: Ethernet Cable — 100cm / 39.4in; Power Adapter Cable — 130cm / 51.2in
• Product Weight: 552g / 19.5oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
• Antennas: 6 × 7dBi Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Features

• Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with aggregated speeds up to 3000Mbps.
• Supports one WAN/LAN Ethernet Gigabit port.
• Complies with IEEE 802.11 ax/ac/n/g/a/b standards.
• 3 × 7dBi 5GHz and 3 × 7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
• Supports Router / AP / Range Extender / Mesh Router / Mesh Extender mode.
• Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
• Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
• Supports Fat AP Mode.
• Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips

• ① Please install the PoE converter indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Under Mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
• ④ The real performance of the product may vary in accordance with different environmental conditions.

In the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point
• 4 × Plastic Cable Ties
• 1 × Main Body Holder
• 6 × 7dBi Antennas
• 1 × Wrench
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable
• 1 × PWM M3×5×6MM Screw
• 6 × KA M3×20×5.2MM Screws
• 6 × Φ6.5×25MM Screw Plugs
• 1 × Quick Start Guide

WN573HX1 · AX18001800Mbps · WiFi 6 Outdoor Access Point

IP67 Weatherproof · PoE Powered · 4 × 8dBi Fiberglass Tube Omnidirectional Antennas · Seamless Mesh

Features

• ⭐ Designed for Harsh Outdoor Conditions — Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
• ⭐ Enjoy True WiFi 6 Speed — The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX1, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• ⭐ Optional PoE Power Supply — Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where a power outlet is not available. Note: Please use CAT5E or above cable and the length should not exceed 100m/328ft.
• ⭐ Seamless WiFi Roaming — The 4 × 8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• ⭐ Multiple Modes, Flexible Use — Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh Mode you can enjoy seamless WiFi with a single network name and password.

Fiberglass Tube High Gain Antennas

4 × 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure

Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply

Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

574Mbps on 2.4G & 1201Mbps on 5G

Dual band AX1800 provides a smoother online surfing experience and stronger anti-interference capability. The 2.4G band is commendable for web browsing and social media use, while the 5G band is ideal for video streaming or gaming.

High Power Amplifiers

Dual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low-noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi Safeguard

WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification

• Model: WL-WN573HX1
• Product Size (without antennas): 24 × 24 × 7cm / 9.4 × 9.4 × 2.8in
• PoE Converter Size: 4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9in
• Length: Antennas — 40cm / 15.7in; Ethernet Cable — 100cm / 39.4in; Power Adapter Cable — 130cm / 51.2in
• Product Weight (without antennas): 1109g / 39.1oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz (574Mbps) + 5GHz (1201Mbps)
• Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
• Antennas: 4 × 8dBi Omnidirectional Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Features

• Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
• Supports 802.3 AT/AF active PoE and passive PoE to supply power.
• Fiberglass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
• 4 × 8dBi detachable omnidirectional external antennas provide excellent wireless performance.
• Supports dual band (2.4G 574Mbps + 5G 1201Mbps) with combined speeds of up to 1800Mbps.
• Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
• Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
• Supports Mesh / AP / Router / Repeater / AP+Repeater modes.
• Encryption type: WPA2-PSK, WPA3/WPA2-MIX.

Warm Tips

• ① Please install the PoE converter indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Please install the product 2–3 meters above the ground for better performance.
• ④ Under Mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.

In the Box

• 1 × Wi-Fi 6 Outdoor Mesh Router/AP/Repeater
• 4 × Omni Antennas
• 4 × Cable Ties
• 1 × Ethernet Cable Connectors
• 1 × Quick Installation
• 1 × Wrench
• 2 × Silicone Pads
• Several Screws
• Passive PoE: 1 × 54V Power Adapter, 1 × PoE Converter, 1 × Ethernet Cable
