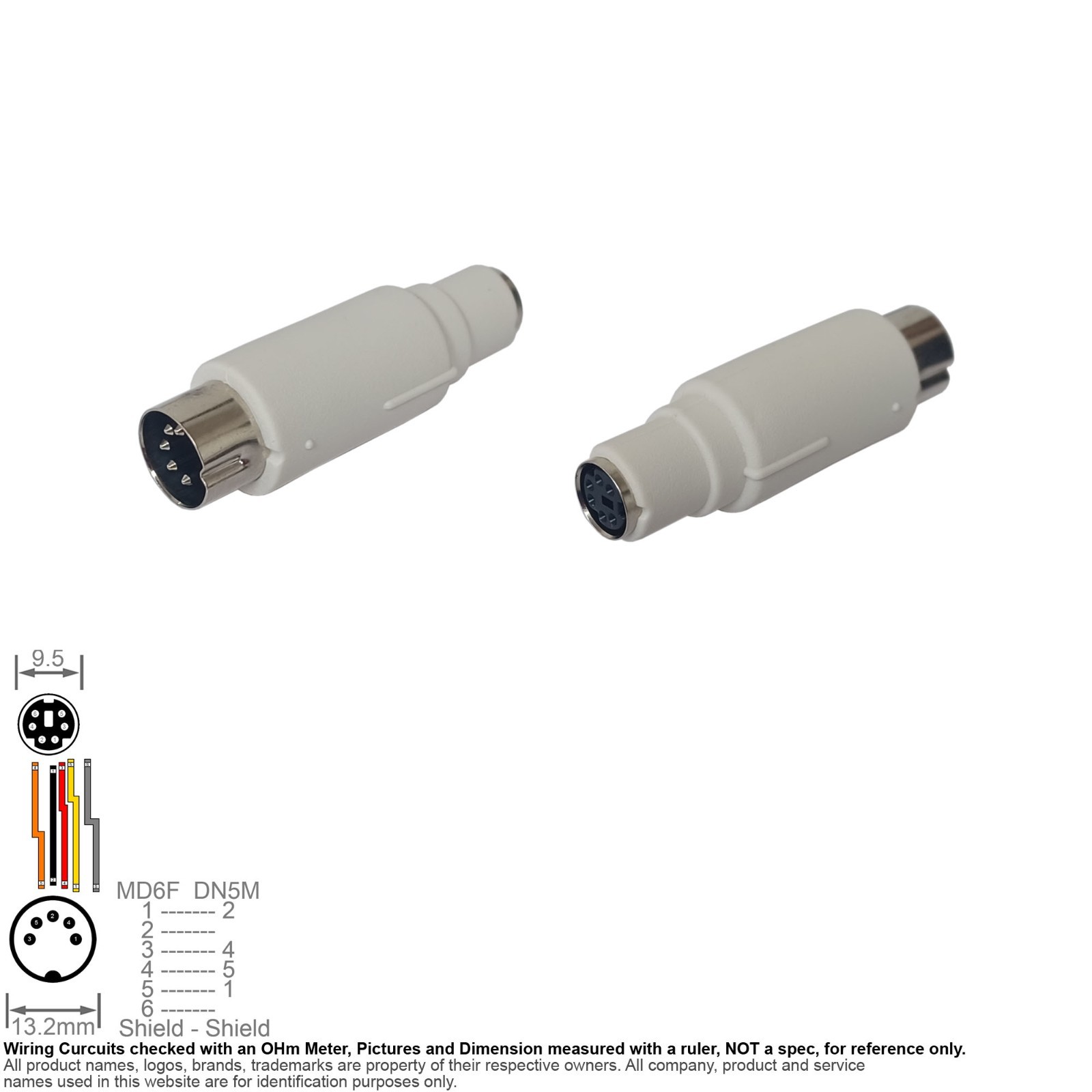

Adapter DIN 5-Pin Male Mini-Din 6-Pin Female AT Port System PS2 Keyboard
Price: US $2.70
Description: Adapter AT PS2 Connecting PS/2 Keyboard to IBM Compatible AT Port System DIN 5-Pin 180° Male Mini-DIN 6-Pin Female Unbranded Kentek P/N 60652 Molded Connector SKU 113636
Manufacturer: Not Specified
Brand or Distributor: Unbranded
Model: (& Compatible Models)
Kentek P/N 60652
Seller's SKU 113636
Connector:
DIN 5-Pin 180° Male
Mini-DIN 6-Pin Female
Pinout: (Wiring Circuits checked with an Ohm Meter, not a Spec, for reference only.)
MD6F 1 - DN5M 2
MD6F 2 - NC
MD6F 3 - DN5M 4
MD6F 4 - DN5M 5
MD6F 5 - DN5M 1
MD6F 6 - NC
Shield - Shield
Dimension:
DIN 5-Pin Shield O.D.: 13.2mm
Mini-DIN 6-Pin Shield O.D.: 9.5mm
Overall Length: 2.2-inch (0.7-inch Dia.)
Wire Length: NA
Weight: 06 oz (Estimated Shipping Weight: 3 oz)
Condition:(Subject to Availability)
SKU ______O -Open Box, Unused, may have signs of cosmetic wear.
Packaging:Non-Retail Packaging, in Unprinted Box or Plastic Bag.
For use with or pulled from: (for reference only)
Connecting a PS/2 Keyboard to an older legacy computer with a DIN 5-Pin AT Port
