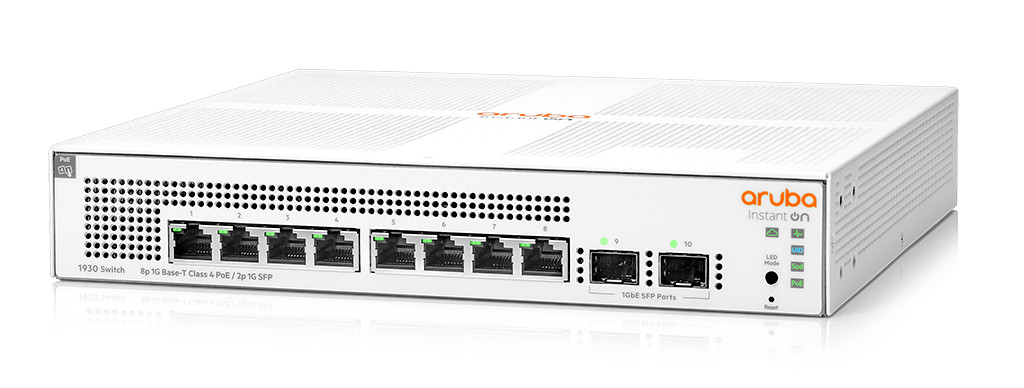

Aruba Instant On 1930 8G 2SFP 124W Switch (JL681A)
The Aruba Instant On 1930 8G 2SFP 124W (JL681A) is an 8GClass4 PoE 2SFP 124W Switch.
The Aruba Instant On 1930 switches features advanced,smart-managed, fixedconfiguration Gigabit switches designed for smallbusinesses that are easy-to-deploy and affordable. They’re made to handletoday’s bandwidth-heavy applications like voice and video conferencing,enabling consistent connectivity to enhance performance.
Aruba Instant On 1930 8G 2SFP 124W (JL681A) Key Features
Plug and play
8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports
2 SFP 1GbE ports
Smart-managed layer 2+ Ethernet
PoE to power APs and IoT devices
Security controls
Convenient mobile app
Easy set up and management
The Aruba Instant On mobile app allows you to set up,manage, and monitor Instant On switches and access points directly from yourphone. Within the app, you get guided step-by-step instructions to installInstant On devices to get your network up and running quickly – no technicalexpertise required. And cloud-based access allows you to access the networkfrom anywhere, at any time.
Automatic detection
Instant On automatically detects and applies highest(critical) PoE priority to Instant On Access Points for uninterrupted powerdelivery and wireless network access. Wired and wireless voice traffic isprioritized with high QoS priority end-to-end for optimal voice performance.
Non-Intrusive, aesthetic design
Aruba Instant On switches are designed to complement thesleek and clean look of the Instant On access points, and to blend discreetlyinto your site’s environment.
Customisable features
Customisable features include basic Layer 2 features likeVLANs and link aggregation, as well as advanced features such as Layer 3 IPv4static routing, ACLs, and Spanning Tree Protocols, and IPv6 Host mode.
Instant On mobe app optimises user experience
The Aruba Instant On mobile app provides common workflowsfor Instant On switches and access points making it easier to configure,monitor and manage your network remotely without the need for additionalhardware like cloud keys or VPN. You can also update firmware on your Instant Ondevices directly from the cloud whenever you want, from wherever you are.
Aruba Instant On 1930 8G 2SFP 124W (JL681A) TechnicalSpecification
I/O ports and slots
8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 1GbE ports
Physical Characteristics
Dimensions: 10(w) x 10(d) x 1.73(h) in (25.4 x 25.4 x 4.39cm) (1U height)
Weight: 7.21 lb (1.16 kg)
Memory and processor
ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packetbuffer: 1.5 MB
Performance
100 Mb Latency: < 4.7 uSec, packet size: 64B
1000 Mb Latency: < 3.0 uSec, packet size: 64B
Throughput (Mpps): 14.88 Mpps, packet size: 64B
Switching capacity: 20 Gbps
Routing Table size (# of static entries): 32 static entries
MAC Address table size (# of entries): 8,000 entries
Reliability MTBF (years): 95
Environment
Operating temperature: 32°F to 104°F (0°C to 40°C)
Operating relative humidity: 15% to 95% @ 104°F (40°C)
Nonoperating/Storage temperature: -40°F to 158°F (-40°C to70°C)
Nonoperating/Storage relative humidity: 15% to 95% @ 140°F(60°C)
Altitude: up to 10,000 ft (3 km)
Acoustic: Power: 0 dB no fan
Electrical Characteristics
Frequency: 50/60 Hz
AC voltage: 100 - 127/200 - 240 VAC
Current: 0.8/1.6 A
Maximum power rating: 150.2 W
Idle power: 11.7 W
PoE power: 124 W Class 4 PoE
Power supply: Internal power supply
Safety
UL 60950-1
IEC 60950-1
EN 60950-1
CAN/CSA-C22.2 No. 60950-1
EN 60825-1 UL 62368-1 Ed. 2
IEC 62368-1 Ed. 2
EN 62368-1:2014
Emissions
VCCI-CISPR 32, Class A
CNS 13438
ICES-003 Issue 6 Class A
FCC CFR 47 Part 15, Class A
EN 55032: 2015 +AC:2016/CISPR-32, Class A
