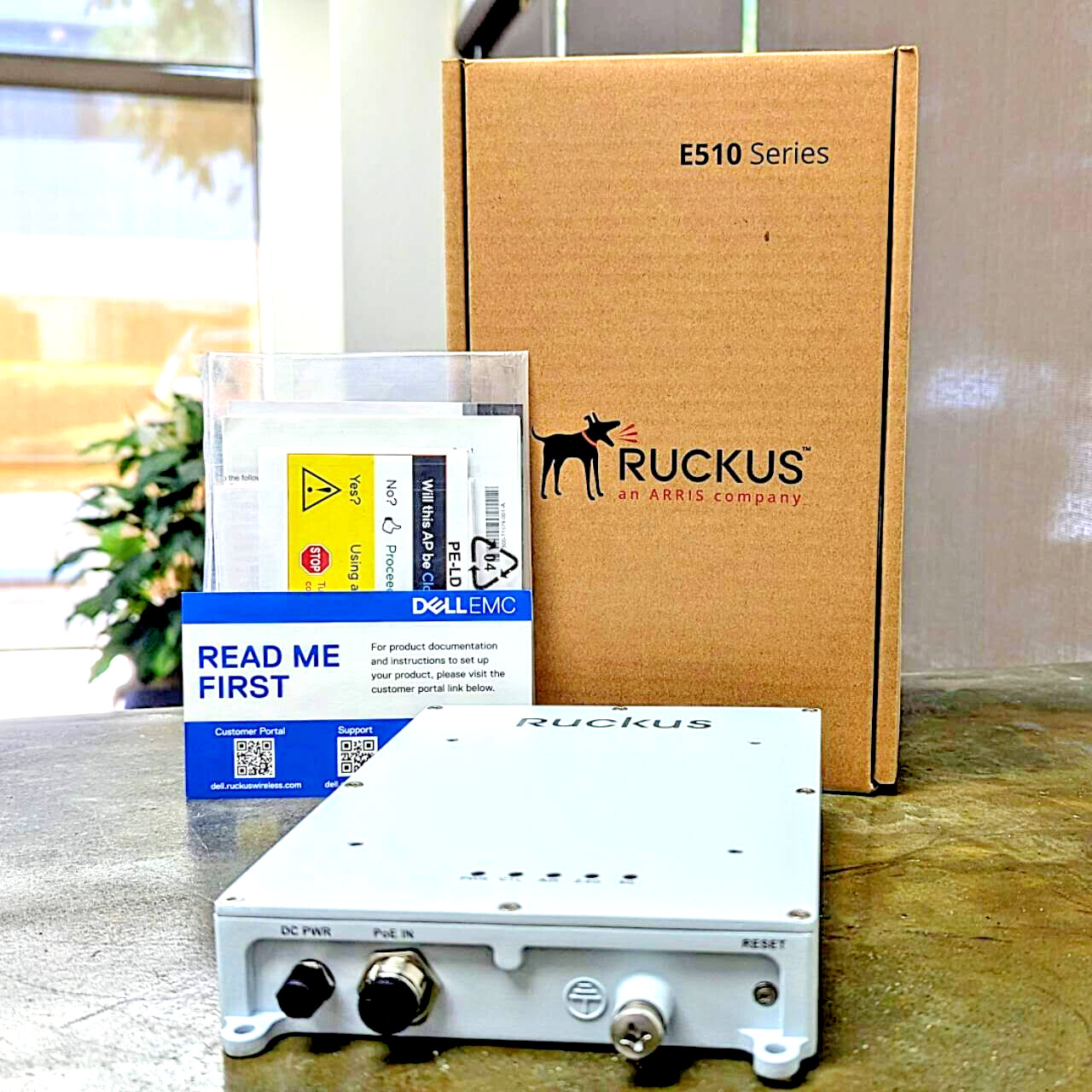

BRAND NEW RUCKUS E510 Outdoor Weather proof Wireless Access Point AP DP/N 0VV983

The Ruckus E510 Outdoor Weatherproof Wireless Access Point (AP), DP/N 0VV983, is a compact yet powerful solution built for demanding outdoor environments. Designed with enterprise-grade durability, it delivers fast, reliable Wi-Fi performance even under harsh weather conditions. Featuring advanced antenna technology and smart adaptive features, the E510 ensures stable connectivity for high-density outdoor spaces such as public venues, transportation hubs, campuses, and industrial facilities. Its rugged, discreet form factor allows flexible installation, making it ideal for both commercial and mission-critical outdoor deployments.

Top Features:

• Weatherproof, Rugged Design – Built to withstand extreme outdoor conditions, including rain, heat, and dust.

• High-Performance Wi-Fi – Delivers fast, stable wireless connectivity for high-density environments.

• BeamFlex+ Antenna Technology – Adaptive antenna system optimizes signal paths for stronger, more reliable coverage.

• Flexible Mounting Options – Compact and sleek form factor allows installation on poles, walls, ceilings, or vehicles.

• SmartMesh Networking – Supports seamless mesh deployments without needing Ethernet backhaul.

• Enterprise-Grade Security – Advanced encryption and authentication features protect network integrity.

• Dual-Band 2.4 GHz & 5 GHz Operation – Ensures optimal speed and performance for a wide range of devices.

📍 Typical Application / Deployment Cases

Because of its rugged design, flexible antenna placement, and strong Wi-Fi performance, the E510 is widely used in these settings:

• Public transit hubs & vehicles — e.g. inside shelters, signage, kiosks at bus stops, train stations; or even inside buses/trains when antenna is separated from the RF module.

• Smart-city / municipal Wi-Fi deployments — integration into street furniture, light poles, park benches, public benches, street signage, to provide city-wide public Wi-Fi.

• Outdoor venues and campuses — stadiums, amphitheaters, parks, university grounds, large outdoor public spaces where many users connect at once.

• Kiosks, signage, ad-display enclosures — because the radio module is compact and antenna separate, the AP can be hidden inside signage, vending machines, kiosks, or displays while still providing robust Wi-Fi via the external antenna.

• Industrial / harsh-environment deployments — outdoors, high-humidity or temperature extremes (e.g. warehouses, manufacturing yards, outdoor storage), thanks to IP-67 and wide operating temperature range.

• Mesh-based deployments — when Ethernet cabling is impractical (e.g. historic districts, temporary events, remote areas), using SmartMesh to interconnect multiple E510 units and cover wide areas.

✅ Key SpecificationsCategoryDetailsWi-Fi StandardsIEEE 802.11a / b / g / n / ac Wave 2Peak PHY Data Rates2.4 GHz: up to 300 Mbps; 5 GHz: up to 867 MbpsMIMO / Spatial Streams2×2 SU-MIMO and 2×2 MU-MIMO (2 spatial streams)Channel Support2.4 GHz channels 1–13; 5 GHz channels 36–64, 100–144, 149–165 Simultaneous Dual-BandYes — both 2.4 GHz and 5 GHz radios at the same time Client CapacityUp to 512 clients per AP SSIDs SupportedUp to 31 per AAntennaExternal adaptive antenna with BeamFlex+ — supports up to 64 unique antenna patterns, with up to ~3 dBi antenna gain Transmit PowerUp to 22 dBm (aggregate across MIMO chains) on both 2.4 GHz and 5 GHz.RF Sensitivity (min receive)~ –101 dBm ChannelizationSupports 20, 40, 80 MHz channel widths Security & FeaturesWPA-PSK, WPA2/AES, 802.11i; WIPS/WIDS; QoS (WMM); Tx Beamforming; LDPC, STBC; 802.11r/k/v; Hotspot/Hotspot 2.0; Captive Portal; dynamic PSK; plus support for additional services such as IoT, captive-portal, analytics. Networking & ManagementWorks with controller platforms (e.g. SmartZone or ZoneDirector), or standalone; supports VLAN (802.1Q), 802.1x, L2TP/GRE/Soft-GRE tunnels; IPv4/IPv6. Mesh SupportYes — supports SmartMesh wireless mesh (self-healing mesh networks) for deployments without full Ethernet run. Physical / EnvironmentalIP-67 weatherproof rating; operating temperature from –40°C to +70°C; humidity up to 95% non-condensing. Mounting OptionsWall, pole (1"–2.5”), cabinets, DIN-rail, various “street-furniture” mounting (e.g. benches, light poles), kiosks, signage, etc. Interfaces1 × 1 GbE (M12 connector), 1 × USB 2.0 (Type A), optionally powered via PoE (802.3af) or 12–48 V DC
🎯 Why E510 Is Especially Useful for Outdoor / Public Deployments

• The split design (small RF module + separate antenna) gives great flexibility — you can hide the radio and just expose a low-profile antenna where needed (e.g. on a pole, behind signage), which helps with aesthetics and vandal resistance.

• The adaptive BeamFlex+ antennas dynamically steer signal per device, improving coverage and reducing interference — particularly helpful in high-density or variable outdoor environments.

• Tough environmental resistance (IP-67, wide temperature range) plus flexible mounting makes it usable in extreme outdoor conditions or unusual mounting points (light poles, street furniture).

• Capacity to serve hundreds of simultaneous clients — vital where many users congregate (stadiums, transit, campuses).
