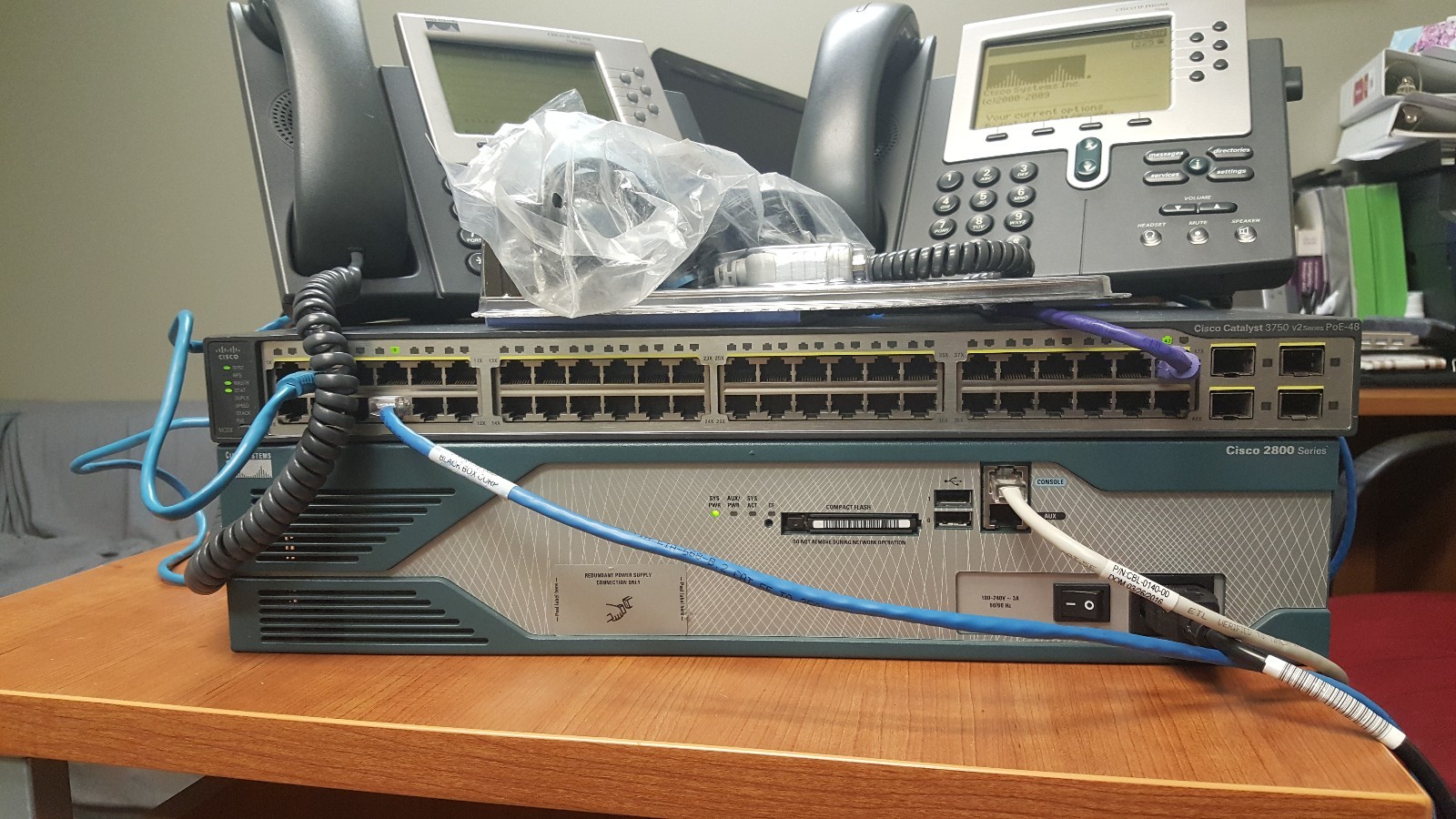

CISCO CCNA CCNP CCIE Collaboration LAB KIT
·Thebest Cisco collaboration lab kit that covers Cisco Call Manager Express CUCMEall topics.
·Practiceon both SIP and SCCP phone.
· Installeda PVDM for conference and transcoder
·· IncludedCME lab workbook with lab examples.
Lab KIT Includes
·1x Cisco 2821 Router version (C2800NM-ADVENTERPRISEK9-M), Version 15.1
·512MB RAM 256 MB flash card OR
1 x Cisco 3825 Router version, Version 15.x512 MB RAM 256 MB flash card
·1x PVDM2 – 32
·1x Cisco 3750-24 Version 2 Switch POE Version 15.0(2) SE7
·1x Cisco 79xx SCCP phone
·1x Cisco 79xx SIP phone
·ConsoleCable
·2x Power Cords
·3x Straight Cables
·1x Serial to USB converter
Switch#sh ver
Cisco IOS Software, C3750 Software(C3750-IPSERVICESK9-M), Version 15.0(2)SE7, RELEASE SOFTWARE (fc1)
Copyright (c) 1986-2014 by Cisco Systems, Inc.
Compiled Thu 23-Oct-14 14:36 by prod_rel_team
ROM: Bootstrap program is C3750 boot loader
BOOTLDR: C3750 Boot Loader (C3750-HBOOT-M) Version12.2(50r)SE, RELEASE SOFTWARE (fc1)
Switch uptime is 2 hours, 21 minutes
System returned to ROM by power-on
System image file class="MsoNoSpacing">
This product contains cryptographic features and issubject to United
States and local country laws governing import, export,transfer and
use. Delivery of Cisco cryptographic products does notimply
third-party authority to import, export, distribute oruse encryption.
Importers, exporters, distributors and users areresponsible for
compliance with U.S. and local country laws. By usingthis product you
agree to comply with applicable laws and regulations. Ifyou are unable
to comply with U.S. and local laws, return this productimmediately.
A summary of U.S. laws governing Cisco cryptographicproducts may be found at:
If you require further assistance please contact us bysending email to
cisco WS-C3750V2-48PS (PowerPC405) processor (revisionH0) with 131072K bytes of memory.
Processor board ID FDO1436X01Y
Last reset from power-on
1 Virtual Ethernet interface
FastEthernet interfaces
Gigabit Ethernet interfaces
The password-recovery mechanism is enabled.
512K bytes of flash-simulated non-volatile configurationmemory.
Base ethernet MAC Address : B4:A4:E3:5B:A4:80
Motherboard assembly number : 73-11705-12
Power supply part number : 341-0266-03
Motherboard serial number : FDO14360JCG
Power supply serial number : LIT14330YK8
Model revision number : H0
Motherboard revision number : B0
Model number : WS-C3750V2-24PS-S
System serial number : FDO1436X01Y
Top Assembly Part Number : 800-31041-05
Top Assembly Revision Number : C0
Version ID: V05
CLEI Code Number : COMP600ARA
Hardware Board Revision Number : 0x03
Switch Ports Model SW Version SW Image
------ ----- ----- ---------- ----------
* 1 26 WS-C3750V2-24PS 15.0(2)SE7 C3750-IPSERVICESK9-M
Configuration register is 0xF
Switch#sh env all
FAN is OK
SYSTEM TEMPERATURE is OK
System Temperature Value: 35 Degree Celsius
System Temperature State: GREEN
Yellow Threshold : 66 Degree Celsius
Red Threshold :76 Degree Celsius
SW PID Serial# Status Sys Pwr PoE PwrWatts
1 Built-in Good
SW Status RPS Name RPS Serial# RPS Port#
Switch#sh post
Stored system POST messages:
Switch 1
---------
POST: CPU MIC register Tests : Begin
POST: CPU MIC register Tests : End, Status Passed
POST: PortASIC Memory Tests : Begin
POST: PortASIC Memory Tests : End, Status Passed
POST: CPU MIC interface Loopback Tests : Begin
POST: CPU MIC interface Loopback Tests : End, StatusPassed
POST: PortASIC RingLoopback Tests : Begin
POST: PortASIC RingLoopback Tests : End, Status Passed
POST: Inline Power Controller Tests : Begin
POST: Inline Power Controller Tests : End, Status Passed
POST: PortASIC CAM Subsystem Tests : Begin
POST: PortASIC CAM Subsystem Tests : End, Status Passed
POST: PortASIC Stack Port Loopback Tests : Begin
POST: PortASIC Stack Port Loopback Tests : End, StatusPassed
POST: PortASIC Port Loopback Tests : Begin
POST: PortASIC Port Loopback Tests : End, Status Passed
Switch#sh powerinline
Module Available UsedRemaining
(Watts) (Watts) (Watts)
--------------- -------- ---------
1370.0 12.6 357.4
Interface AdminOper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------------ ----
Fa1/0/1 auto off0.0 n/a n/a 15.4
Fa1/0/2 auto off0.0 n/a n/a 15.4
Fa1/0/3 auto on6.3 IP Phone 7961 215.4
Fa1/0/4 auto off0.0 n/a n/a 15.4
Fa1/0/5 auto off0.0 n/a n/a 15.4
Fa1/0/6 auto off0.0 n/a n/a 15.4
Fa1/0/7 auto off0.0 n/a n/a 15.4
Fa1/0/8 auto on6.3 IP Phone 7960 n/a15.4
Fa1/0/9 auto off0.0 n/a n/a 15.4
Fa1/0/10 auto off0.0 n/a n/a15.4
Fa1/0/11 auto off0.0 n/a n/a 15.4
Fa1/0/12 auto off0.0 n/a n/a 15.4
Fa1/0/13 auto off0.0 n/a n/a 15.4
Fa1/0/14 auto off0.0 n/a n/a 15.4
Fa1/0/15 auto off0.0 n/a n/a 15.4
Interface AdminOper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------------ ----
Fa1/0/16 auto off0.0 n/a n/a 15.4
Fa1/0/17 auto off0.0 n/a n/a 15.4
Fa1/0/18 auto off0.0 n/a n/a 15.4
Fa1/0/19 auto off0.0 n/a n/a15.4
Fa1/0/20 auto off0.0 n/a n/a 15.4
Fa1/0/21 auto off0.0 n/a n/a 15.4
Fa1/0/22 auto off0.0 n/a n/a 15.4
Fa1/0/23 auto off0.0 n/a n/a 15.4
Fa1/0/24 auto off0.0 n/a n/a 15.4
ROUTER….
CME#sh ver
Cisco IOS Software, 2800 Software(C2800NM-ADVENTERPRISEK9-M), Version 15.1(3)T2, RELEASE SOFTWARE (fc1)
Copyright (c) 1986-2011 by Cisco Systems, Inc.
Compiled Wed 10-Aug-11 05:17 by prod_rel_team
ROM: System Bootstrap, Version 12.4(13r)T, RELEASESOFTWARE (fc1)
CME uptime is 2 hours, 36 minutes
System returned to ROM by power-on
System image file class="MsoNoSpacing">Last reload type: Normal Reload
This product contains cryptographic features and issubject to United
States and local country laws governing import, export,transfer and
use. Delivery of Cisco cryptographic products does notimply
third-party authority to import, export, distribute oruse encryption.
Importers, exporters, distributors and users areresponsible for
compliance with U.S. and local country laws. By usingthis product you
agree to comply with applicable laws and regulations. Ifyou are unable
to comply with U.S. and local laws, return this productimmediately.
A summary of U.S. laws governing Cisco cryptographicproducts may be found at:
If you require further assistance please contact us bysending email to
Cisco 2851 (revision 53.51) with 509952K/14336K bytes ofmemory.
Processor board ID FTX1113A34Q
2 Gigabit Ethernet interfaces
1 Virtual Private Network (VPN) Module
DRAM configuration is 64 bits wide with parity enabled.
239K bytes of non-volatile configuration memory.
250880K bytes of ATA CompactFlash (Read/Write)
License Info:
License UDI:
Device# PID SN
*0CISCO2821 FTX1113A34Q
Configuration register is 0x2102
CME#sh inv
NAME: "2851 chassis", DESCR: "2851chassis"
PID: CISCO2851, VID: V03 , SN: FTX1113A34Q
NAME: "PVDMII DSP SIMM with three DSPs on Slot 0SubSlot 4", DESCR: "PVDMII DSP SIMM with three DSPs"
PID: PVDM2-32 , VID: V01 , SN: FOC12221GAH
Delivery 3-7 DAYS
Bonus:
We will send a link to downloadCisco IOS forRouters
Switches Putty and many more Free Lab Videos or workbook
Used items.. May contain some scratches or marks or broken eject button
No other accessories included..
