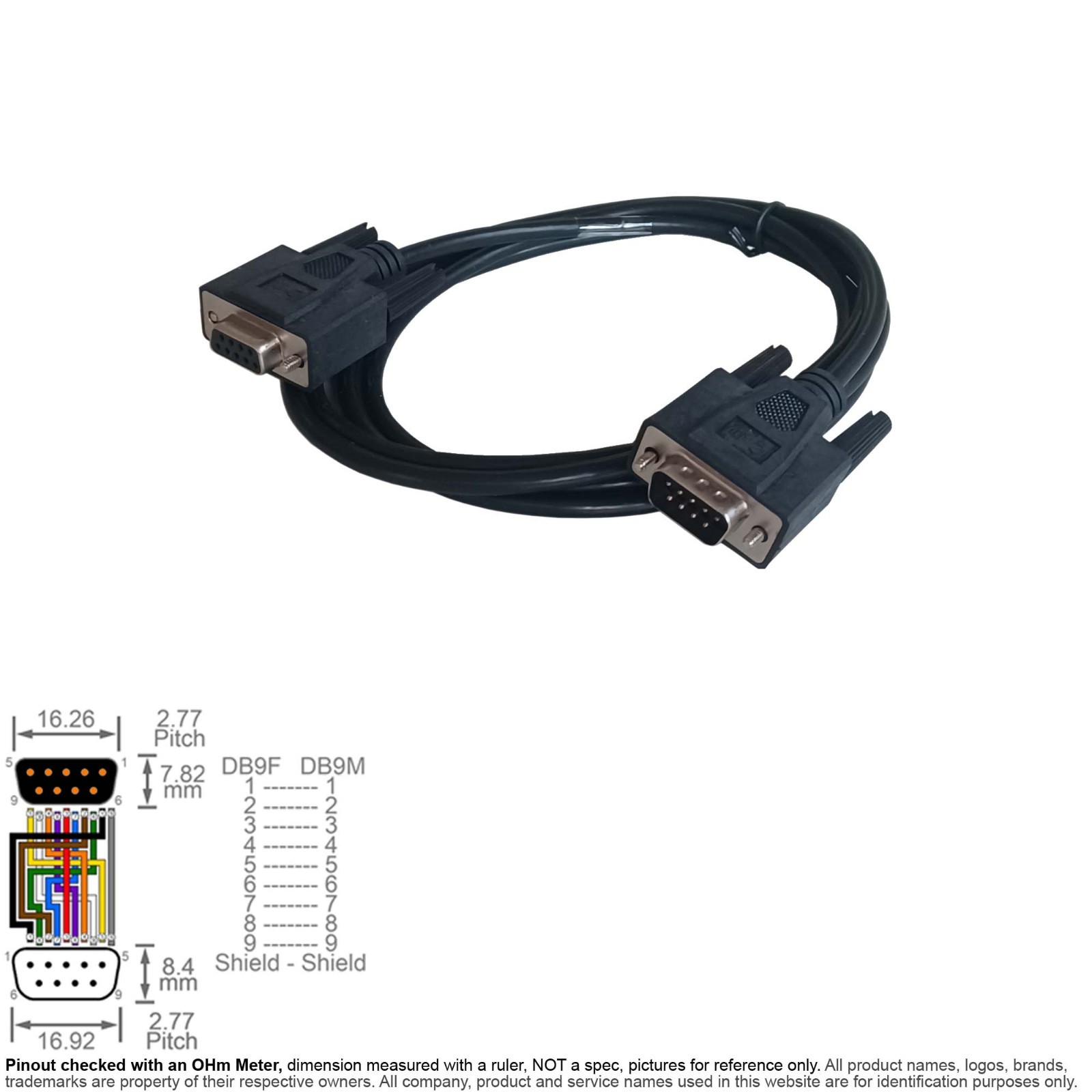

Cable UPS Console Serial DB9 9-Pin Female Male 6FT Tripp Lite 73-0866
Price: US $4.20
  • Description: Serial UPS Power Management Communication Cable D-Sub 2.77-Pitch DB9 9-Pin Female to Male Tripp Lite 73-0866 Molded Connector 6FT SKU 182425
  • Manufacturer: Not Specified
  • Brand Name or Distributor:Tripp Lite
  • Model: (Equivalent & Compatible)
    • Seller's SKU 182425
  • Connector:
    • D-Sub DB9 2.77mm Pitch 9-Pin Female Molded Connector
    • D-Sub DB9 2.77mm Pitch 9-Pin Male Molded Connector
  • Pinout: (Wiring Circuits checked with an Ohm Meter, not a Spec, for reference only.)
    • Straight-Thru
      • DB9F 1 - DB9M 1
      • DB9F 2 - DB9M 2
      • DB9F 3 - DB9M 3
      • DB9F 4 - DB9M 4
      • DB9F 5 - DB9M 5
      • DB9F 6 - DB9M 6
      • DB9F 7 - DB9M 7
      • DB9F 8 - DB9M 8
      • DB9F 9 - DB9M 9
      • Shield - Shield
  • Cable Marking:
    • NA
  • Item Length:
    • Overall : 6FT
    • Wire: 5.6FT
  • Weight: 4.1 oz (estimated shipping weight 8 oz)
  • Condition:(Subject to Availability)
    • SKU ______P -For Parts, Unused Open Box, Proprietary Pinout Brand & Model specific compatibility NOT for standard Serial.
  • Package:Non-retail packaging, in Unprinted or Reused Box or Plastic Bag.
  • For use with or pulled from: (for reference only)
    • UPS management cables are not universally interchangeable, while many use standard-looking connectors but the internal wiring (pinout) is often proprietary to the manufacturer.
    • Some legacy and specialized UPS Battery Backups still utilize Straight-Thru Cables for management, however, this is the exception rather the rule.
    • In a UPS Battery Backup System, a Straight-Thru Serial RS-232 Cable acts as the physical communication bridge between the UPS and a server or computer to enable intelligent power management through :
      • Graceful Automate Shutdown.
      • Real-Time Status Monitoring (Battery Health, Load Levels, Input Voltage).
      • Remote Management and Configuration (Self-Tests, Altering, Event Logging).
    • Summary of Cable Types:
      • APC - Proprietary (e.g., 940-0024). Straight-Thru cables will crash the unit.
      • Belkin - Often Straight-Thru for rack-mount OmniGuard models.
      • Eaton / Powerware - Often requires proprietary or specially labeled 'PC' cables.
      • CyberPower - Mixed; some models support Straight-Through, but bundled cables are preferred.
    • Serial Number(s) Available or Sold:
      • SN 0099046 For Parts, Unused Open Box
