The CommScope FOSC450-B6-6-24-1-B3V (part number 467054-000) is a single-ended, round fiber optic splice closure designed for managing and protecting feeder and distribution cables in various environments. It belongs to the FOSC 450 series and features gel-sealing technology, which allows for cable re-entry and additions without the need for heat shrink or specialized tools.

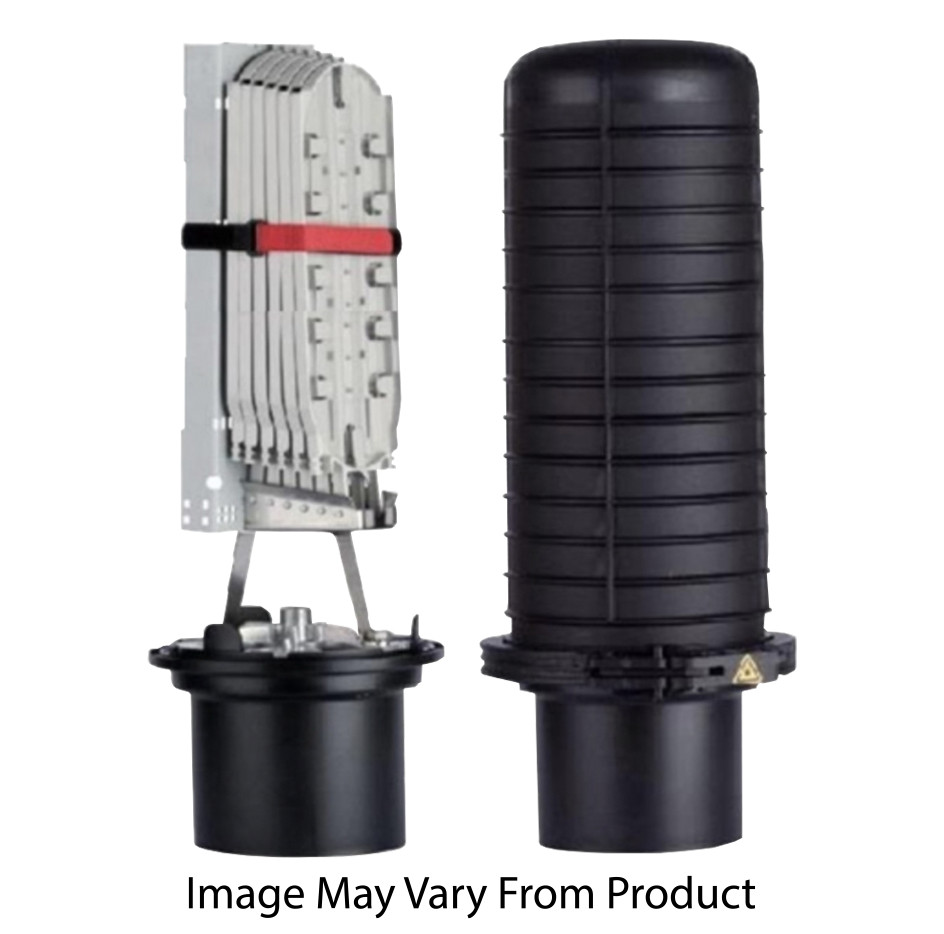

CommScope FOSC450 Splice Case FOSC450-B6-6-24-1-B3V

Key Specifications

According to official CommScope documentation and product listings from All Data Resource and Fiber Instrument Sales, the technical details are:

• Ports: 6 round ports for cable entry.
• Splice Capacity: Holds a maximum of 144 single fusion splices or 288 mass fusion splices.
• Included Trays: One pre-installed 24-way heat shrink splice tray.
• Sealing Technology: Compressed gel for cable sealing and a dome-to-base clamp with an O-ring for the main closure seal.
• Environment: Rated for use in aerial, pedestal, buried, and underground environments (up to 5 meters waterhead).
• Dimensions: Approximately 24 inches (610 mm) in length and 10 inches (254 mm) in diameter.
• Grounding: Includes 3 ground feed-through lugs and a pre-installed flash test valve for pressure testing.
