Upgrade your Dell Precision 7730 with the Intel Xeon E-2176M motherboard. Featuring 6 cores at 2.7GHz (turbo up to 4.4GHz), support for 64GB DDR4 RAM, and multiple storage options, maximize performance for demanding tasks. Enjoy high-speed connectivity with Thunderbolt 3 and USB 3.1. Perfect for professionals needing reliability and power.

Genuine HP MAH P SERIES 460499-001 462969-B21 462976-001 Raid Controller Battery $41.99 Shop Fortinet Fortigate FG-61E Firewall Network Security Appliance ATP Bundle 1 years $299.99 Shop Dell Wyse 3040 Thin Client, Intel Atom x5 2GB RAM 16GB SSD Keyboard & Mouse Kit! $125 Shop USB to Gigabit Network Adapter - USB 3.0 Single Mode Fiber (SMF)/(MMF) US1GA30SF $69.99 Shop New Dell Optiplex 3020 9020 Micro Dual VESA Mounting Kit 01C3XR 2CPFW NMGDM $29.99 Shop Dell Nvidia Tesla Referral K80 GPU 24GB GDDR5 Server Accelerator Graphics Card HHCJ6 $88.62 Shop Tablet Docking Station 0HR73C Dell K10A Venue 11 Pro 5130 7130 7139 Series 1V3M8 $16.99 Shop HGST Ultrastar SS200 480GB SAS 12Gb/s SSD 2.5" SED 1.8K Read 1K Write 0TS1393 $138.99 Shop Polycom VVX 411 Black 12-Line 3.5" 320x240 Backlit LCD VoIP Phone 2200-48450-001 $59.89 Shop Polycom RealPresence Trio 8500 5" Touchscreen Conference IP Phone 2200-66700-025 $90.89 Shop

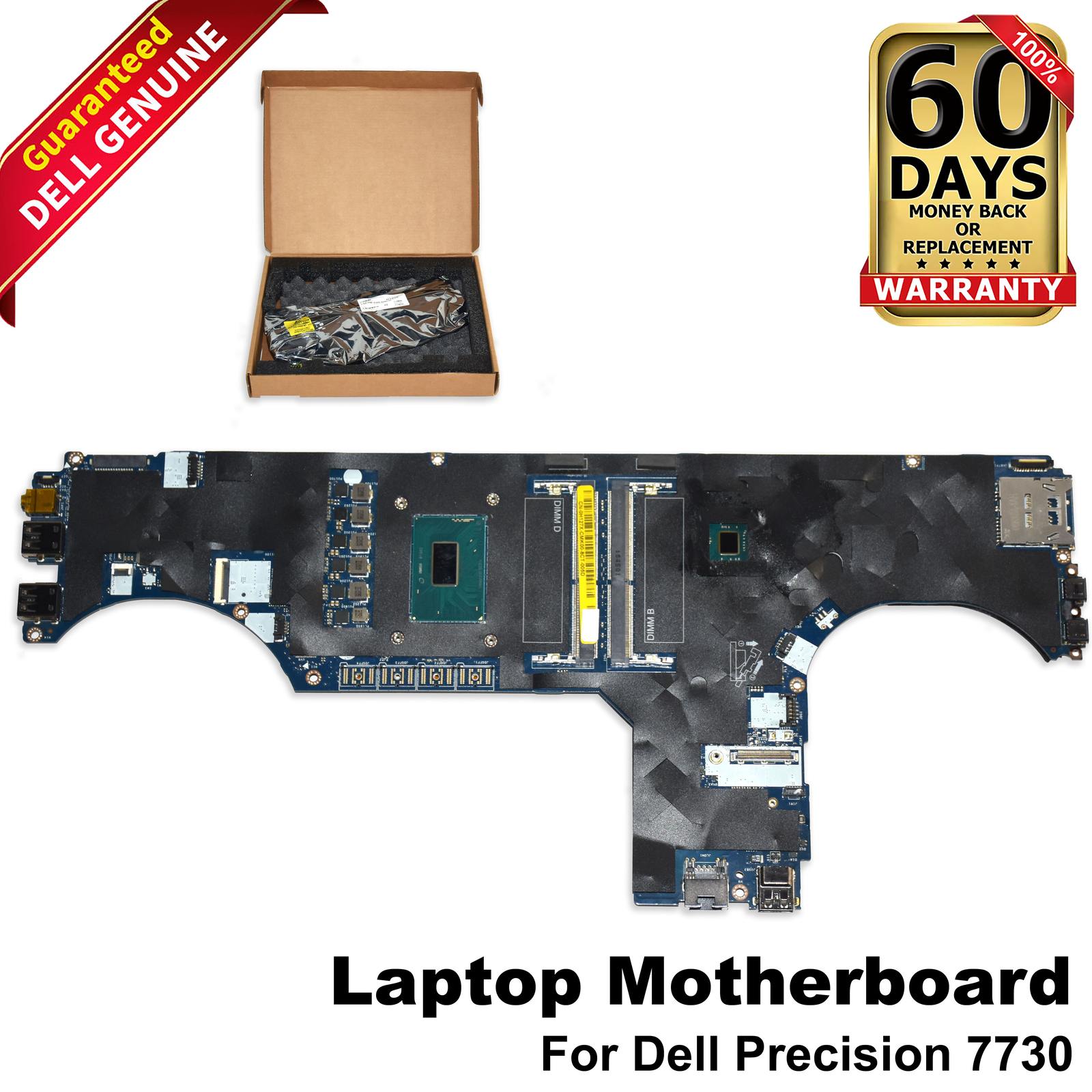

Dell Precision 7730 Motherboard Intel Xeon E-2176M CPU 2.7GHz 6-Core H127X




Brand: Dell
Model: LA-F601P​
Part Number: H127X
MPN: H127X, 0H127X, CN-0H127X
Type: Motherboard
Compatible Brand: For Dell
Compatible Product Line: For Dell Precision
Compatible Model: For Dell Precision 7730
Chipset: Intel CM246Processor
Model: Intel Xeon E-2176M
Architecture: Coffee Lake
Cores / Threads: 6 Cores / 12 Threads
Base Clock: 2.7 GHz
Max Turbo Boost: Up to 4.4 GHz
Cache: 12 MB Intel Smart Cache
TDP: 45W
Integrated GPU: Intel UHD Graphics P630
vPro Support: YesGraphics Support
Integrated GPU: Intel UHD Graphics P630
Dedicated GPU Support: Yes (via MXM slot)Memory (RAM)
Supported Type: DDR4 SDRAM, ECC and Non-ECC
Memory Speeds Supported:
2400 MHz
2666 MHz
2933 MHz
Memory Slots: 4x SODIMM
Max Memory Per Slot: 32 GB
Max Total Memory: 64 GB
Minimum Memory Configuration: 8 GB
Supported Configurations:
8 GB (1 x 8 GB)
16 GB (1 x 16 GB or 2 x 8 GB)
32 GB (1 x 32 GB, 2 x 16 GB, or 4 x 8 GB)
64 GB (2 x 32 GB or 4 x 16 GB)Storage
Solid-State Drive (SSD):
Drive Bays: Up to 4x M.2 2280 slots
Interfaces Supported:
SATA III (6 Gbps)
PCIe Gen3 x4 NVMe (32 Gbps)
Security Options: SED (Self-Encrypting Drive)
Max Capacity:
SATA: Up to 2 TB
NVMe: Up to 2 TB per slotHard Disk Drive (HDD):
Drive Bays: 1x 2.5" SATA HDD (only when 4-cell battery is used)
Interface: SATA III (6 Gbps)
Security Options: SED FIPS
Max Capacity: Up to 2 TBPorts and Connectivity
USB Ports:
3x USB 3.1 Gen 1 Type-A (with PowerShare support)
Thunderbolt Ports:
2x Thunderbolt 3 (USB Type-C)
Video Outputs:
1x HDMI 2.0
1x Mini DisplayPort 1.4
Audio:
1x Headset jack (combo)
Integrated stereo speakers
Dual array microphones (noise reduction)
Networking:
1x RJ-45 Ethernet (Gigabit LAN)
Memory Card Reader:
SD 4.0 card reader
Smart Card Reader:
Standard
TPM 2.0
Docking:
Compatible with Dell E-Series Cable Dock (via USB-C/Thunderbolt)

This item will be Shipped exactly as shown in the picture.
