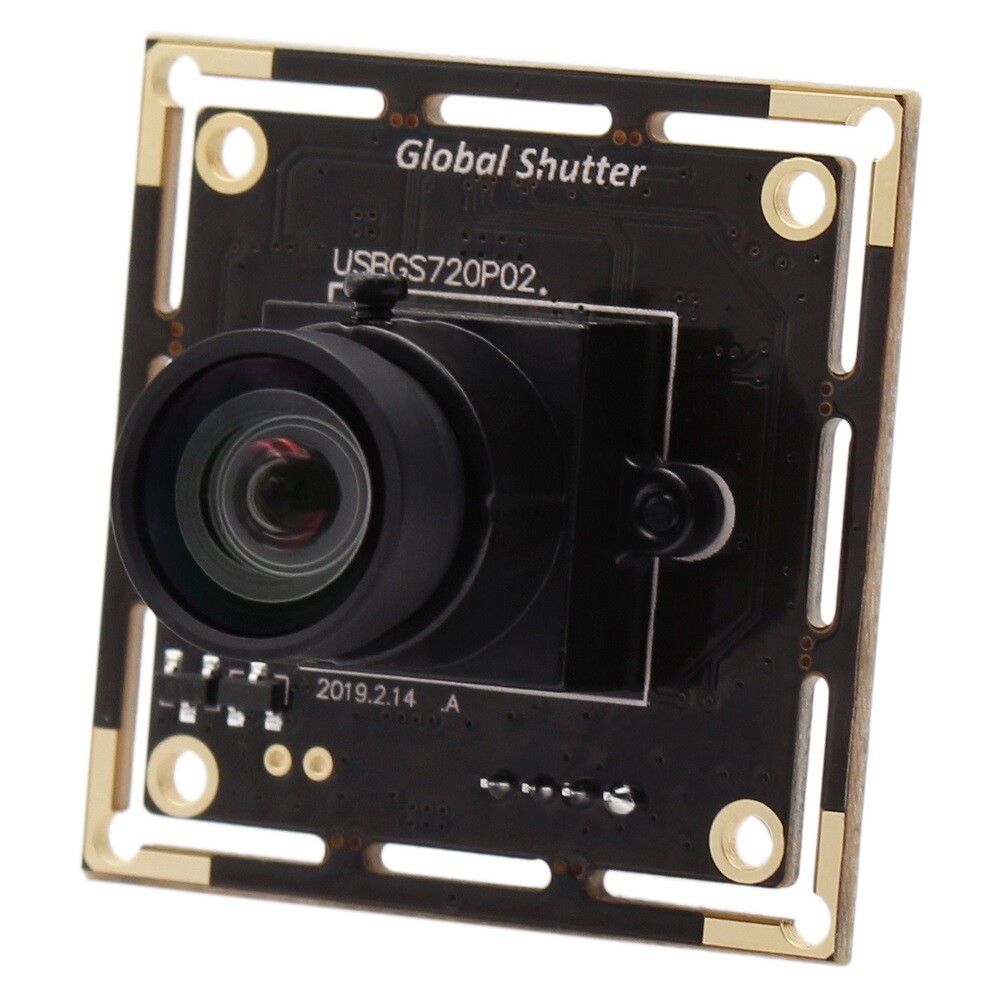

USB2.0 Webcamera Global ShutterHigh Speed 60fps 720P UVC Plug Play Driverless USB Camera ModuleImportant: The picture for this camera is black and white
Features:
Product Name: 720P Global Shutter USB Camera module
1. High quality Aptina AR0144 Sensor for high quality image 2. Shutter Type : Global shutter3.High frame rate- deliver 1280X720MJPEG@ 60fps4. UVC compliance for use in OS Windows,Linux, Android
Specification:
Model
ELP-USBGS720P02-V80
Sensor
Aptina AR0144
Lens Size
1/4 inch
Pixel Size
3.0µm
image area
3888µm x 2430 µm
Effective Pixels
1280(H)X720(V) 1MP
Compression format
MJPEG / YUV2 (YUYV)
Resolution & frame
1280X720MJPEG@ 60fps YUY2@5fps
800X600MJPEG@ 60fps YUY2@20fps
640X480 MJPEG@ 60fps YUY2@ 30fps
S/N Ratio
38dB
Dynamic Range
63.9dB
Sensitivity
3.1V/lux-sec@550nm
Mini illumination
0.2 Lux
Shutter Type
Global Shutter
Connecting Port type
USB2.0 High Speed
OTG protocol
USB2.0 OTG
Free Drive Protocol
USB Video Class(UVC)
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter
Standard 4.3mm (2.1/2.5 /2.8/ 6mm optional)
Power supply connector
USB BUS POWER 4P-2.0mm socket
Work Power Voltage
DC5V
Work Power Current
110mA~160mA
Working temperature
Working temperature
-20～75℃
Board size /Weight
38*38mm / About 30g
Cable
Standard 1m cables (2M,3M,5M optional )
Applications:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote sitemonitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player,LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,
evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,endoscope, Medical auxiliary equipment, etc.
