ESP32 LoRa V4 Dev Board ESP32-S3 SX1262 LoRa Kit + L76K GNSS GPS Module📜 Product Overview
The classic WiFi LoRa 32 development board has been upgraded to the all-new V4 version. While retaining the advantages of previous editions, it features comprehensive improvements in craftsmanship and enhanced performance. Main Features:
Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.
2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.
LoRa Transmit Power: High-power version 28 dBm
PC casing protects the screen and integrates FPC 2.4G antenna.
Form factor and pin compatibility with WiFi LoRa 32 V3.
PC casing protects the screen and integrates FPC 2.4G antenna.
Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface.
Optimized lithium battery management.
Low power consumption is less than 20μA. Specifications:
MCU: ESP32-S3R2 (Xtensa32-bit lx7 dual core processor)
LoRa Chip: SX1262
Frequency: 863-928MHz
Max. TX Power: High-power version: 28 ±1 dBm
Max. Receiving sensitivity: -137dBmSF12 BW=125KHz
Wi-Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth (LE), Bluetooth 5, Bluetooth Mesh
Hardware Resource:
7*ADC1 + 2*ADC2
7*Touch
3*UART
2*I2C
2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 2MB PSRAM; 16MB Flash
Interface:
Type-C USB
1.25*2 Pin lithium battery interface
1.25*2 Pin Solar interface
1.25*8 Pin interface
LoRa ANT(I-PX1.0)
2.4G ANT(I-PX1.0)
Battery applicable: 3.3-4.4V lithium battery
Operating Temperature: -20 ~ 70 ℃
Dimensions: 51.7 * 25.4* 10.7mm Packing list:

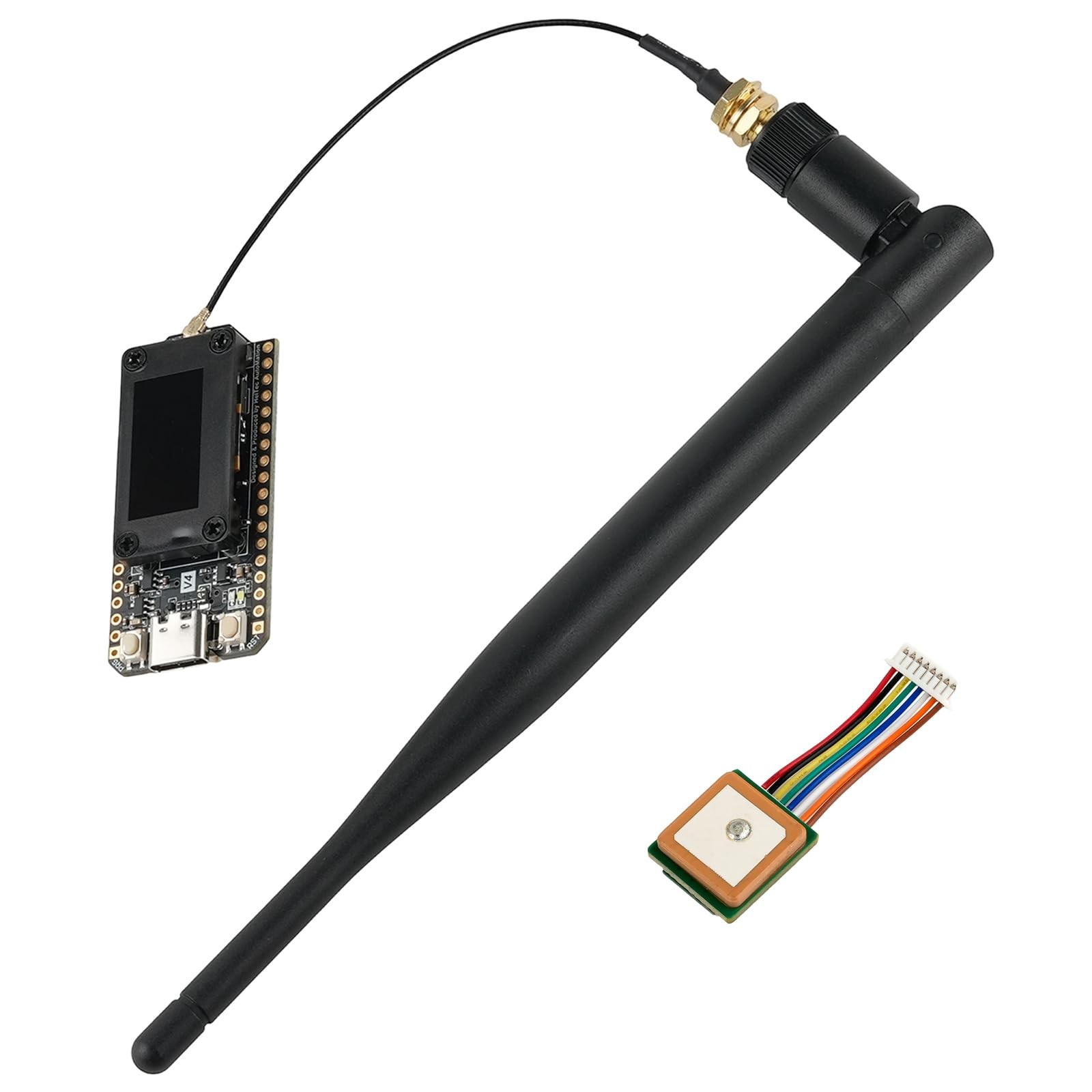

WiFi LoRa 32 (V4) x 1
L76K GNSS GPS Module x 1
5DBI LoRa Antenna x 1
1.25×2 Connector (for battery&solar) x 2
2.54*18 Header Pin x 2
2.54*2 Header Pin x 2
✨ Highlights
- The all-new V4 version of the classic development board WiFi LoRa 32 supports WiFi, BLE, and LoRa communication. It supports development methods for Arduino, Micro-python, Platform-io, and Espressif-IDE
- 2MB PSRAM and 16MB external Flash, more suitable for UI and complex system
- High-power version with LoRa transmission power increased to 28±1dBm
- With L76K GNSS GPS Module for ESP32 LoRa V4 Mesh Node T114, High Position Accuracy Low Power Consumption Data Update Rate
- Form factor and pin compatibility with Wi-Fi LoRa 32 V3
- It’s the best choice for smart cities, smart farms, smart home, and IoT makers
