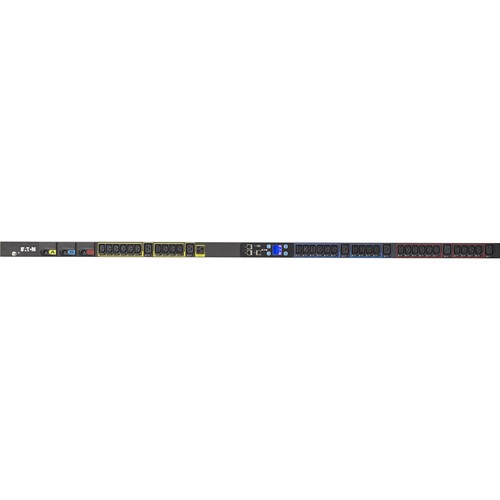

Eaton Metered Input Rack PDU 8.64 kW max 120/208V 24A 0U Three-Phase PDU - NEMA L21-30P - 30 x IEC 60320 C13, 6 x IEC 60320 C19, 1 x NEMA 5-20R - 120 V AC, 230 V AC - 8640 W - Network (RJ-45) - 38U - Rack-mountable

Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets. IEC outlet grip plug retention secures plugs in place using standard cables Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation High operating temperature (140F / 60C) for containment or hot network closet environments Hot-swap meter for servicability of without removing power to the rack +/- 1% billing grade accuracy for high accuracy reporting of energy usage Daisy chain of IP addresses allows four devices to share one network connection
ManufacturerEaton Corporation Manufacturer Part NumberEMI310-10 Brand NameEaton Product LineePDU Product NameePDU 37-Outlets PDU Product TypePDU Technical Information Plug/Connector TypeNEMA L21-30P Receptacle TypeIEC 60320 C13,IEC 60320 C19,NEMA 5-20R Receptacle Detail30 x IEC 60320 C13,6 x IEC 60320 C19,1 x NEMA 5-20R Power Description Input Voltage120 V AC,230 V AC Input Voltage Range120 V AC - 208 V AC Power Rating (Watt)8640 W Input Current24 A Circuit BreakerYes Interfaces/Ports Serial PortYes Network (RJ-45)Yes USBYes Physical Characteristics Mount TypeRack-mountable Rack Height38U Cord Length10 ft Height66.5" Width2.1" Depth2.1" Weight (Approximate)18.30 lb Miscellaneous Certifications & Standards UL ITE 60950-1 FCC Country of OriginMorocco Warranty Limited Warranty3 Year WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
