Product Description

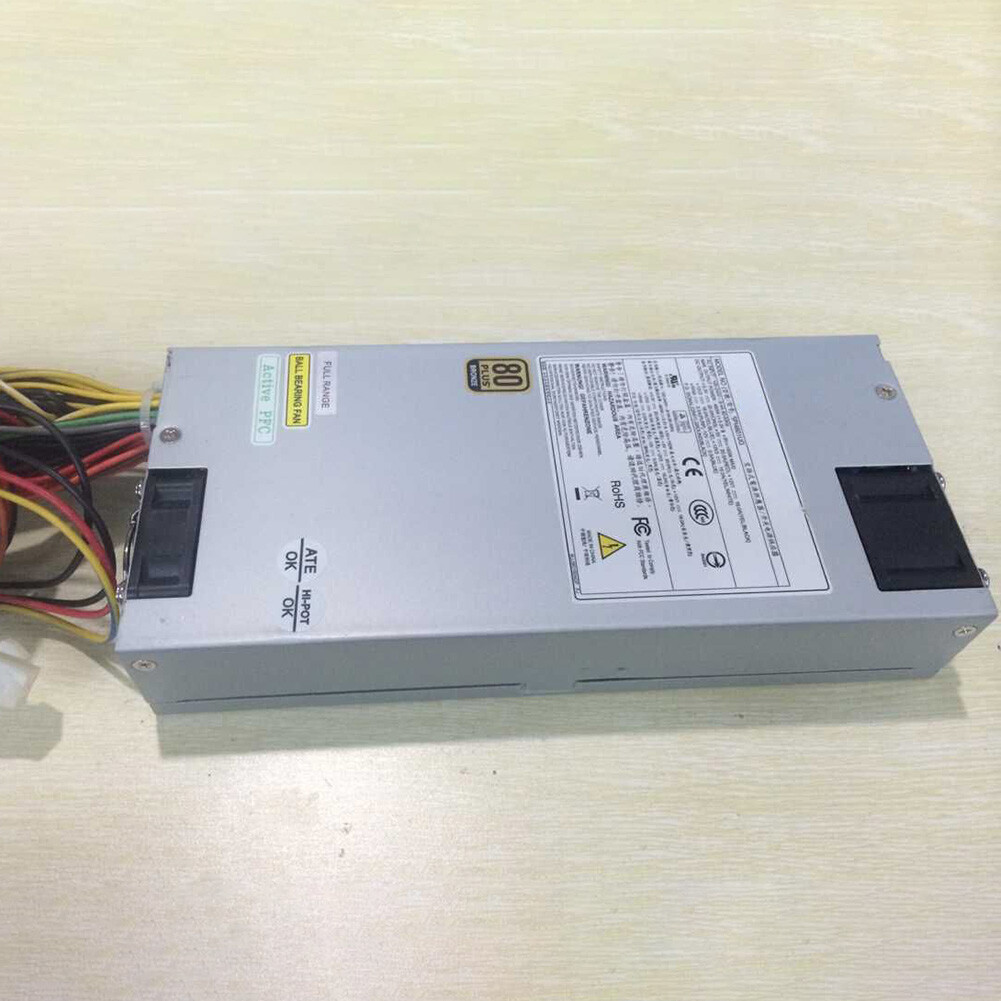

For FSP 460W 1U Server Power Supply SPI4601UG FSP460-701UH FSP460-701UG
Product features: 80 PLUS low ripple and noise output over-voltage protection, all output short-circuit protection, reset, turn off the power supply, internal 4 cm fan 100% combustion, high ambient temperature (50 ℃) vacuum impregnated transformer 100,000 hours mean time between failures at 25 ℃ 100% Withstand voltage test circuit input fuse protection
Product specifications
Dimensions: 220X 100 x 40.5 mm
Application: server, workstation
Rated power: 460W
Input specifications
Input voltage: 90 to 264 V
Input frequency: 47 Hz to 63 Hz
Input current: 8.0 Ampere maximum/115 Vrms, 60 Hz,
4.0 Ampere maximum/230 VRMS, 50 Hz;
Output specifications
Overvoltage protection: +5 V output: 5.85V per minute, 6.82V maximum
+3.3 V output: 3.5V minutes, maximum 4.5V
+12 V output 13.4V minutes, maximum 15.6V
General specification
Hold time: 115V/60Hz 20 milliseconds. Minimum full load
230V/50HZ 20 milliseconds. Min@full load
Benefit: 80%
Mean time between failures: 100,000 hours at full load at 25°C
Good power signal: 500 milliseconds 100 milliseconds
Environmental specifications
Working temperature: 0℃ to +50℃
Storage temperature: -20℃ to +80℃
Relative humidity: 5% to 95% RH non-condensing
Interface Type
Main power interface: 20+4Pin
12V auxiliary power supply interface: 8PIN*1, 4PIN+4PIN*1
D type 4Pin interface: 4
SATA interface: 4
Small 4Pin floppy drive interface: 1
Fan: 40mm fan
1 *Power Supply
