Product description

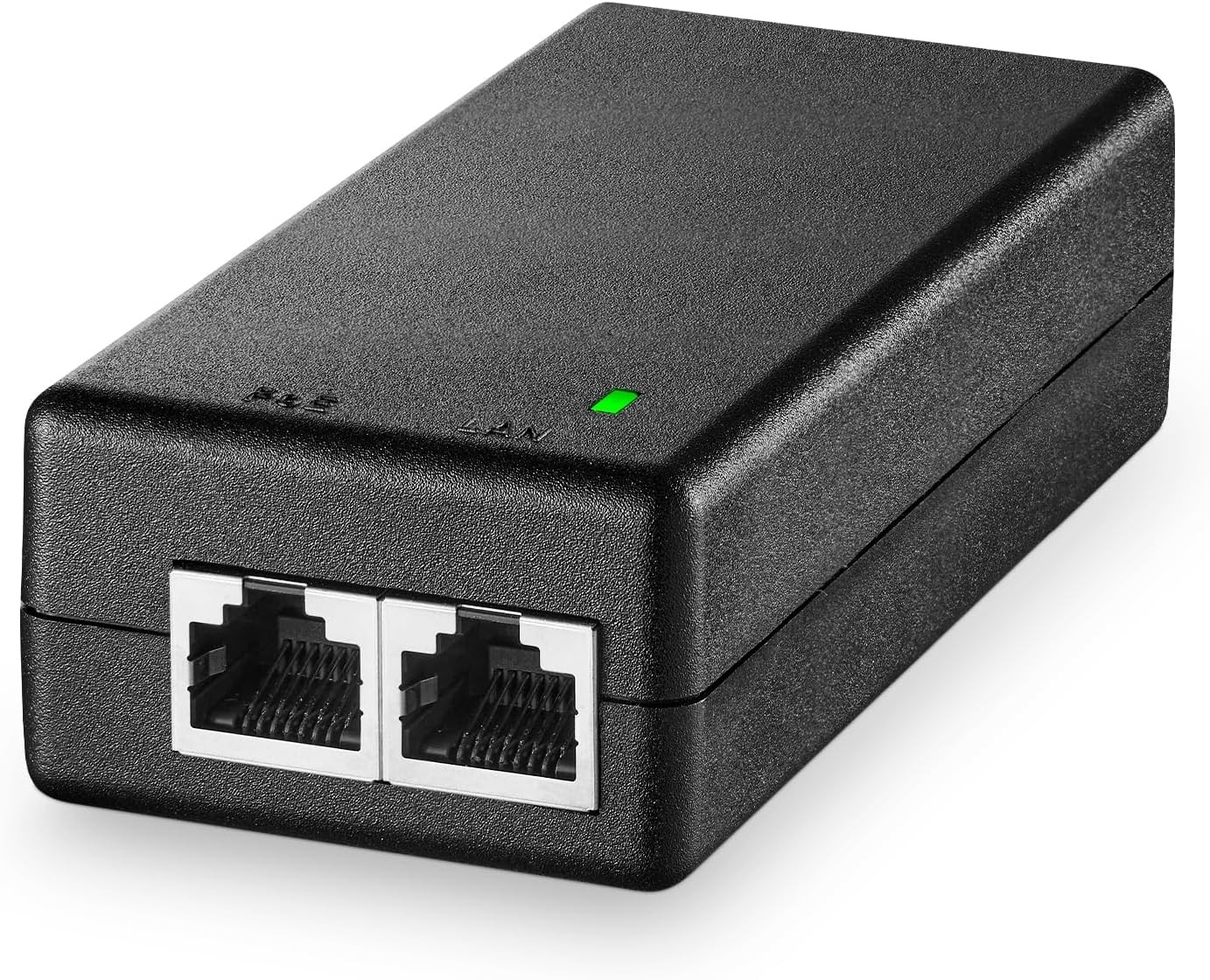

The PGN301 Gigabit PoE++ Injector fully complies with IEEE 802.3af/at PoE standards with up to 30W power supply. Plug and Play, It can easily expand your network to where there are no power lines, It is ideal for connecting IP Cameras, APs.
30W PoE Power Output
Complies with IEEE802.3af/at standards, supplies up to 30W, It auto detect the required power for PDs.
Gigabit Ports Ensure Faster Connections
Both the input and output port are gigabit speed, ensure faster and more reliable connections for all devides. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.
Plug and Play
Plug & Play installation, no software setup or configuratio required, Just plug the Ethernet enabled device into the injector.
Safe Guard Your Devices
Each port are equipped with power backfeed protection in order to avoid damaging the devices.
Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable. It is ideal for IP surveillance, digital signage and other PoE devices.
Technical Parameter Model PGN301 Ports 1× 1Gbps/100Mbps/10Mbps RJ45 data-in port, 1× 1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 30W), 1× AC socket Standards and Protocols IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) PoE Protocols IEEE802.3af, IEEE802.3at Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m), 100BASE-TX: UTP category 5, 5e cable (maximum 100 m), 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) Power Consumption Input: 100-240 V, 50/60 Hz, Output: Auto-determine the necessary power requirements (max. 30 W) LED Power / PoE Dimensions ( W x D x H ) 115*50*32mm Product Weight 0.2kg Working Environment Working Temperature：-0~40°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing Package List PoE Injector 1 pcs, Power cord 1 pcs, User manual 1 pc
- 【2 Gigabit Ports】This PoE injector include 1× Gigabit Ethernet Input Port, and 1× Gigabit Ethernet Output port with PoE power. Max 1000Mbps with excellent data performance. PoE+ injector 48V/30W can Convert Non-PoE to PoE, you can easily have PoE enabled With no need to replace your existing non-PoE switch/device.
- 【802.3af/at PoE】 The PoE port supports IEEE802.3af/at 30W, the maximum power is 30W, supports automatic detection, power supply according to the power of the device, no forced power supply, no damage to the device. Please note that passive 24V devices are not powered.
- 【Plug and Play】 Easy to use, just plug in the power cord, the 2 ports connect to network devices and POE devices, no configuration required to work normally.
- 【Long Distance】 Transmit data and power over the single network cable up to 100 metres (328 feet), perfect for PoE devices that can be flexibly installed in a larger area.
- 【Widely Used】It works for 30W PoE PDs, can be connected to wireless APs, Wifi routers, Network cameras, etc., widely used in homes, businesses, shops, private networks and other PoE fields.
