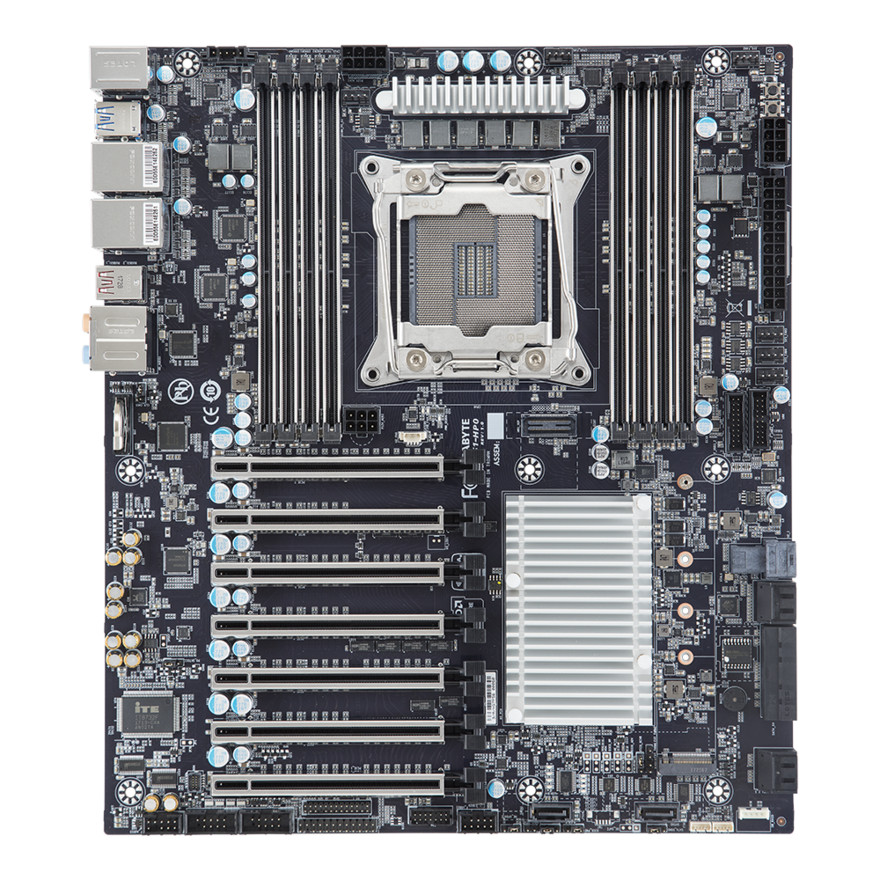

Board Size

CEB

304.8W x 266.7D mm

Processor Supported

Intel® Xeon® W-2200 and W-2100 Processors

Single processor, TDP up to x LGA 2066

Socket R4

Mounting pitch: square ILM (80x80mm)

Chipset Description

Intel® C422 Chipset

Memory Type

8 x DIMM slots

DDR4 memory module supported only

Quad channel memory architecture

RDIMM modules up to 64GB supported

LRDIMM modules up to 128GB supported

1.2V modules: 2666/2400 MHz

NOTE: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0

Integrated Network

2 x 1GbE LAN ports (Intel® I210)

Integrated Video Audio Controller

Realtek® ALC1150 HD audio codec

Supports 7.1 channel SAS SATA Controller

8 x SATA III 6Gb/s ports with 2 x SATA DOM supported

2 x SATA III 6Gb/s ports (Marvell 88SE9172® controller)

Support RAID Function

Intel® SATA RAID 0/1/10/5

Expansion Slot

Slot_7: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU

Slot_6: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot, from CPU

Slot_5: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, from CPU, shared with slot_6

Slot_4: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot, from PEX8747

Slot_3: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, from PEX8747, shared with slot_4

Slot_2: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot, from PEX8747

Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, from PEX8747, shared with slot_2

1 x M.2 slot:

- M-key

- PCIe Gen3 x4, from C422

- Supports NGFF-2242/2260/2280/22110 cards

1 x U.2 connector:

- Mini-SAS HD type

- PCIe Gen3 x4, from C422

Supports NVIDIA® SLI™ and AMD® CrossFireX™ technologies

NOTE: Graphic card requests UEFI-ready

On-Board Connector

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors for CPU and DDR 12V input

1 x 6-pin power connector for PCIe slots 12V input

1 x CPU fan header

5 x System fan headers

2 x USB 3.0 headers for 4 ports

1 x USB 2.0 header for 2 ports

1 x Front audio header

1 x PMBus connector

1 x Clear CMOS jumper

10 x SATA III 6Gb/s ports

2 x SATA DOM jumpers

2 x SATA DOM SGPIO connectors

1 x ME update jumper

1 x M.2 slot

1 x U.2 connector

1 x Front panel header

1 x Backplane board header

2 x COM headers

1 x TPM header

1 x VROC connector

1 x BIOS recovery jumper

1 x Buzzer

Rear I/O Connectors

1 x PS/2

8 x USB 3.0

2 x USB 3.1 (red) in Type-A and Type-C (5V/3A)

2 x RJ45

5 x Audio jacks

1 x Optical x TPM header with LPC interface

Optional TPM2.0 kit: CTM000

OS Driver Supported

Windows 10 (x64)

Based on Microsoft support policy, GIGABYTE recommends users to upgrade Skylake-based systems to Windows 10 before July 17th, 2018 to continue receiving support

Red Hat Enterprise Linux 6.8 (x64)

Red Hat Enterprise Linux 7.3 (x64)

SUSE Linux Enterprise Server 11.4 (x64)

SUSE Linux Enterprise Server 12.2 (x64)

Ubuntu 16.04 LTS (x64)

Ubuntu 16.10 LTS (x64)

Server Connector

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 10°C to 40°C

Operating humidity: 8-80% (non-condensing)

Non-operating temperature: -40°C to 60°C

Non-operating humidity: 20%-95% Bundle

1 x MW51-HP0

1 x Driver CD

1 x I/O shield

1 x Quick start guide

8 x SATA III 6Gb/s cables (500mm)

1 x External thermistor cable (2P/900mm)

Single Box dimensions: 360 x 330 x 80 mm

Carton dimensions: 674 x 424 x 385 mm

Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MW51-HP0

10 x I/O shields

Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9MW51HP0MR-00

Bulk: 9MW51HP0NR-00

Part numbers:

I/O shield: 12AIO-MW51H0-00R

Fan-sink: 25ST0-7C9220-T1R (optional)

Driver CD: 12DC1-08MW51-00H (Retail)

SATA III 6Gb/s cable (500mm): 12CF1-2SAT01-31R (Retail)

External thermistor cable: 12CF1-1TM001-01R (Retail)
