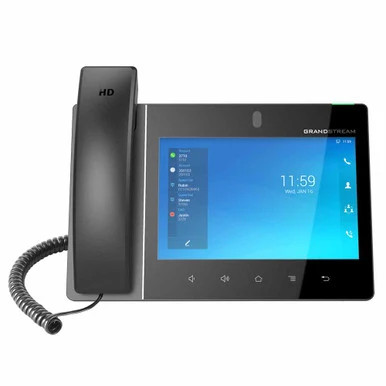

PRODUCT OVERVIEWGrandstream GXV3480 High-End Smart Video Phone for AndroidPRODUCT TYPE / CATEGORYNetworking
IP PhonesKEY FEATURES• 16 lines with up to 16 SIP accounts
• Built-in 2 mega-pixel camera for video calling with privacy shutter
• Runs on Android 11 operating system.
• Built-in Bluetooth 5.0 for syncing with mobile devices and connecting Bluetooth headsets
• Dual-switched autosensing 10/100/1000mbps network ports
• Integrated dual-band Wi-Fi 6 (2.4GHz & 5GHz)
• Built-in PoE/PoE+ for power and network connections
• Dual MIC & HD speakerphone with noise shield 2.0, advanced echo cancellation & excellent double-talk performance
• Quad-core 2.0GHz ARM Cortex-A55 processor with 4GB RAM and 16GB eMMC Flash
• 8.0” (1280×800) capacitive 10-point touch screen IPS LCD
• Peripherals include HDMI-in/out, USB, Type-C, 3.5mm headset jack, EHS (Plantronics headsets).
• 12-way audio conferencing & 3-way 1080p 30fps HD video conferencing capability
• Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN
• Network Interfaces: Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+
• Graphic Display: 8.0 inch 1280×800 capacitive touch screen (10 points) IPS LCD
• Camera Tiltable: 2 mega-pixel CMOS camera with privacy shutter, 1080P@30fps
• Bluetooth: Yes, integrated Bluetooth 5.0
• Wi-Fi: Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display & AirPlayTECHNICAL SPECIFICATIONS• Brand: Grandstream
• Model: GXV3480
• Product Type: IP Phones
• 16 lines with up to 16 SIP accounts
• Built-in 2 mega-pixel camera for video calling with privacy shutter
• Runs on Android 11 operating system.
• Built-in Bluetooth 5.0 for syncing with mobile devices and connecting Bluetooth headsets
• Dual-switched autosensing 10/100/1000mbps network ports
• Integrated dual-band Wi-Fi 6 (2.4GHz & 5GHz)
• Built-in PoE/PoE+ for power and network connections
• Dual MIC & HD speakerphone with noise shield 2.0, advanced echo cancellation & excellent double-talk performance
• Quad-core 2.0GHz ARM Cortex-A55 processor with 4GB RAM and 16GB eMMC Flash
• 8.0” (1280×800) capacitive 10-point touch screen IPS LCD
• Peripherals include HDMI-in/out, USB, Type-C, 3.5mm headset jack, EHS (Plantronics headsets).
• 12-way audio conferencing & 3-way 1080p 30fps HD video conferencing capability
• Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN
• Network Interfaces: Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+
• Graphic Display: 8.0 inch 1280×800 capacitive touch screen (10 points) IPS LCD
• Camera Tiltable: 2 mega-pixel CMOS camera with privacy shutter, 1080P@30fps
• Bluetooth: Yes, integrated Bluetooth 5.0
• Wi-Fi: Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display & AirPlay
• Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB 3.0 port, Type-C, HDMI-out, HDMI-in
• Feature Keys: 2 function touch keys VOLUME+/-, 3 dedicated Android touch keys HOME, MENU and BACK
• Voice Codecs and Capabilities: Wide-band Opus, wide-band G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0
• Video Codecs and Capabilities: H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bit rate up to 4Mbps, 3-way video conference (1080p@30fps), BFCP, people video(up to 1080p@30fps) + content video(up to 1080p@15fps), anti-flickering, and auto exposure
• Telephone Features: Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 12-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable contacts (XML, LDAP, up to 2000 items), call record(local and server), call log (up to 2000 records), call waiting, auto answer, XML customization of screen, flexible dial plan, personalized music ringtones and music on hold, server redundancy & fail-over
• Sample Applications: Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Clock, Voicemail, Calculator, Recorder, GS Market, etc.
• Support third-party Android apps
• API/SDK available for advanced custom application development
• Applications Deployment: Supports Android 11 compliant applications to be developed, downloaded and run on the device with provisioning control
• Android: Runs Android 11
• HD Audio: Yes, 2 omni-directional microphones, HD handset and speakerphone with support for wideband audioINTENDED USE / APPLICATIONS• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
