Juniper MX104-AC Single power supply chassis
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

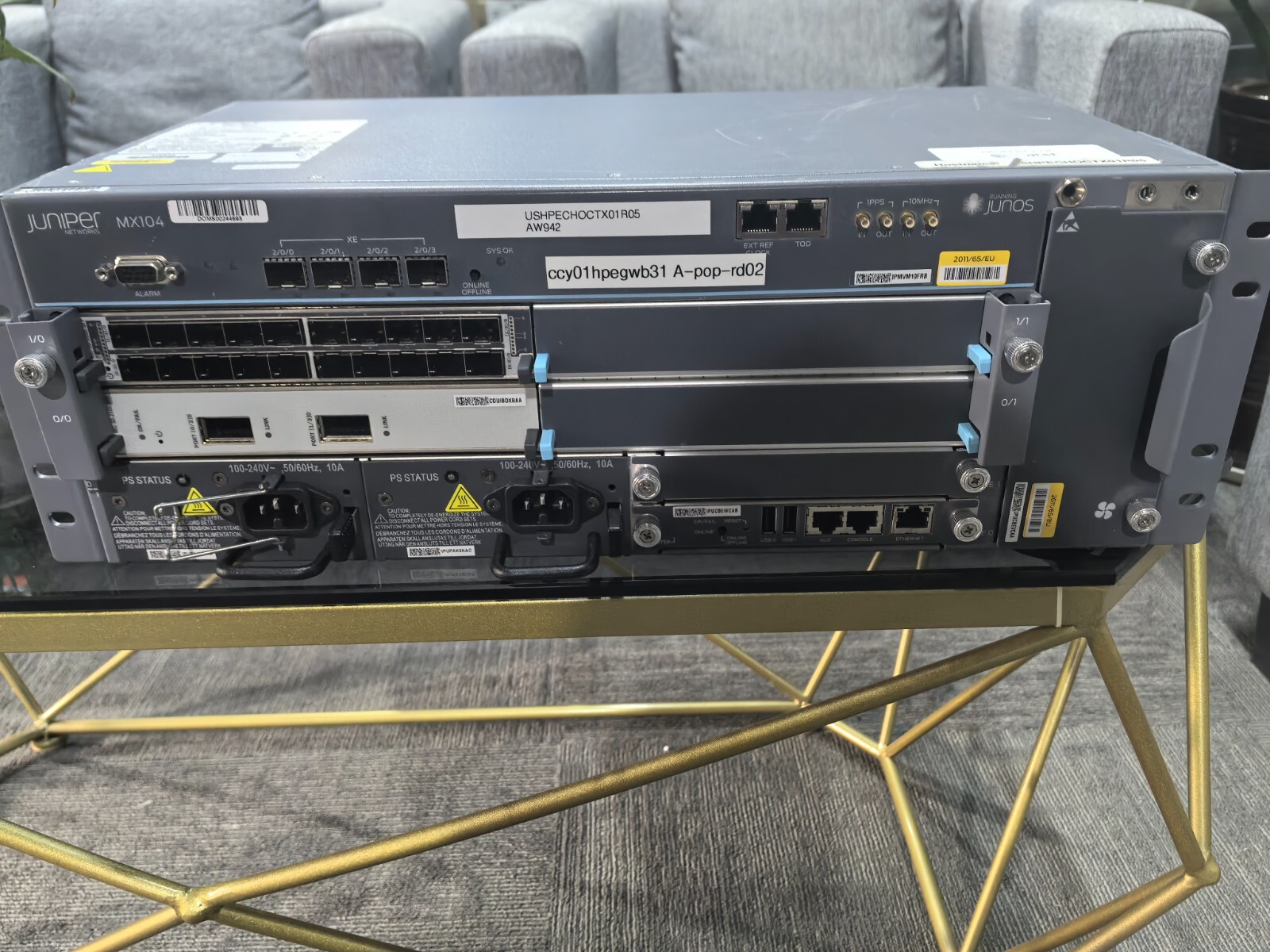

Juniper MX104-AC Single power supply chassis
Price: CN $2489.00
1. Interface Slots & Built-in Ports
  • MIC Slots: 4 modular MIC slots (supports 1-port/2-port/4-port/8-port MIC modules for GE/10GE/40GE)
  • Fixed Built-in Ports: 4 × 10GbE XFP slots (software license required to activate)
  • Management & Timing Ports:1 × RJ45 Console port1 × Out-of-band 10/100/1000BASE-T MGMT port1 × USB 2.0 port1 × TOD timing port, 1 × External Clock Reference port1 × Alarm input/output port
2. Switching & Routing Performance
  • Full-duplex System Capacity: 80 Gbps
  • Max Forwarding Rate: 60 Mpps (64-byte packets)
  • Maximum Supported IPv4 Routes: 1,000,000
  • Maximum Supported IPv6 Routes: 250,000
  • MAC Address Table: 256,000 entries
  • Jumbo Frame Support: Up to 9,192 bytes
  • Packet Buffer Memory: 8 GB shared buffer
3. Control Plane Hardware
  • Routing Engine Slots: 2 slots (1 RE standard, support dual redundant RE for high availability)
  • RE Default Memory: 4 GB DDR3 RAM
  • Internal Storage: 4 MB Boot Flash + 8 GB NAND Flash
  • Hot-swappable Fan Tray: 1 integrated fan tray with air filter, front-to-back airflow
4. Power Specifications (AC Model)
  • PSU Slots: 2 hot-swappable AC power supply slots (1+1 redundant power)
  • AC Input Voltage: 100–240 VAC, 50/60 Hz
  • Max Single PSU Power Output: 800 W
  • Max Full System Power Consumption: 750 W
  • IEC Inlet Standard: C15 power inlet
5. Physical & Mechanical Dimensions
  • Dimensions (H × W × D): 6.12 × 17.32 × 17.72 in (15.5 × 44 × 45 cm)
  • Net Weight: 36.4 lb (16.5 kg)
  • Rack Standard: 19-inch standard rack mount brackets included
6. Environmental Specifications
  • Operating Temperature: 0°C ~ +45°C (32°F ~ 113°F)
  • Extended Hardened Temp Range: -40°C ~ +65°C (compliant with ETSI 300 019)
  • Storage Temperature: -40°C ~ +70°C (-40°F ~ 158°F)
  • Operating Humidity: 5%–90% non-condensing
  • Max Operating Altitude: 10,000 ft (3,048 m)
7. Core Software & Network FeaturesLayer 2 FeaturesSTP/RSTP/MSTP, 4096 VLANs, LACP, MACsec 802.1AE, LLDP, VXLAN, Port MirroringLayer 3 Routing ProtocolsStatic Route, OSPF, IS-IS, BGP, RIP, Multicast (IGMPv2/v3, PIM-SM, MSDP)IPv4/IPv6 Dual Stack, MPLS, L2VPN, L3VPN, EVPNService & Security FeaturesNAT, Firewall Filtering, QoS Hierarchical Scheduling, sFlow, IPsec, RADIUS/TACACS+ AuthenticationManagement ProtocolsCLI, SSH, HTTPS, SNMP v1/v2c/v3, NETCONF/YANG, Junos Space, REST API
Warranty 1 yearImages may not accurately reflect what you will receive. If you have questions about the item or its accessories, or request additional images, please contact us via message.Note: As soon as an order is placed, it will be sent to our technical center for final testing, so be sure to ask any questions before making a quote or placing an order.International shipping service: UPS Fedex or DHL
