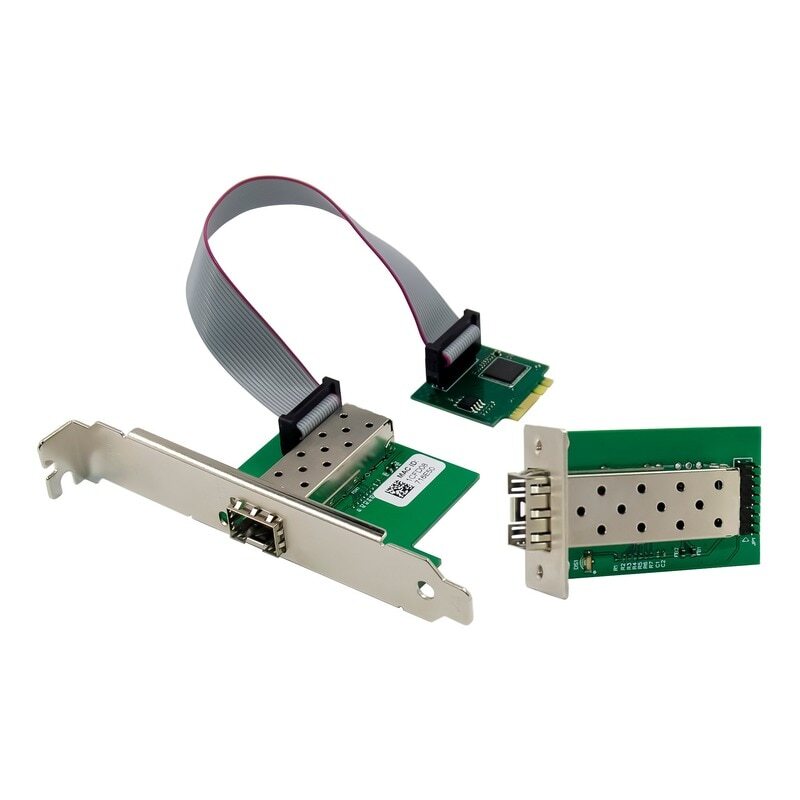

The M.2 A+E Gigabit fiber server network card is a self-developed one based on the Intel I210AS chipset network solution.
Single optical port SFP fiber optic Ethernet network adapter. Support 1000M link rate automatically adapt to the existing Ethernet network.
ME-LGI210A-FB adopts M.2 A+E slot design, which is widely used in industrial computers, embedded computers, single-board computers, digital multimedia and other network equipment, to solve the problem of compact equipment space, and can realize Windows, Linux and other systems support.
The user can choose the fiber optic module according to the actual transmission distance requirements. The adapter card has high performance, high stability, and very good compatibility, and can be compatible with all brands of computers and fiber optic switches.
- SFP slot, supports the following transceivers: Mini GBiC
- 1000SX multi-mode, 1000LX single-mode, 1000BX single-mode WDM
- Chipset: Intel I210AS
- Layer 2 functions: IEEE 802.3x flow control - IEEE 802.1q VLAN
- Support Receive Side Scaling (RSS)
- Support IPv4, IPv6 protocols
- Supports 9K jumbo frames
- Support checksum offload
- Network Type: 1000Base-SX/1000Base-LX, AOC
- Main Controller: Intel I210AS
- Bus card slot: M.2 A+E KEY
- Transmission medium: 1 x SFP fiber interface
- Transfer rate: 1000Mbps
- Network topology: IEEE802.3z 1000BASE-X Gigabit Ethernet
IEEE 802.3x Full Duplex and flow control
IEEE 802.3ad Link aggregation for parallel links
IEEE 802.1Q VLAN, IEEE 1588
IEEE 802.3az - Energy Efficient Ethernet (EEE)
- Features: Support PXE, DPDK, WOL, iSCSI, FCoE, Jumbo Frame, etc.
- Working temperature: 0~55℃
- Storage temperature: -40~70℃
- Storage humidity: 90% non-condensing relative humidity at 35°C
