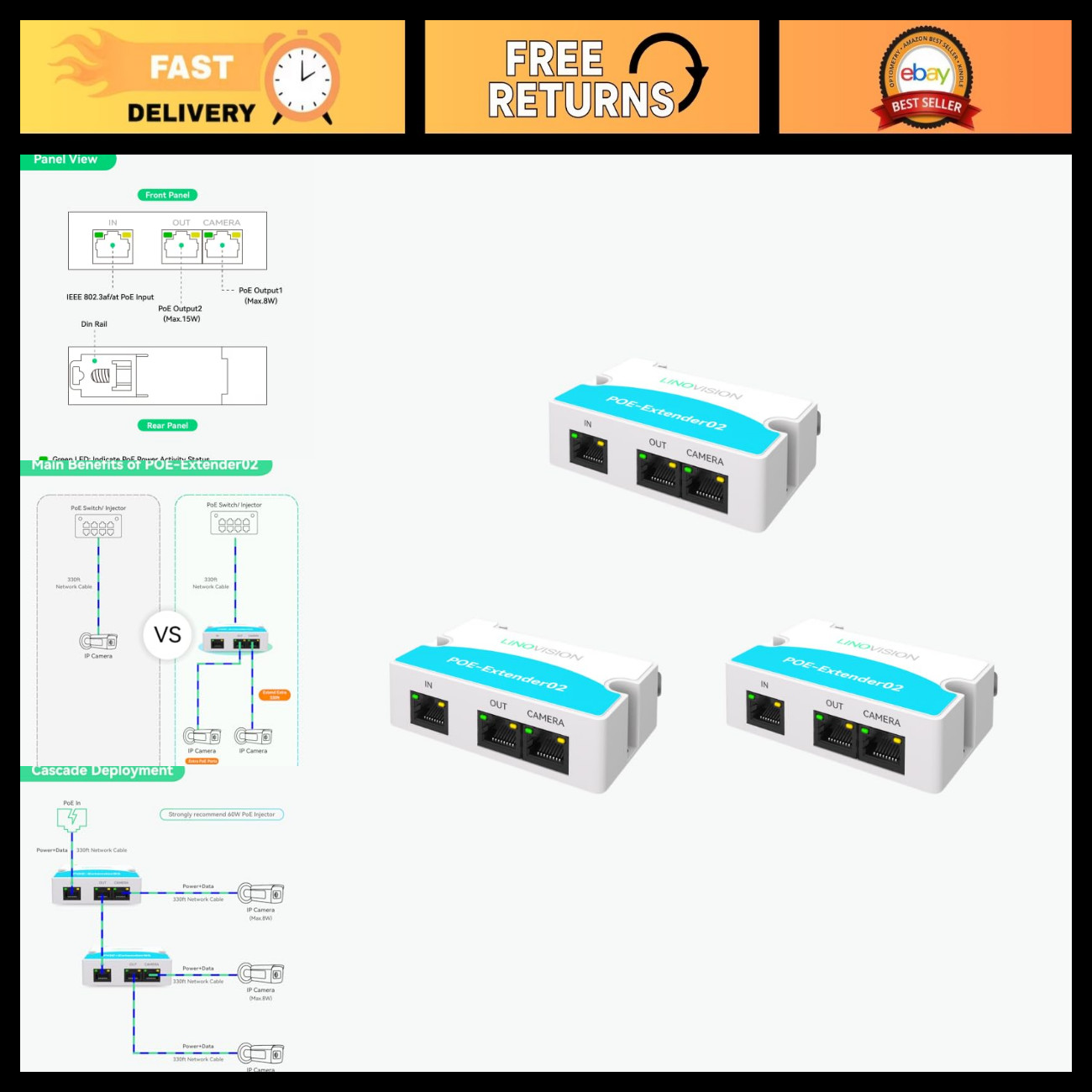

2-Port POE Splitter - Enhance Your Network Connectivity

This innovative 2-port POE extender is designed to effortlessly supply POE power to two devices through a single Cat5E/6 cable, eliminating the need for an additional power adapter. It operates on 48V or 53V from a POE Switch, POE NVR, or POE Injector/Mid-span, allowing you to expand your network with ease.

Key Features:

• Extended Range: Achieve up to 1,000ft of POE and data transmission with the addition of just one Linovision POE Extender. Supports two-level cascade deployment for maximum flexibility.
• IEEE802.3AF/AT Compliance: Compatible with all standard IEEE802.3af/at POE switches, injectors, and NVRs. Supplies power to standard POE devices such as IP cameras, IP phones, and IP speakers.
• Power Specifications: The CAMERA Port supports a maximum power consumption of 8W, while the OUT Port supports up to 15W. Note that bandwidth may decrease with distance.
• Easy Configuration: Simplifies on-site camera setup; installers can easily adjust camera angles and configurations using a laptop or CCTV tester.
• Plug-and-Play Installation: No configuration or setup required! Its compact dimensions (3.1” x 2” x 1”) make it suitable for various junction boxes or outdoor waterproof enclosures.

Version Notes:

The product is available in two versions, shipped randomly. Rest assured that both versions offer the same functionality despite differing panel designs.
