Feature:
1. QUALITY SOUND PROCESSING: The PCIe X1 sound card features a top notch PCI Express multi channel sound processor that supports the latest sound device specifications, delivering high definition sound playback and recording, perfect for headset and headset applications.
2. FLEXIBLE FUNCTIONALITY: With an embedded 8051 microcontroller, the PCIe sound card allows for code downloading, providing enhanced flexibility and functionality tailored to user needs.
3. MULTIPLE SAMPLING RESOLUTIONS: This sound card supports a variety of sampling rates including 192kHz, 176.4kHz, and 96kHz, with both DAC and ADC supporting 16 bit, 24 bit, and 32 bit for comprehensive sound playback and recording.
4. WIDE GAIN RANGE ADJUSTMENTS: The DAC offers a broad analog gain range adjustable from -45dB to 0dB, while the ADC microphone gain can be adjusted from -15dB to +33dB, allowing precise control over your sound inputs and outputs.
5. AI NOISE CANCELLATION: Thesound card for pc incorporates AI noise reduction technology, ensuring two sound channels are free from crosstalk, allowing independent control over each channel's parameters for cleaner sound performance.
Specification:

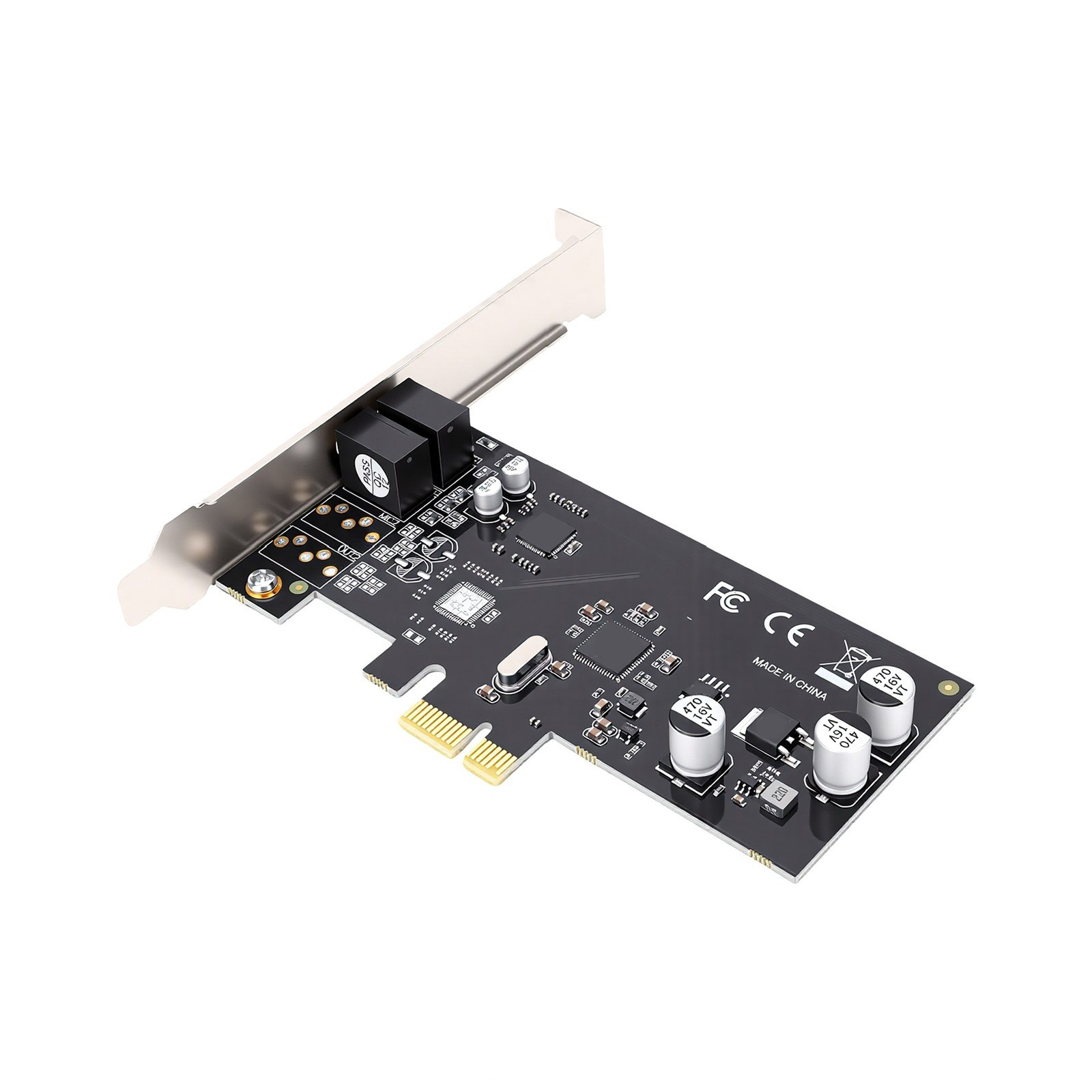

Item Type: PCIe Sound CardMaterial: PCBChipset: 1x CM6646
Sample Resolution: and 16/24/32 Bit
Channel: 2.0
DAC Analog Gain Range: -45-0dB, 1dB/step
ADC Microphone Gain Range: -15-+33dB, 1dB/step
System Requirements: Support for Win10, support for Win11 32bit or 64bit system
Available PCI Express x1 slot
Package List:
1 x Sound Card
1 x Low Profile Bracket
