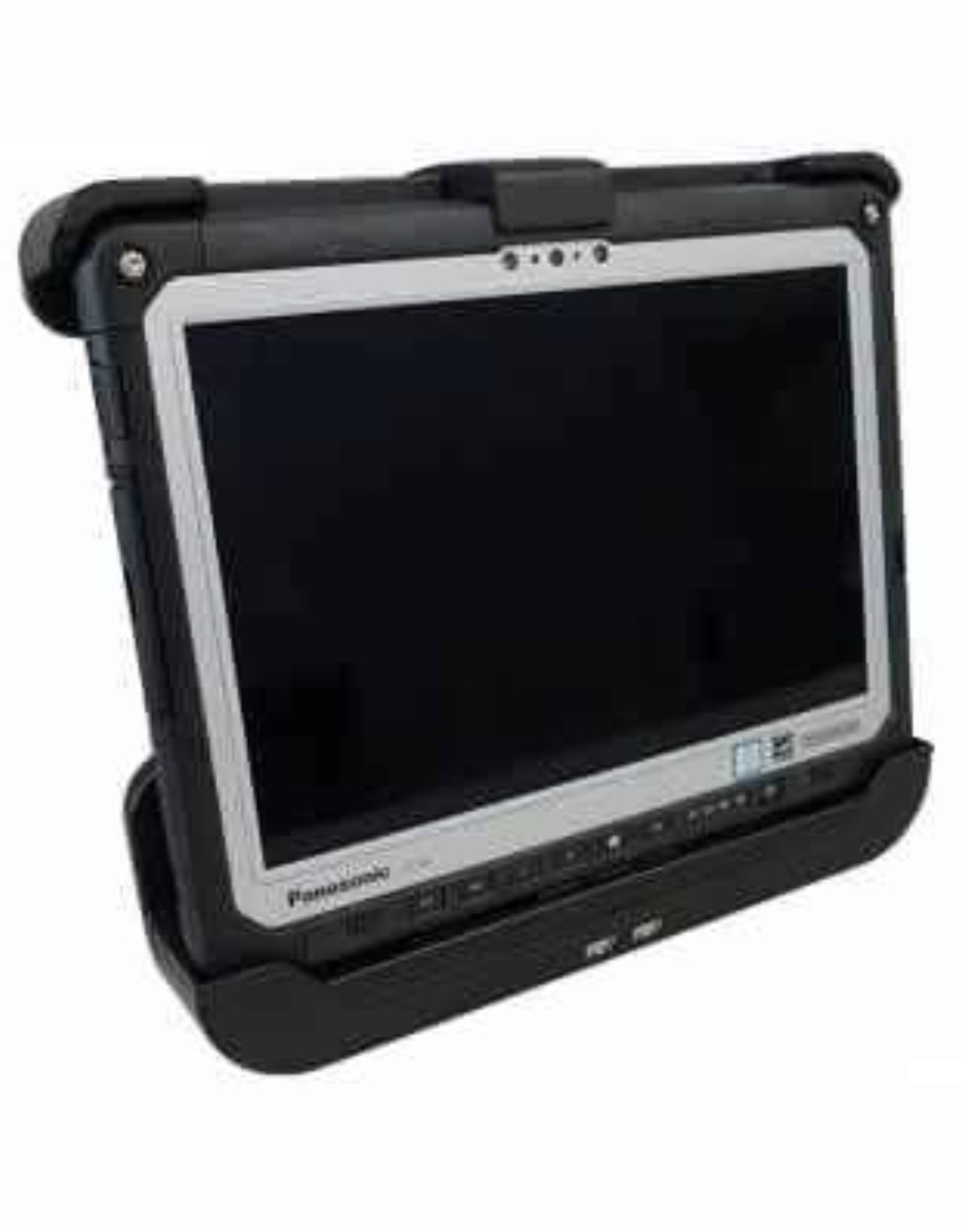

Panasonic Toughbook CF-33 Rugged Tablet – Complete Vehicle Docking Package
Windows 11 Pro | Intel Core i5 | 8GB RAM | 256GB SSD | 4G LTE | GPS/GNSS | Havis Locking Dock
Complete Panasonic Toughbook CF-33 rugged mobile-computing package, including the Toughbook tablet, Havis locking vehicle dock with keys, Motorola keyboard, and both AC and DC power supplies.
Ideal for fleet vehicles, service trucks, field technicians, utilities, industrial applications, off-road navigation, mobile communications, and other demanding environments.
Panasonic Toughbook CF-33 Specifications
- Intel Core i5-7300U processor, 2 cores / 4 threads, up to 3.5GHz
- 8GB RAM
- 256GB solid-state drive
- Windows 11 Pro installed
- 12-inch QHD touchscreen, 2160 × 1440
- Rugged Panasonic Toughbook construction
- Active pen
- Dual removable batteries
- Wi-Fi and Bluetooth
- Front and rear cameras
- HDMI video output
- USB 3.0 connectivity
- RJ-45 Ethernet
- Headphone/microphone connection
- SIM card capability
Integrated GPS and Cellular Hardware
The Toughbook includes an installed Sierra Wireless EM7455B 4G LTE modem and GPS/GNSS hardware.
Windows recognizes the following devices:
- Sierra Wireless EM7455B LTE Modem
- Sierra Wireless Location Sensor
- Sierra Wireless NMEA GPS Port
- u-blox GNSS Location Sensor
Important: GPS/GNSS and cellular hardware are installed and detected by Windows. Live GPS satellite acquisition and cellular network service have not been independently verified.
Cellular service requires a compatible SIM card, supported carrier, and active data plan.
Havis DS-PAN-1201 Locking Vehicle Dock
Includes a commercial-grade Havis docking station designed for the Panasonic Toughbook CF-33 tablet.
Dock features include:
- Secure locking tablet retention
- Dock keys included
- 4 USB 2.0 ports
- 2 USB 3.0 ports
- 2 RJ-45 Ethernet ports
- DB9 serial connection
- DC power input
- Rear mounting interface for compatible vehicle hardware
The docking station accommodates the detached tablet configuration. Individual dock interface ports have not all been functionally tested.
Vehicle mounting hardware is not included. Buyers must supply an appropriate pedestal, dashboard mount, console bracket, or other compatible mounting solution.
Complete Package Includes
1. Panasonic Toughbook CF-33 rugged tablet
2. Motorola rugged external keyboard
3. Havis DS-PAN-1201 locking vehicle dock
4. Havis dock keys
5. Panasonic AC wall power adapter
6. Lind DC vehicle power adapter
7. Active pen
8. Two removable Toughbook batteries
The Lind vehicle power adapter may require professional hardwire installation.
Condition
Used commercial-grade equipment with normal cosmetic wear consistent with previous service.
The Toughbook powers on and boots into Windows 11 Pro. The touchscreen and external keyboard are operational.
Windows 11 Pro is installed and running; however, the 7th-generation Intel processor is not on Microsoft's officially supported Windows 11 CPU list.
Battery runtime, cellular activation, live GPS satellite acquisition, and any functions not expressly described as tested are not guaranteed.
Please review all photographs for the included components and their cosmetic condition.
Suitable for mobile vehicle computing, utility fleet operations, construction, field diagnostics, industrial environments, logistics, navigation, amateur radio installations, and general rugged computing.
A complete Toughbook field-computing bundle with commercial vehicle docking equipment and both AC and DC power options.
