VX97-V 1.02.

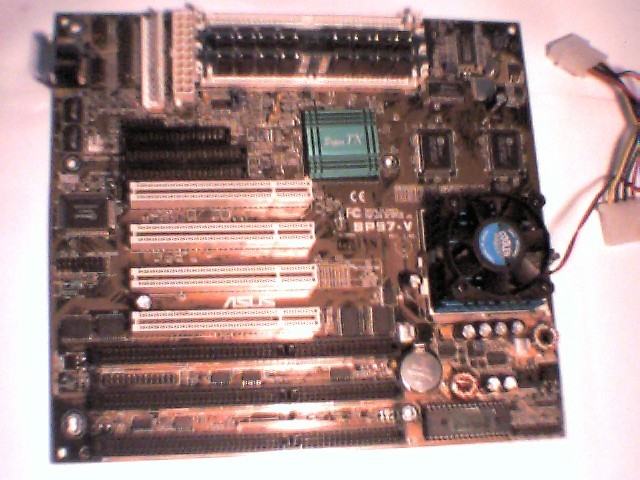

Very Nice Super TX Socket7 Pentium Motherboard
Made by ASUS in 1997rare example of an historically significant bridge productthat established the viability of moving the industry away from and far beyond the Intel monopolyand also proved the viability of integrated video support such as the AGP port
Comes with a Intel 200MHz MMX CPU
but will support many faster CPUs and Pentium OverDrive
as well as the K6-2/500

Motherboard is 8.75 inches by 11 inches

and has both the AT and ATX power supply connectors

built around the SuperTX SiS5598 chipset and Winbond W83877F Super I/O chip

there is some vague info that AMD developed a "Socket Super 7" or "Super7" tech

but we have never seen any official AMD documentation to support such a term

be aware that "Super Socket 7" is slang and is not a industry defined or copyrighted term

this motherboard is Super Socket7 as in more, much much more, than the official Intel Socket7 specification

This motherboard has video supportintegratedinto the main memory controller chip

that is equivalent to AGP, as AGP is merely PCI video with dedicated access to the memory controller

and many motherboards have AGP integrated video without an actual AGP slot

this motherboard was developed as AGP was still being defined

This motherboard has official bus speeds up to 75MHz and semi-official speeds higher than that

(manual states "when bus speed is set to 75MHz or more ...")

and rumors are that it goes up to 85MHz which is way super to the official Intel Socket7 definition

this motherboard anticipated the higher speed CPUs

Three 16-bit ISA slots and four PCI slots

Four 72-pin RAM slots, maximum 256MB, comes with 64MB installed

Comes with 512K of cache onboard

NEAT!! Has custom SP97-V BIOS style="font-size: 14pt; text-align: center; font-weight: bold;">Just the motherboard, no cables, no manual, no software.

(if you really need the cables then ask us BEFORE buying and we will check)

USED but in good condition. WORKING.
OVERSEAS does not provide tracking or insurance.

We do not misrepresent the import value of items.

ZOZ-116-8134
