Add More GPUs to Your AI Compute System
Build or expand a multi-GPU workstation using this powered PCIe x1 to x16 GPU riser kit. It allows a full-size graphics or compute card to be installed away from the motherboard, making it useful for open-frame AI systems, GPU test benches, rendering machines, and other multi-GPU configurations.
The separate riser design provides additional installation flexibility when motherboard slot spacing, GPU size, or cooling requirements prevent the card from being installed directly into the system.
Suitable Applications
- Multi-GPU AI inference systems
- Local LLM and machine-learning experimentation
- GPU compute and development workstations
- Rendering and distributed processing
- Open-air GPU test benches
- Cryptocurrency mining systems
Product Specifications
- Version: 009C Plus
- Motherboard connection: PCIe x1
- GPU connector: Physical PCIe x16 slot
- Data cable length: approximately 60 cm
- Power input: PCIe 6-pin
- Eight solid capacitors for power filtering
- Integrated fuse and status indicators
- Four mounting holes
- Riser-board dimensions: approximately 13 × 4.4 × 1.2 cm
- No separate riser driver required

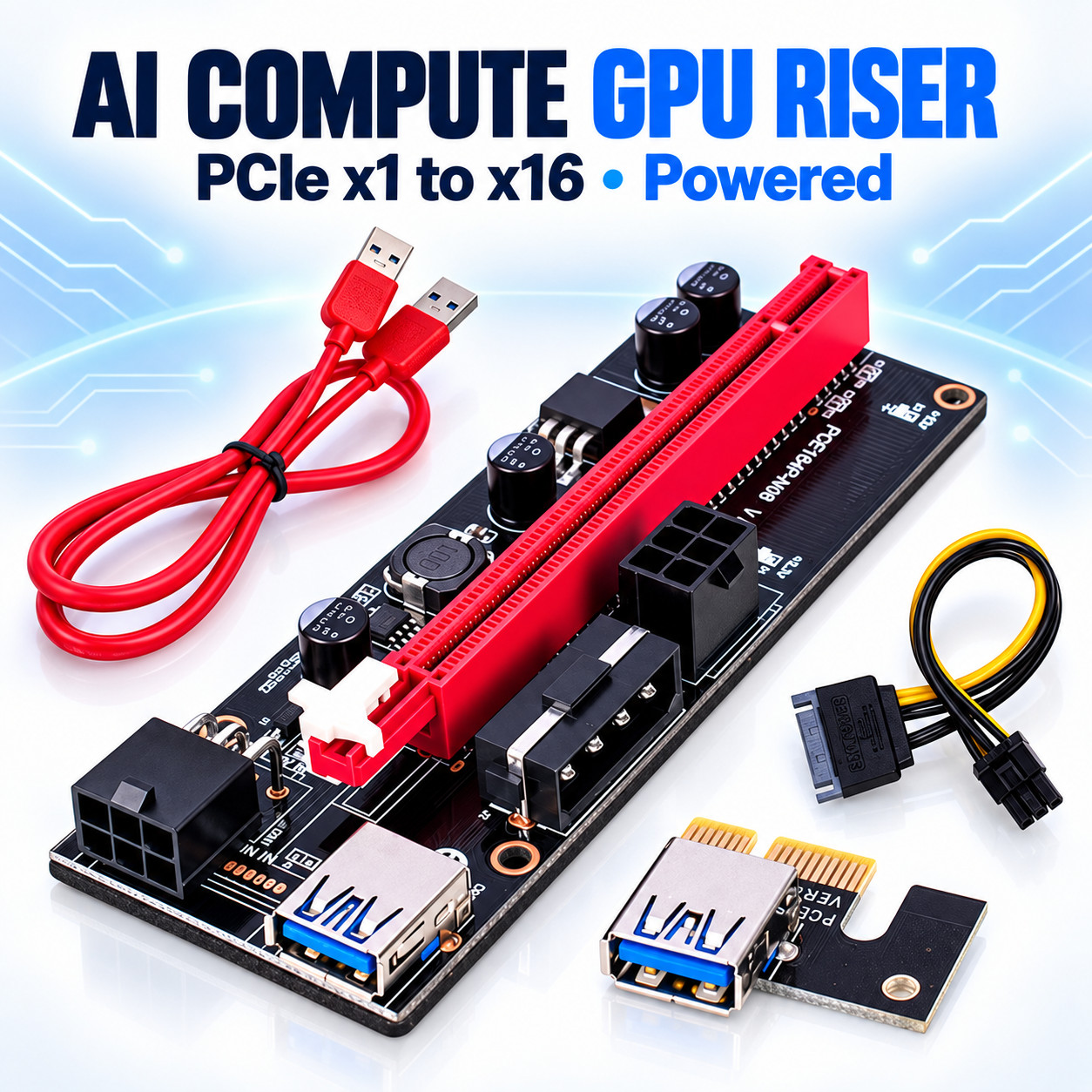

Package Contents
- 1 × powered PCIe x16 riser board
- 1 × PCIe x1 motherboard adapter
- 1 × 60 cm red USB-style data cable
- 1 × SATA 15-pin to PCIe 6-pin power adapter
Important Bandwidth Information
This product provides a physical PCIe x16 slot operating through a PCIe x1 connection. It does not convert the motherboard slot into a full-bandwidth PCIe x16 interface.
It is best suited to GPU workloads that can remain primarily inside GPU memory after loading. Workloads involving frequent transfers between the CPU and GPU may experience reduced performance.
Installation and Safety
- Completely shut down and disconnect the system before installation.
- Never install, remove, or hot-swap the riser while power is connected.
- The included USB-style cable carries PCIe data and must only be connected between the included PCIe adapter and riser board.
- Do not connect this cable or riser to a normal USB port.
- Make sure the GPU and riser receive sufficient power from a suitable power supply.
- Direct PCIe power from the PSU is recommended for demanding installations.
- The included SATA adapter should only be used within the safe power limits of the SATA connector.
- Check motherboard, BIOS, operating-system, driver, and GPU compatibility before purchase.
- Additional GPUs may require BIOS settings such as Above 4G Decoding.
- AI software, GPU-memory capacity, and performance are determined by the installed GPU and system configuration.
Quantity
One complete powered GPU riser kit per order.
GPU, motherboard, power supply, computer frame, and other pictured equipment are not included.
