SIIG 4 Port Gigabit Ethernet with POE PCIe Card - Intel 350 SIIG 4 Port Gigabit Ethernet with POE PCIe Card - Intel 350
International Customers: All electronic products are packaged for sale in the US with US voltage.

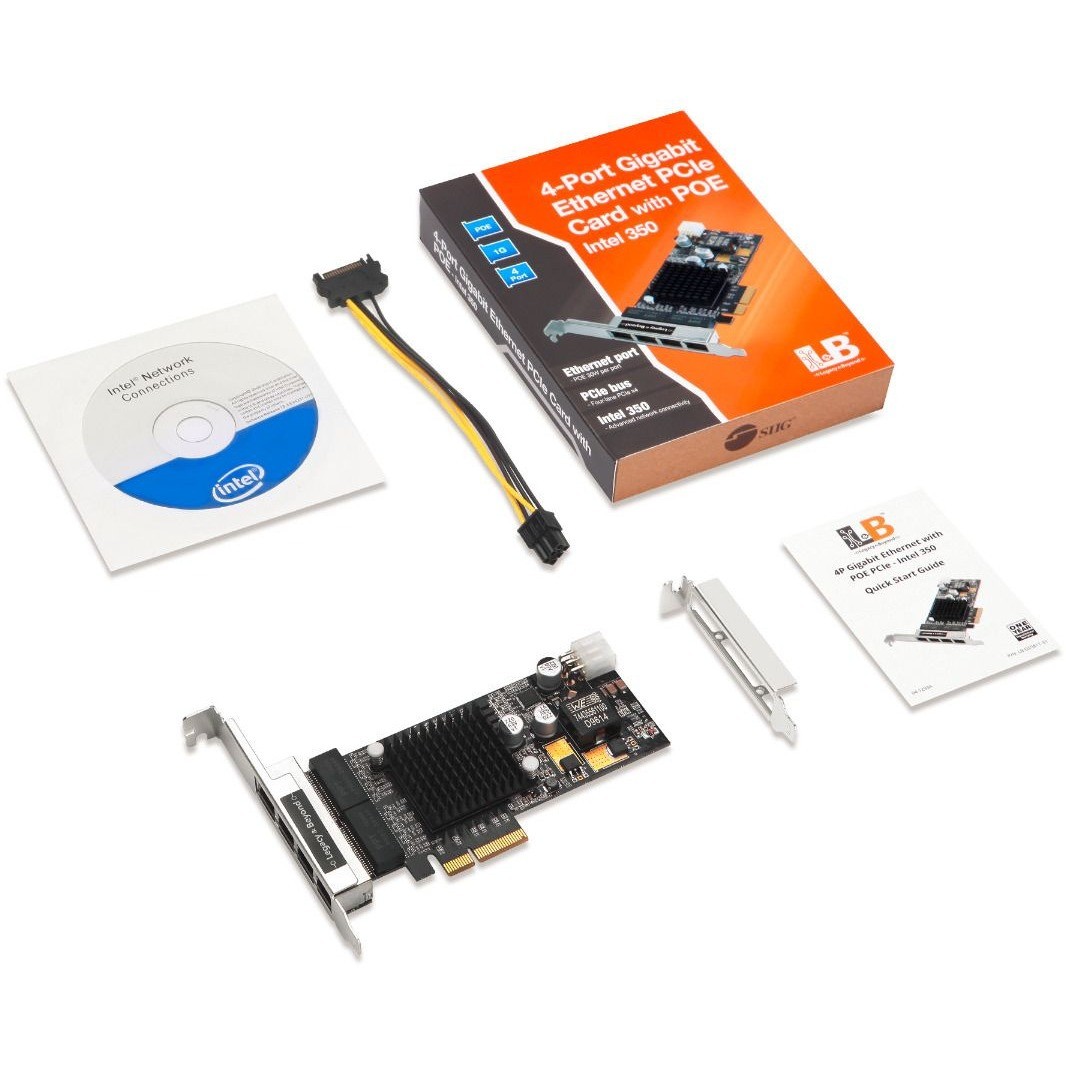

Package Contents: 4-Port Gigabit Ethernet with PoE PCIe Card - Intel 350 Driver CD SATA to 6-pin Molex Power Cable Low Profile Bracket Quick Start Guide
Environmentally Friendly: Yes
Device Supported:
Country of Origin: Switzerland
Product Description
This item is brand-new, factory sealed.
SIIG 4-Port Gigabit Ethernet with PoE PCIe Card - Intel 350
- Adds four independent Gigabit Ethernet ports through an available PCI Express slot to server or desktop systems, with Power over Ethernet capability Intel I350-T4 chipset supports reliable and advanced network connectivity
- Compliant with IEEE 802.3, 802.3u, 802.3ab with full duplex and Wake-on-LAN support Supports IEEE 802.3at PoE+ standard, with up to 30W power output per port
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE) Supports PXE network boot
- Features innovative power management including Energy Efficient Ethernet (EEE) and DMA Coalescing to increase efficiency and reduce power consumption Supports IEEE standard 802.1Q for VLAN
- Advanced Configuration and Power Interface (ACPI) power management states and wake-up capability Advanced Power Management (APM) wake-up functionality Supports 12V mini-fit 6-pin power connector input
- Product Dimensions: 4.72 x 6.42 x 0.87 inches
- Item Weight: 4 pounds
Specifications:
Chipset: Intel I350-T4
Network transfer rate: 10M / 100M / 1G
PCI Express specification: PCI Express 2.1 (5.0 GT/s)
Bus connector: x4 Lane PCI Express
Industry Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.1Q VLANs, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
Cable length:
1000BASE-T: 100m for CAT 5e, CAT 6 or CAT 6A
100BASE-T: 100m for CAT 5e, CAT 6 or CAT 6A
10BASE-T: 100m for CAT 5e, CAT 6 or CAT 6
Power over Ethernet: Support 30 Watts (Max) power output per port (52V DC)
Power Supply: 12V Mini-Fit 6-pin Power, 70W (Max input)
Power Pin assignment: 1/2 (+), 3/6(-)
Product:
Dimensions: 6.42" (L) x 0.87" (H) x 4.72" (W)
Weight: 0.25 lbs
Color: Black
Connectors: 4x 8-Pin RJ-45 Female
Environmental conditions:
Operating temperature: 41 to 122 degrees F
Storage temperature: -13 to 158 degrees F
Relative humidity: 20% to 80% RH FCC, CE, RoHS
Warranty: 1 year limited
Country of origin: China
System Requirements:
An available PCIe x4 or larger PCI Express slot
Windows 10 / 8.x / 7
Windows Server 2016 / 2012 / 2008 R2
Package contents:
4-Port Gigabit Ethernet with POE PCIe Card - Intel 350
Driver CD
SATA to 6-pin Molex power cable
Low profile bracket
Quick Start Guide
Package Contents:
- 4-Port Gigabit Ethernet with PoE PCIe Card - Intel 350
- Driver CD
- SATA to 6-pin Molex Power Cable
- Low Profile Bracket
- Quick Start Guide
SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)4 ozProduct ColorBlackHeight0.9"Color Warranty1 YearInterfaces/PortsTotal Number of Ports4Host InterfacePCI Express 2.1 x4Number of Network (RJ-45) Ports4General InformationBrand NameSIIGMarketing Information Quickly adds four independent Gigabit Ethernet ports with PoE through an available PCI Express slot to server or desktop systems Adds four independent Gigabit Ethernet ports through an available PCI Express slot to server or desktop systems, with Power over Ethernet capability Intel I350-T4 chipset supports reliable and advanced network connectivity Compliant with IEEE 802.3, 802.3u, 802.3ab with full duplex and Wake-on-LAN support Supports IEEE 802.3at PoE+ standard, with up to 30W power output per port Supports IEEE 802.3az Energy Efficient Ethernet (EEE) Supports PXE network boot Features innovative power management including Energy Efficient Ethernet (EEE) and DMA Coalescing to increase efficiency and reduce power consumption Supports IEEE standard 802.1Q for VLAN Advanced Configuration and Power Interface (ACPI) power management states and wake-up capability Advanced Power Management (APM) wake-up functionality Supports 12V mini-fit 6-pin power connector input Powered device (PD) auto detection and classification Fits both standard height and low profile system chassis with the included full size and spare low profile brackets Product TypeGigabit Ethernet CardProduct Name4-Port Gigabit Ethernet with PoE PCIe Card - Intel 350ManufacturerSIIG, IncManufacturer Part NumberLB-GE0811-S1Media & PerformanceMedia Type SupportedTwisted PairTitleProduct TitleSIIG 4 Port Gigabit Ethernet with POE PCIe Card - Intel 350 (LBGE0811S1)Network & CommunicationNetwork Technology10/100/1000Base-T Shipping
