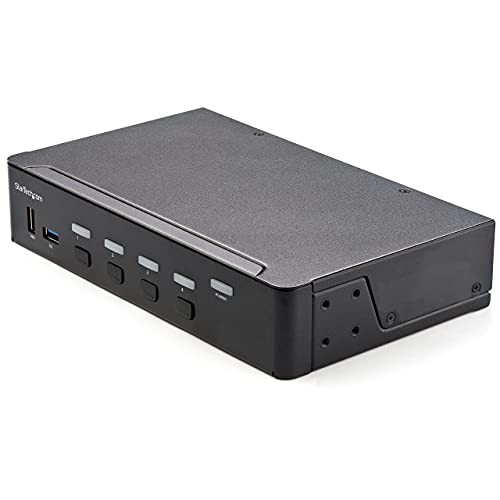

StarTech 4 Port HDMI KVM Switch 4K 60Hz UHD HDR StarTech 4 Port HDMI KVM Switch 4K 60Hz UHD HDR
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: KVM Switch Universal Power Adapter (NA/JP, EU, UK, NZ) Rubber Feet Quick-Start Guide
TAA Compliant: Yes
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
4 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) and 4x USB 2.0 HID, Audio - Hotkey Switching TAA
4K 60Hz UHD: 4 Port HDMI KVM switch supports up to 4K at 60Hz on one monitor for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
FAST SWITCHING: Includes EDID and HDCP signal emulation so monitors stay synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow while switching between up to 4 computers
TECH SPECS: 4-Port HDMI 2.0 | 3840 x 2160 | HDCP 2.2 | HDR10 Support | 2 Port USB 3.0 Hub (5Gbps)| 4x USB HID | Hotkey, Push Buttons | Stereo Analog + 7.1 Digital Audio | EDID & HDCP Emulation | OS Independent
USER-FRIENDLY: KVM switch with compact & durable steel housing featuring easily accessible buttons & front-mounted integrated USB switch (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This KVM (Keyboard, Video/Monitor, Mouse) Switch is backed for 2-years by , including free 24/5 North America based multi-lingual tech support
This 4 port KVM switch combines 4K (60Hz) digital display capabilities with control of our connected computers.
4K 60Hz Picture and Full Audio Support
The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.
With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility. Connector(s)
Console Interface(s)
1 - 19 pin HDMI Female
1 - 3.5 mm Audio Female
2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
4 - USB Type-A (4 pin, HID Port) USB 1.1
Host Connectors
4 - 19 pin HDMI Female
4 - 3.5 mm Stereo Audio (3 Position) Female
4 - 9 pin USB 3.0 B Female
Other Interface(s)
1 - USB Mini-B (5 pin) Environmental
Operating Temperature
0oC to 40oC
Storage Temperature
-10oC to 60oC
Humidity
0% to 80% Hardware
U Height
1U
Audio
Yes
Cables Included
No
Daisy-Chain
No
Number of Monitors Supported
1
KVM Ports
4
Rack-Mountable
No
PC Interface
USB 3.2 Gen 1 (5Gbps)
PC Video Type
HDMI
Chipset ID
Genesys Logic - GL3523 Indicators
LED Indicators
1 - Green (Power)
4 - Green (PC Power/Sync)
4 - Red (Selected Host) Performance
Audio Specifications
HDMI - 7.1 Channel Audio
HDMI - 2 Channel Audio
Analog Stereo - 2 Channel Audio
Auto Scan
3, 8, 15 and 30 seconds
MTBF
143 000 hrs
Port Selection Support
Push Button and Hotkeys
On-Screen Display
No
Video Revision
HDMI 2.0
IP Control
No
Hot-Key Selection
Yes
Supported Resolutions
3840 x 2160 at 60Hz
Wide Screen Supported
Yes
Maximum Number of Users
1 Color
Black Material
Steel Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
1.0A
Output Voltage
12V DC
Output Current
3A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
36W Whats in the Box
Included in Package
1 - KVM Switch
1 - Universal Power Adapter (NA/JP, EU, UK, NZ)
4 - Rubber Feet
1 - Quick-Start GuideItem Dimension (L inchxW inchxH inch)
4 x 17 x 9
Weight
5.00 lb
Warranty Information
2 Year Warranty SpecificationPower DescriptionInput Voltage Range100V AC to 240V ACPower Plug TypeType MInput Voltage
Physical CharacteristicsForm FactorDesktopWeight (Approximate)2.40 lbProduct ColorBlackHeight1.7"Color Warranty2 YearInterfaces/PortsNumber of USB Ports10Number of HDMI Ports5USBYesHDMIYesVideoMaximum Video Resolution3840 x 2160General InformationBrand Name
