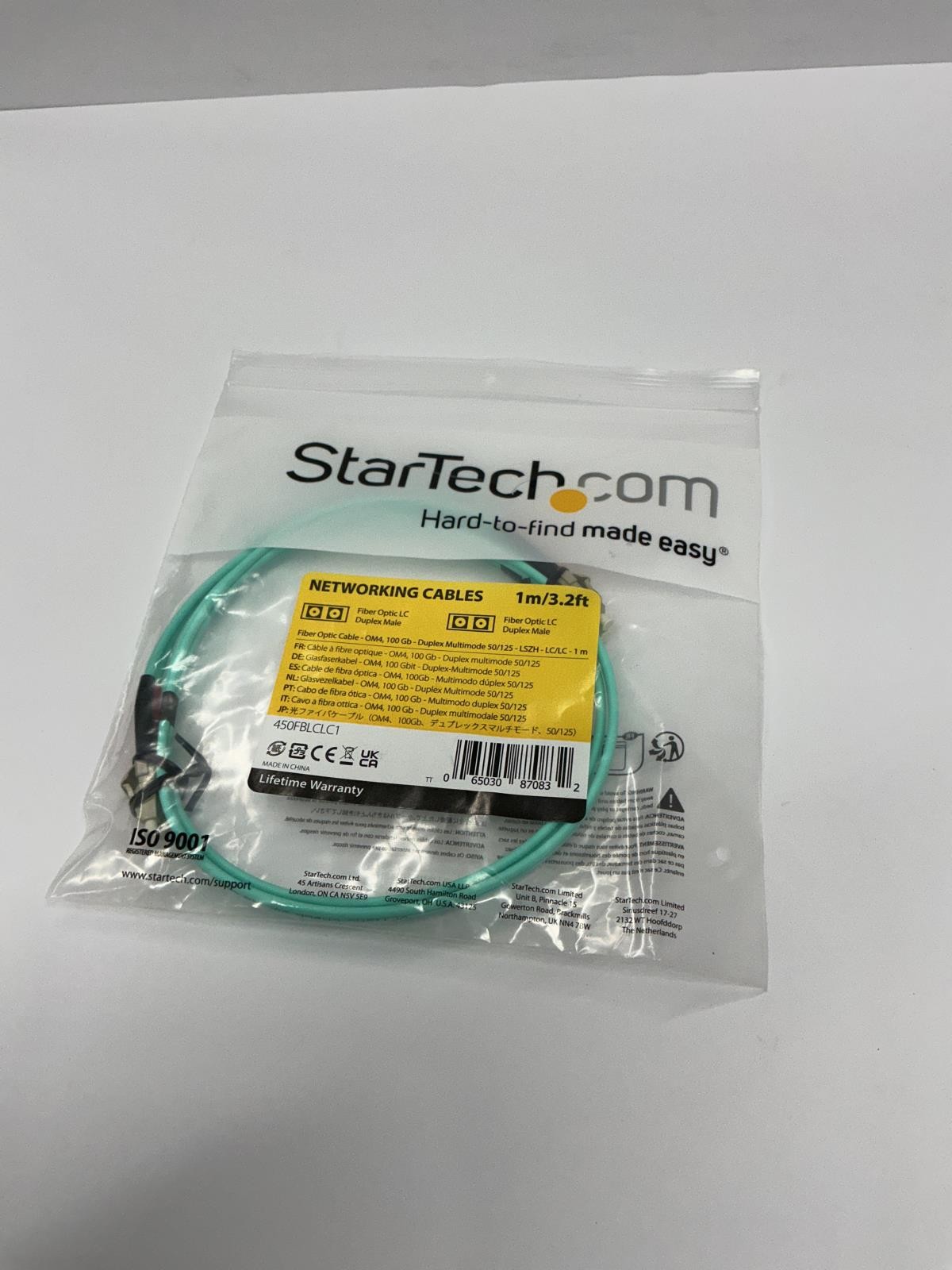

Startech 1M 3.2' Fiber Optic Cable LC/LC Male Duplex OM4 100GB 450FBLCLC1
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Startech 1M 3.2' Fiber Optic Cable LC/LC Male Duplex OM4 100GB 450FBLCLC1
Price: US $15.99
template postingCondition:  New Factory SealedStarTech 450FBLCLC1 Specifications

StarTech LC to LC Multimode Duplex Fiber Optic Patch Cable

    At a Glance




    • OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable is immune to EMI and supports up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors enable quick visual identification of polarity and conversion to simplex cabling
    • QUALITY CONSTRUCTION: LC/LC connectors with UPC polished ends significantly improves return loss over PC polish; Robust molded connector strain reliefs minimizes wear from bending; Protective Aramid fiber for increased tensile strength
    • SAFETY AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and toxic fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
    • WIDE COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
    • SPECS: 1m (3.3ft); Color: Aqua (OM4); LC/LC UPC; 50/125µm Core/Cladding; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
      Overview



      This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.



        Features



        Halogen Free

        Flame Retardant

        Corrosion Resistant

          Device Supported



          Network Device

          Transceiver

            Specifications General InformationProduct NameStarTech.com LC to LC Multimode Duplex Fiber Optic Patch CableManufacturer Part Number450FBLCLC1Packaged Quantity1 EachProduct TypeNetwork CableTechnical InformationCable TypeFiber OpticCable CharacteristicPatch CableFiber Optic ModeMulti-modeFiber Optic Cable Core / Cladding Specification50/125 µmCable Length3.28 ftConnector Type on First EndLC Network - MaleConnector Gender on First EndMaleConnector on First End Details2 x LC Network - MaleConnector Type on Second EndLC Network - MaleConnector Gender on Second EndMaleConnector on Second End Details2 x LC Network - MaleJacket TypeLSZHData Transfer Rate100 Gbit/sPhysical CharacteristicsColor FamilyGreenProduct ComplianceRestriction of Hazardous Substances (RoHS)

            Waste Electrical and Electronic Equipment Directive (WEEE)

            Country of OriginChina
