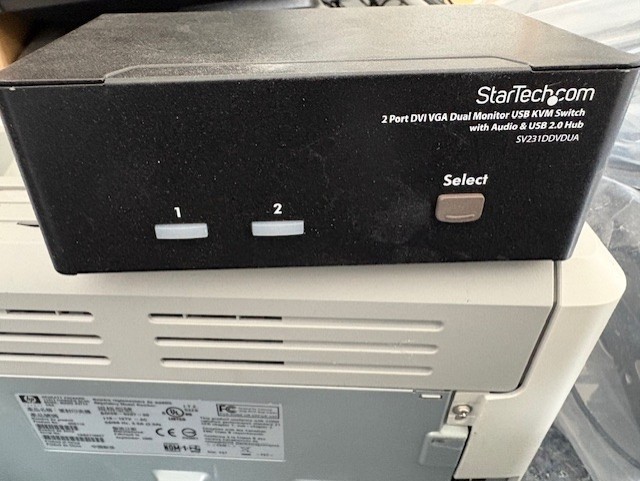

Item is used - cosmetics will be similar to the pictured unit (shows signs of wear, scratches & scuffs). These units were pulled from the office, selling them for parts or used. Specs can be found below in the description provided.🔌 Ports & ConnectivityConsole (your keyboard/mouse/monitor setup):
1 × DVI-I (29-pin) female (digital display)
1 × VGA (15-pin) female (analog display)
4 × USB-A female (USB 2.0 hub ports)
2 × 3.5 mm mini-jack female (audio & mic)
B&H Photo VideoHost (to connect computers):
2 × DVI-I (29-pin) female
2 × VGA (15-pin) female
2 × USB-B (4-pin) female
4 × 3.5 mm mini-jack female (audio & mic)
📊 Video Support
Dual monitor support per PC: one VGA and one DVI-I output per computer
Maximum resolution: 1920 × 1200 (WUXGA)
Supports DDC2B / EDID pass-through (helps displays auto-configure)
HDCP compliant (for protected digital content)
🖱️ USB & Peripheral Sharing
USB 2.0 hub: share up to 2 USB peripherals (beyond keyboard + mouse) with both PCs
Full plug-and-play: no drivers required; OS independent
🎧 Audio
2 × 3.5 mm analog audio switching
Includes microphone input and speaker/headphone output switching functionality
⚙️ Control & Switching
Front push-button switching
Keyboard hotkey switching
Audible tone indicator for active channel switching
