Sun Oracle Network 10GbE Switch 72P 16x QSFP 8x SFP+ 72-Port 1U Switch - 7055019 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

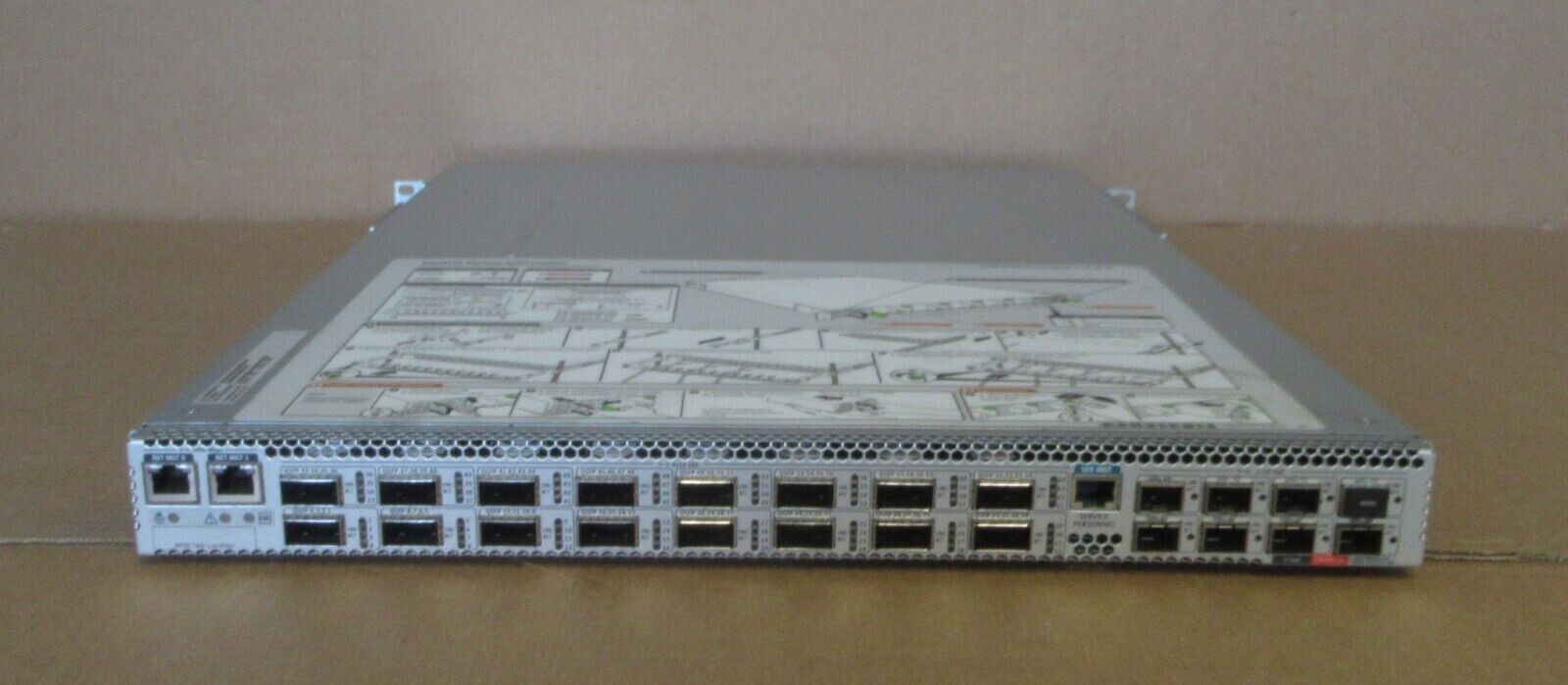

Sun Oracle Network 10GbE Switch 72P 16x QSFP 8x SFP+ 72-Port 1U Switch - 7055019

Price: GB $2800.00

Sun Oracle Network 10GbE Switch 72P 16x QSFP 8x SFP+

72-Port 1U Switch - 7055019

Sun P/N:7055019

In Good Condition, Full Working Order
Tested
2 Year Warranty

Includes:

1 x Sun Oracle Network 10GbE Switch 72P 16x QSFP 8x SFP+ 72-Port 1U Switch - 7055019
5 x Fan Modules - 7061031
2 x Sun Oracle 760W Power Supply - 300-2299-01

Description:The Sun Network 10GE Switch 72p is a 72 port 10 Gigabit Ethernet ToR switch thatoffers systems and network administrators unprecedented density and functionalitywrapped in a single rack unit.The Sun ToR switch has a unique front panel arrangement designed to accommodate72 10GbE wire rate ports. Front panel switch ports are composed of 8 conventionalSFP+ ports combined with 16 QSFP (Quad Small Form Factor Pluggable) cages.Each QSFP cage supplies 4 individual 10GbE connections (contributing 64additional ports) that can be carried in a single cable (40GbE) or split into individual10GbE interconnects using a variety of copper and fiber cabling options.This high density switch enables a cost efficient, scalable connectivity to the servers,storage and to existing data center networks. It has enough density to build a sizablefabric within a single tier that operates at full bandwidth without the need forspanning tree protocol. A single Sun ToR switch can easily displace 3 discrete 24-port or 2 discrete 48-port switches resulting in significant savings.
Additionally, the Sun ToR switch represents a single point of management for up to72 servers thus further reducing the costs when compared to meshes of 24-port and48-port solutions. It is tightly integrated with Sun's standard server management interface, ILOM, for initialization and physical management, giving the customersthe ability to manage their network and server s from the same interface.
SpecificationsNetwork

6 QSFP Connector ports: Each connector has 4 10GbE ports totaling 64 ports
altogether
8 10GbE SFP+ ports
1 serial service port (RJ45)
2 1000BaseT out of band management ports

Form Factor

1RU Unit

High Availability

Fully 10 Gbps, low latency cut-through design in each port non- blocking10Gbps (downlink and uplink)
Layer 2 hardware forwarding at 1,440 Gbps or 1071 million packets per second(mpps)
MAC address table entries 16k

Ethernet Layer 2 And 3 FeaturesVLAN support:

EEE 802.1Q VLAN encapsulation
IEEE 802.1D GVRP/GMRP support for dynamic VLAN management
Up to 4094 VLAN entries

Spanning Tree:

IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Reconfiguration Spanning Tree
IEEE 802.1s Multiple Spanning Tree

Link Aggregation:

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

Security, Priority Management

IEEE 802.1x Port Based Authentication with EAP
DHCP server RFC 2131
DHCP relay agent RFC 2131
Firewall and DoS attack protection
IEEE 802.1p Priority based Class of Service (CoS)

IGMP Snooping

Rate control per port
Port Mirroring
Broadcast storm control

IP Routing

Static routing
RIP v1/v2 - RFC 1058 2453
OSPF v2 - RFC 2328
Management
Support for Ethernet MIB (RFC 2665)
RMON (1,2,3 and 9 groups), RFC 2819
SNMP v1/v2c/v3 - RFC 1905 3411 3412 and CLI standard server management interface: ILOM v3
SNMP
Industry CLI
SSH
Web Interface for ILOM
IPMP interface

QoS

Layer 2 IEEE 802.1p (CoS)
8 hardware queues per port
Per-port QoS configuration
Port-based CoS assignment
Access control list (ACL)-based QoS classification (Layers 2, 3 and 4)
CoS-based egress queuing
Egress strict-priority queuing
Egress port-based scheduling: Weighted Deficit Round-Robin (WDRR)

Security

Ingress ACLs (standard and extended) on Ethernet and virtual Ethernet ports
Layer 2 ACLs: MAC addresses, VLAN
Extended Layer 3 to 4 ACLs: Ipv4, Internet Control Message Protocol (ICMP),
TCP, User Datagram Protocol (UDP), Port #, etc.

Regulatory Compliance

EMI FCC Part 15 Class A,ICES-003 Class A, VCCI Class A
Safety: UL/CSA 60950-1, EN60950-1, IEC 60950 -1 CB Scheme with all countrydeviations
RFI/EMC: EN55022/CISPR 22, Class A, FCC CFR47 Part 15 Class A, EN61000 -3-2, EN61000 -3 -3
Immunity: EN55024/CISPR 24
Regulatory marks: CE, FCC, ICES-003, C-tick, VCCI, GOST-R, BSMI, KCC,UL/cUL S-Mark
RoHS 6 Compliant

Operating Environment

Voltage: AC input (120V: 60Hz: 8.8A max)
Operating Temperature 5º C to 35º C (41º F to 95º F)
Operating Humidity 10% to 90% relative humidity, non-condensing, 27º C
maximum wet bulb
Operating Altitude Up to 3,000m, max. ambient temperature is de-rated by 1° C per
300m above 900m
Non-Operating Temperature -40º C to 65º C (-40º F to 149º F)
Non-Operating Humidity Up to 93% relative humidity, non-condensing, 38º C
maximum wet bulb
Non-Operating Altitude Up to 12,000m

Dimensions and Weight
