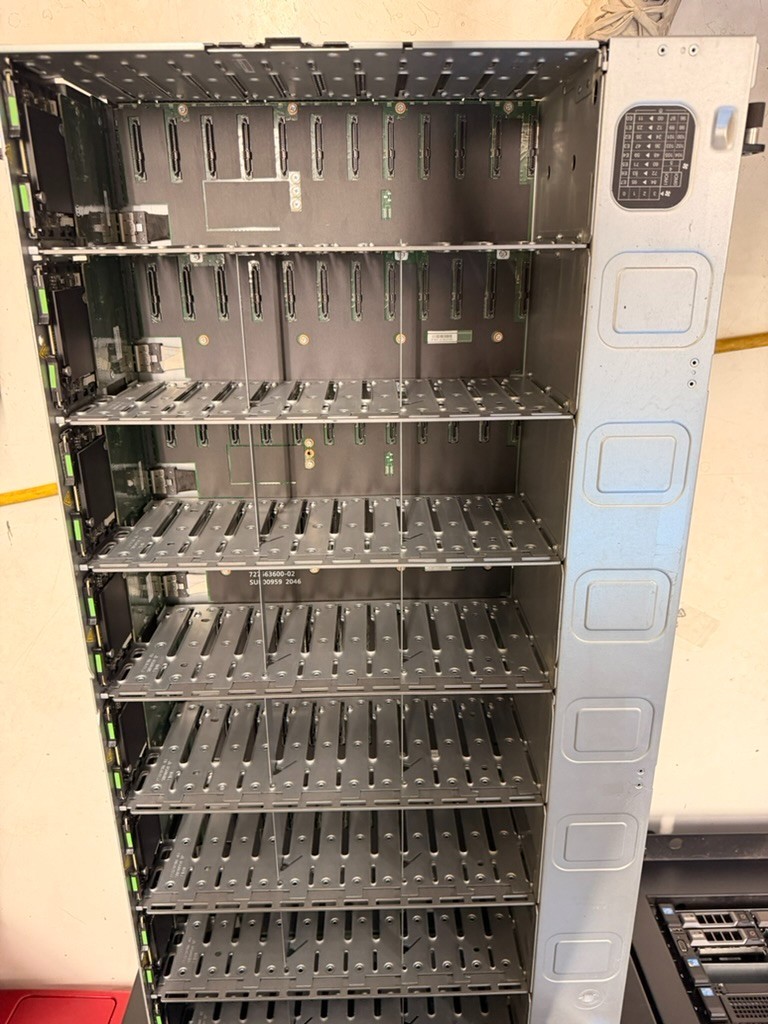

Enclosure: Supermicro SuperChassis CSE-946ED-R2KJBOD

Form Factor: 4U Rackmount

• Drive Bay Capacity: 90x top-loading hot-swappable 3.5" (or 2.5") SAS3/SATA3 drive slots (no drives included)

• Expanders: Dual hot-swappable 12Gb/s expander modules for redundant pathing and failover support

• Remote Management:

Dedicated redundant BMC expanders for remote out-of-band system power control and health monitoring

• Performance: High-performance architectural throughput of up to 20+ GB/s data transfer rate

• Power Supplies: 4x 1000W N+1 redundant Platinum-certified power supplies (hot-swappable)

• Zoning: Highly configurable zoning options, supporting up to 4 hosts

• Included Accessories: Outer slide rails and Cable Management Arm (CMA)

Controller Card: LSI Broadcom SAS 9300-8e external HBA

Interface: PCI-Express 3.0 x8

• Ports: 8-port external SAS/SATA host connectivity

• Connectors: 2x Mini-SAS HD (SFF-8644) external ports

• Speed: 12Gb/s SAS-3 standard

• Controller Chip: LSI SAS3008

• Device Support: Can scale up to 1024 non-RAID SAS or SATA devices utilizing SAS expanders

• Throughput Capability: Reaches over 1,000,000 IOPS performance

• Form Factor: Low-profile plug-in card design

Included Cabling & Power

1x Supermicro CBL-SAST-0573 1-meter external SAS cables (SFF-8644 to SFF-8644, 28AWG)

• Heavy-duty AC power cords (NEMA 5-15P to C13, 2.1m)
