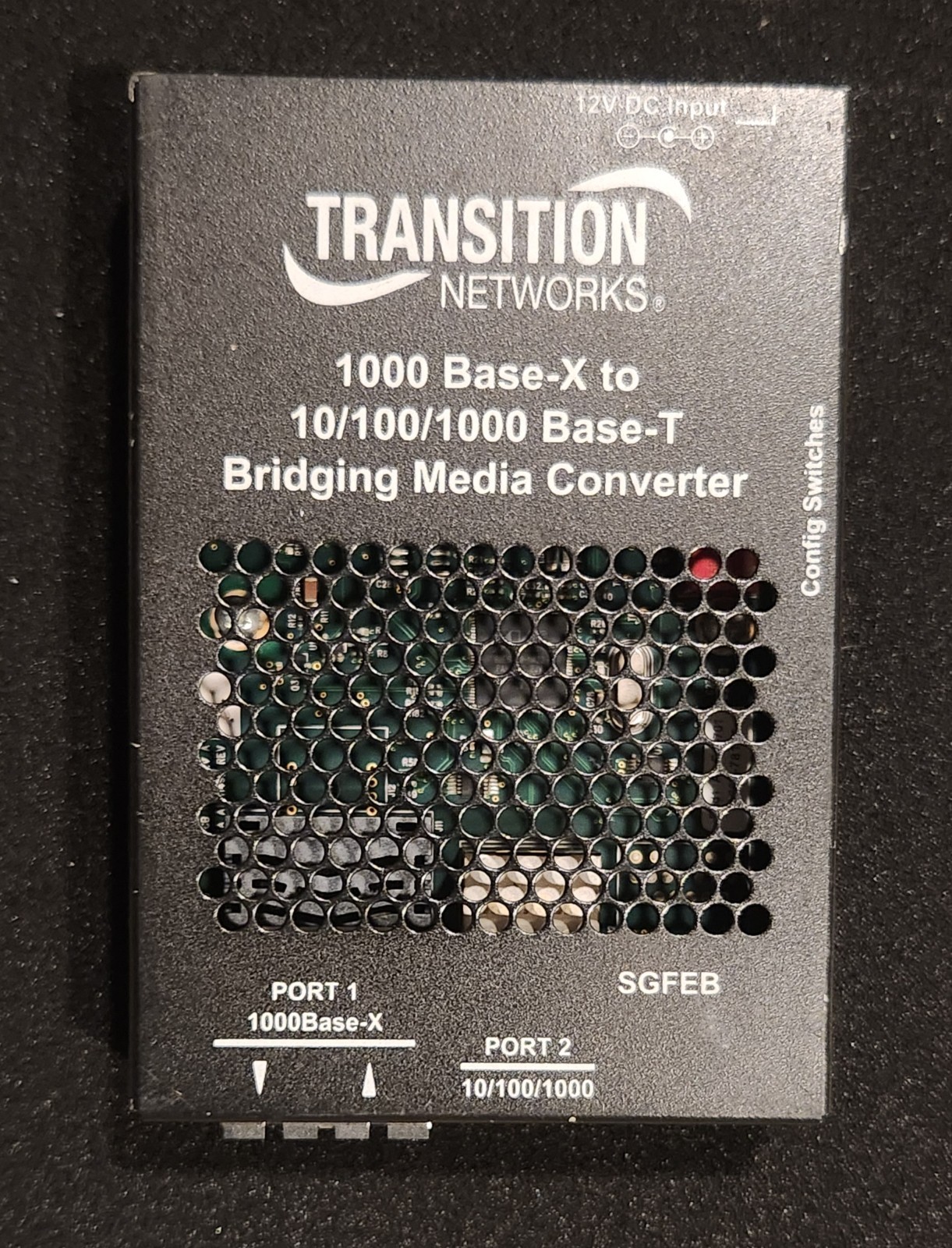

Transition Networks SGFEB1013-130 Gigabit Ethernet Fiber Media Converter SC... For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
This Transition Networks SGFEB1013-130 stand-alone bridging media converter has been fully inspected, powered on, and bench-tested to ensure proper functionality. It provides a reliable, cost-effective method to integrate 1000Base-SX multimode fiber optic cabling into standard 10/100/1000 copper networking environments. Because it operates at Layer 2, it handles rate conversion seamlessly, allowing legacy 10/100 copper devices to connect to a gigabit fiber backbone. The unit is in good cosmetic condition with minor surface wear from normal deployment. This listing includes a compatible generic 12V DC power supply adapter, completely ready for installation. Package Includes - (1) Transition Networks SGFEB1013-130 Media Converter
- (1) Generic 12V DC Switching Power Supply
Key Features - Rate Conversion: Bridges 10/100/1000Mbps copper speeds directly to 1000Mbps gigabit fiber.
- Fiber Flexibility: Employs an 850nm multimode SC dual-fiber connection (TX/RX).
- Advanced Diagnostics: Features Link Pass-Through, Far End Fault (FEF), and Remote Fault Detection (RFD) to quickly isolate network link failures.
- Jumbo Frames: Supports up to 10,260-byte jumbo frames for high-throughput configurations.
- Auto MDI/MDI-X: AutoCross function automatically fixes straight-through or crossover copper cabling issues.
- DIP Switch Configuration: Built-in hardware switches allow quick manual overrides for link configurations.
Technical Specifications - Manufacturer: Transition Networks (Lantronix)
- Model Number: SGFEB1013-130
- Port 1 (Fiber): 1000Base-SX Multimode SC Female
- Port 2 (Copper): 10/100/1000Base-T RJ-45 Female
- Maximum Distance Supported: Up to 550 meters (1,804 ft) using 50/125 µm fiber; up to 220 meters (722 ft) using 62.5/125 µm fiber
- MAC Address Table: 8K entries
- Power Requirements: 7.5V DC to 24V DC (Unit labeled for 12V DC input)
- Power Consumption: 2.2 Watts (Operational)
- Status Indicators: LED indicators for PWR (Power), LACT (Fiber Link/Activity), DUP (Duplex), and RJ-45 Speed/Link
Shipping & Returns - Free Shipping: Fast, complimentary shipping to the mainland United States.
- Risk-Free Purchase: Backed by 's standard 30-day return policy for peace of mind.
 |
| | |
