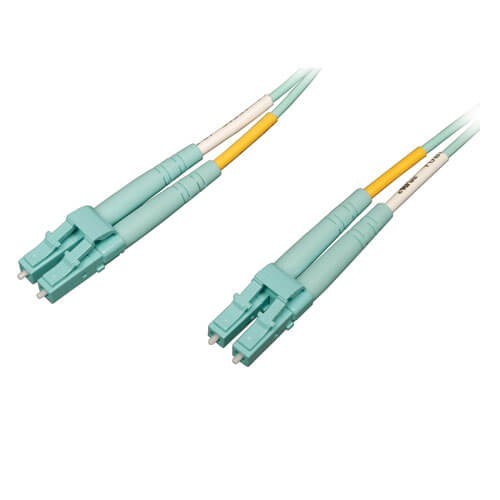

Tripp Lite 16.4ft 5M 10Gb/40Gb/100Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable (LC/LC) Aqua Model N820-05M-OM4

• Brand Tripp Lite ,
• Model N820-05M-OM4
• Optical Mode OM4,
• Side A - Connector 1 LC DUPLEX (MALE),
• Side B - Connector 1 LC DUPLEX (MALE),
• Cable Jacket Color Aqua,
• Connector Color Aqua,
• Cable Jacket Material LSZH,
• Cable Jacket Rating OFNR,
• Clad Diameter (microns) 125,
• Core Diameter (microns) 50,
• Number of Fibers 2,
• Cable Length (m) 5.00,
• Minimum Bend Radius 20 mm (Dynamic); 10 mm (Static),
• Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27,
• Shipping Weight (kg) 0.04,
• Fiber Cable Length 5M (16.4 ft),
• Operating Temperature Range -4° to 140°F (-20° to 60°C),
• Storage Temperature Range -4° to 140°F (-20° to 60°C),
• Operating Humidity Range 5% to 85% RH, Non-Condensing,
• Storage Humidity Range 35% to 65% RH, Non-Condensing,
• Network Compatibility 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps,
• Attenuation @ 850NM 3.0 dB/km,
• Insertion Loss ≤ 0.20 dB,
• Product Compliance RoHS; REACH,
• Product Warranty Period (Worldwide) Lifetime limited warranty,
• Features:
• 5 Meter ( 16ft ) LC/LC, OM4 Rated,
• 40/100gb Ethernet speed to 300 meters @850nm,
• Use with VCSEL and LED laser light sources,
• High-Speed, High-Bandwidth, Low-Cost,
• Backward compatible with legacy LAN's,
• Ideal for Fibre Channel (SAN) applications,
• IEEE 802.3ae and TIA LOMMF compliant,
• Package Includes:
• 5 meter ( 16ft ) Duplex Multimode 50/125 Aqua OM4 Fiber Patch Cable, LC/LC,
• Designed for 40/100-Gig Ethernet applications...OM4 Rated,
• Backward compatible with existing 50/125 fiber,
• Max 40/100Gb distance of 300 meters @850nm,
• Low-Smoke, Zero Halogen (LSZH) Aqua jacket,
