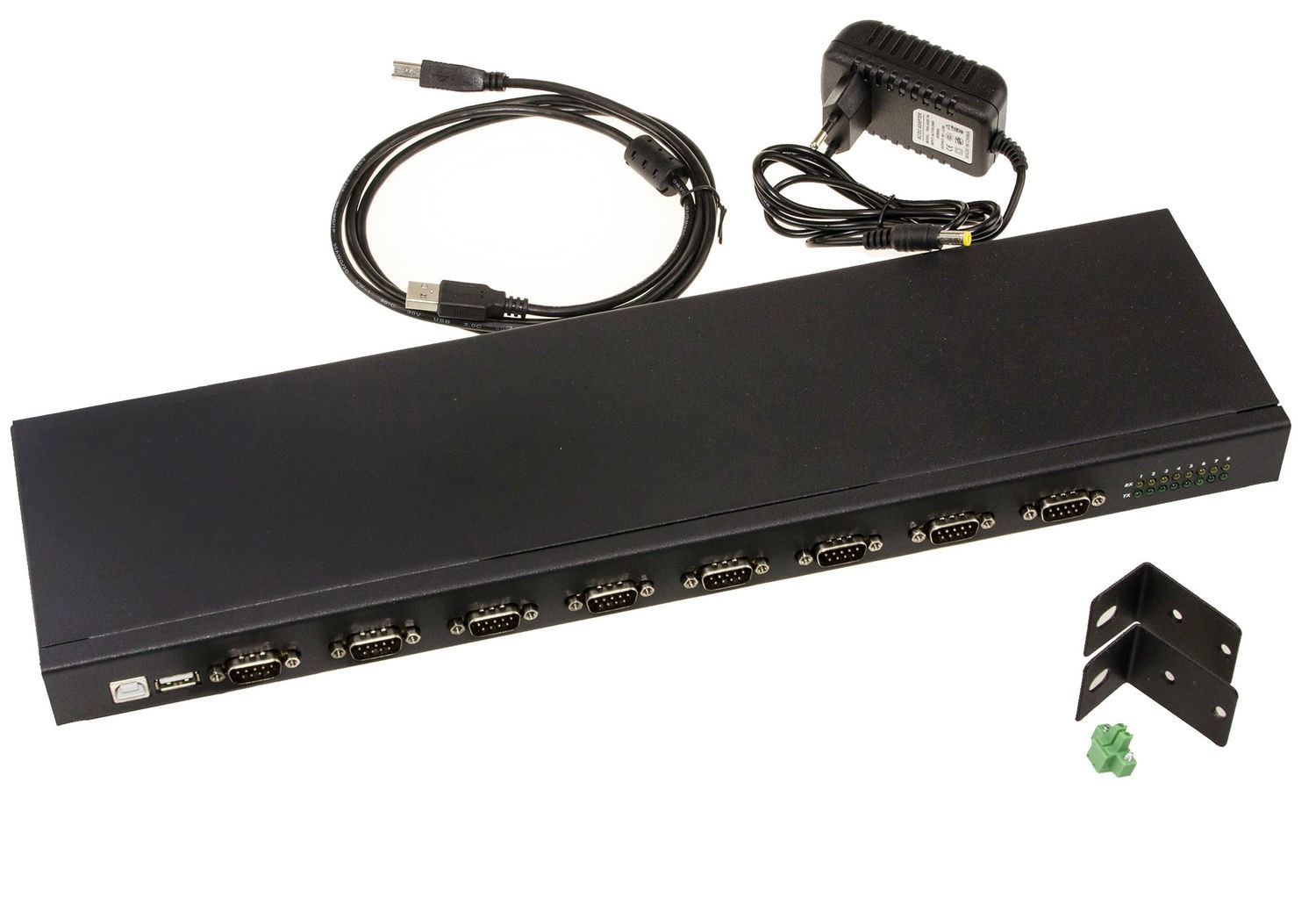

USB 8 PORT RS232 RACKABLE Converter RS-232 DB9 INDUSTRIAL RANGE
Price: FR $149.75
8X RS-232 to USB Converter
Use :
This accessory allows you to emulate eight RS232 ports using a USB socket. The ports will appear in the device manager as 'real' serial ports, whose addresses you can work on.
  Specifications:
Complies with USB1.1, 1.0 and 2.0 standards.
EIA RS-232 compliant.
USB 2.0 High Speed ​​(speed 480 Mbits/Second) and Full Speed ​​(12Mbits/Second).
USB signals: VCC, DATA+, DATA-, GNd'and FG.
RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI.
Automatic flow control.
Transfer rate 230400bps, automatic detection of serial interface transfer rate.
UART support 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity.
Range: 5 M on the RS-232 side, 5 M (maximum) on the USB side.
±15KV ESD protection.
Interface B female on the USB side (A/B cord supplied, connection on the PC side type A), male DB9 on the RS232 side.
Front panel indications: Send (TXD) and Receive (RXD).
Compatible with bus powered, self powered and high power bus powered USB power supply.
Power supply supplied DC 5V, optional power supply "terminal block power connections" (9-36 DC).
Rackable (brackets provided).
Metal case.
Windows 2000, Server 2003, Server 2008,2012, Windows XP, XP Embedded, Vista, 7/8/8.1/10, CE 4.2, 5.0, 5.2, 6.0.
Linux (2.4 and above) and Linux x86_64.
This accessory allows you to emulate eight RS232 ports using a USB socket. The ports will appear in the device manager as 'real' serial ports, whose addresses you can work on. USB 2.0 High Speed ​​(speed 480 Mbits/Second) and Full Speed ​​(12Mbits/Second). Transfer rate 230400bps, automatic detection of serial interface transfer rate. UART support 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity. Interface B female on the USB side (A/B cord supplied, connection on the PC side type A), male DB9 on the RS232 side. Compatible with bus powered, self powered and high power bus powered USB power supply. Power supply supplied DC 5V, optional power supply "terminal block power connections" (9-36 DC). Windows 2000, Server 2003, Server 2008,2012, Windows XP, XP Embedded, Vista, 7/8/8.1
