Product Description

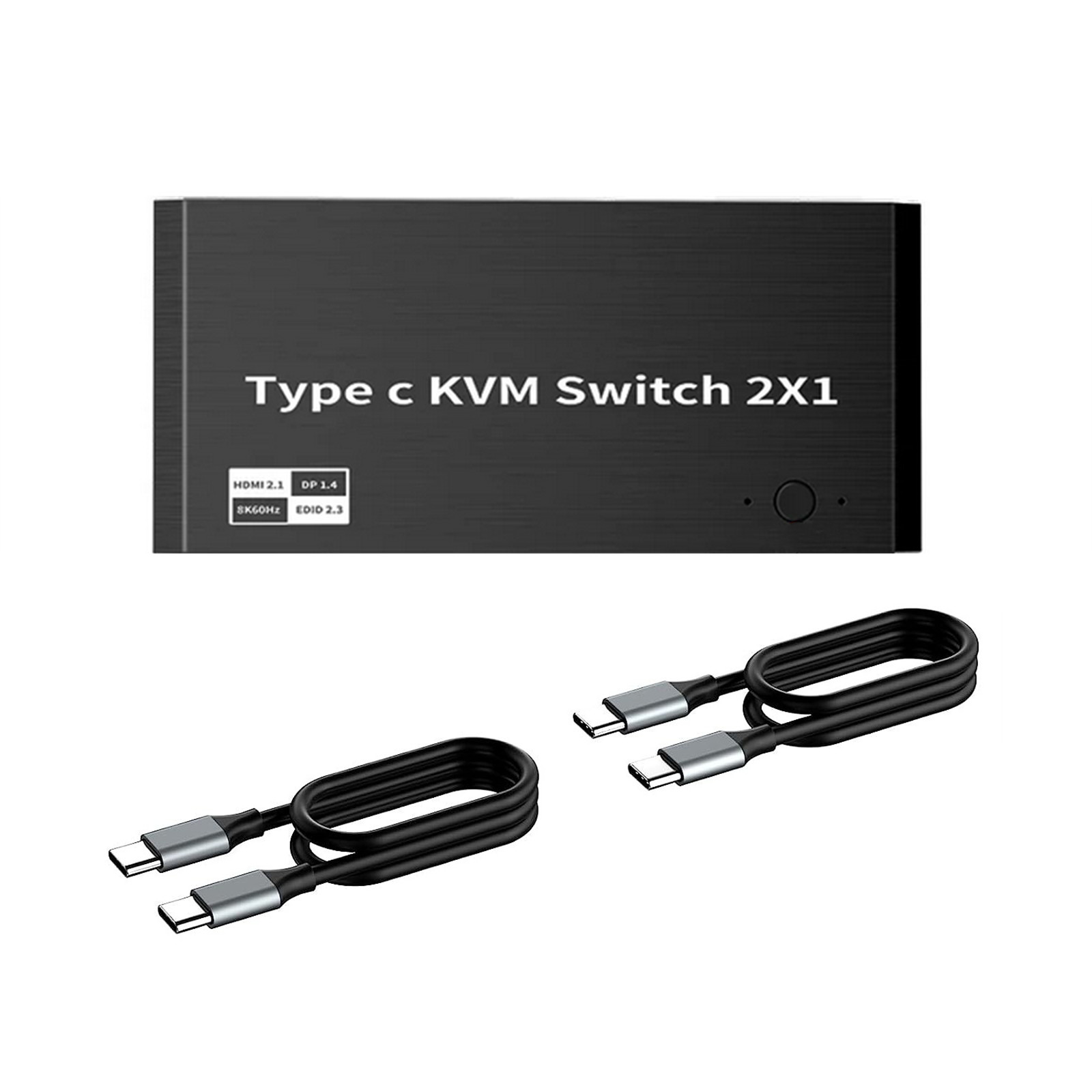

8K 2x1 USB C KVM Switch 100W PD Charge 2 In 1 Out Type C DP/HDMI KVM Switch Switcher For 2 Laptop 1 Port: 2x USB Type C Female Port for USB-C Laptop Input, 2x USB Type-C Female for 100W Power Delivery
Output Port: 1 x DP Female Port, 1x HDMI Female Port, 4 x USB 2.0 A Female Port, 1x3.5mm Jack
Bandwidth: DP 1.4: 32.4Gbps, HDMI 2.1: 48Gbps, USB 2.0: 480Mbps
HDMI Resolution: 1080P@60Hz/120Hz/165Hz, 4K@60/120Hz/144Hz(DSC), 8K@30, 8K@60Hz(DSC)
DP Resolution: 1080P@60Hz/120Hz/165Hz, 4K@60/120Hz/144Hz(DSC), 8K@30, 8K@60Hz(DSC)
DP Deep Color: 8bit/10bit/12bit
Power Supply: PD100W(Not included 100W Power adapter and cable)
Chassis: Aluminium alloy Shell
Dimension: 122mm(L)x48mm(W)x19.3mm(H)
Cable Length: 2.0m Max(Standard 8K DP/HDMI cable)
Note: DP and HDMI outputs cannot work simultaneously(Only One work), Only fit for laptops with usb-c
Features:
1. 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable, then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable, you can press the "Switch"button to switch between two of your PCs. Note: You must plug Power cable to power the switcher while working.
2. With 3 x USB 2.0 Output Port, two Computers share one set, you can connect 3 x USB2.0 Output to your USB Mouse, Keyboard, Printer, Disks, or other usb devices, while you switch from one PC to another PC, Your USB device will be synced to your external display without pluging and unpluging the related USB device repeatedly. The USB Port supports the USB 2.0 Specifications and the transfer rate is 480Mbps
3. With 100 W Power Delivery, it provides 100W power to charge the signal source, ensuring uninterrupted operation during long working hours
4. DisplayPort 1.4 or HDMI 2.1 Video Output,with this switch, you can max output 8K@60Hz, 4K@144Hz resolution in your external DisplayPort/HDMI Monitors, This requires that your USB-C pc and HDMI/DisplayPort cable Monitors should both supports the max resolution you would like to output, that is your computer's USB-C port should be thunderbolt 4 and Monitor's DP/HDMI Port should be select (Note: HDMI and DP port could not display at the same time, only support single monitor). If laptops with usb-c Gen-2 Port or Thunderbolt 3 Port, it can only max up to 4K@60Hz
5. Widely used in many occasions: Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment
Product List:
1 x USB C KVM Switch
2 x 8K Type-c cables
1 x User Manual
Note:
1. The USB C port of the laptop is Gen 2, the DP output can only be
up to 4K/60Hz
2. The USB C port of the laptop is Thunderbolt 3, the DP output can
only be up to 4K/60Hz
3. The USB C port of the laptop is Thunderbolt 4, the DP output can
reach 4K/144Hz and 8K
