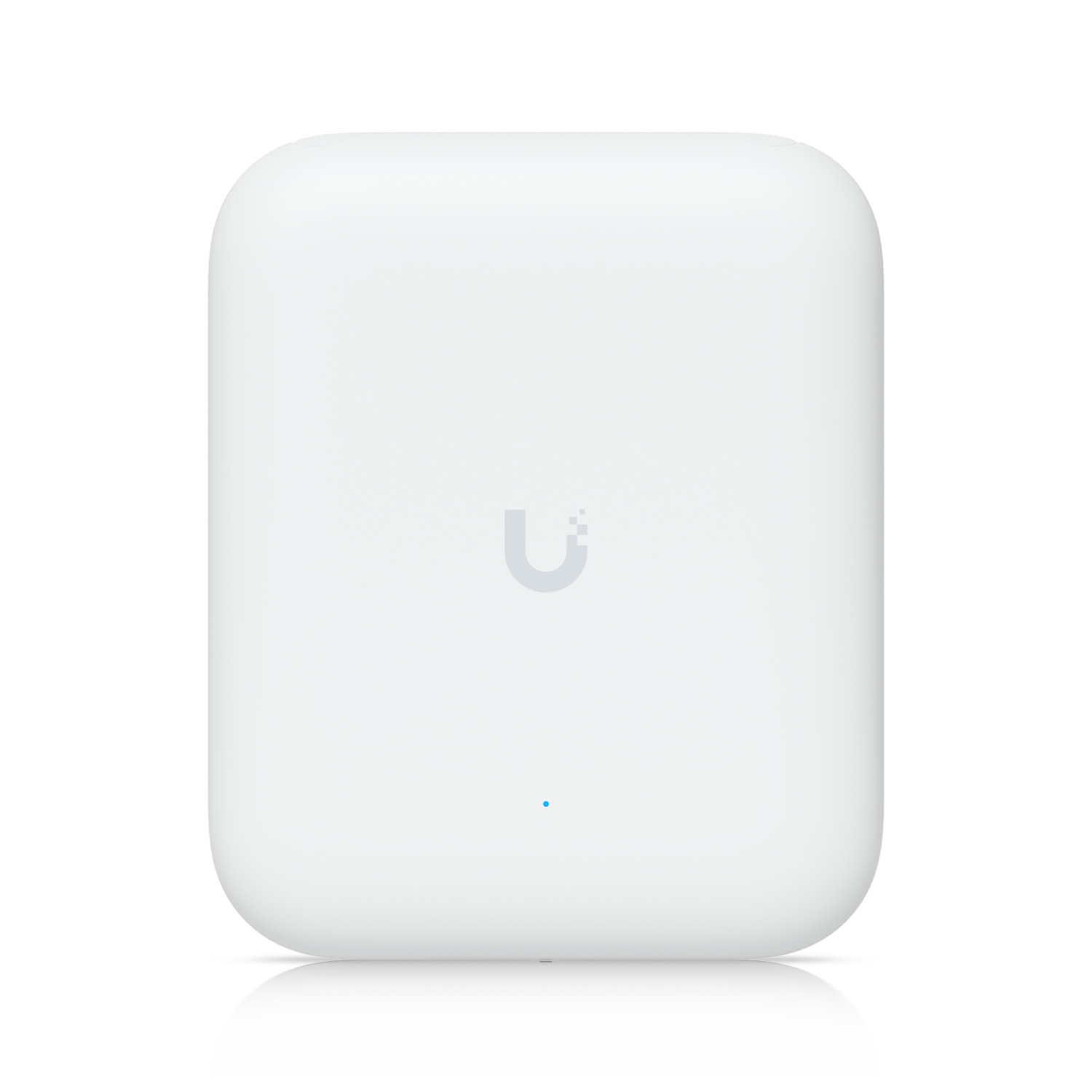

Access Point U7 Pro Outdoor Model: U7-PRO-OUTDOOR-US Product Description
All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.
Key Features
- WiFi 7 with 6 GHz support
- 6 spatial streams
- Long-range 6 GHz performance with AFC*
- 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
- Software-switchable from internal directional to included external omni antennas
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
Technical Specifications Max. Client Count300+Networking Interface(1) 1/2.5 GbE RJ45 portPower MethodPoE+Max. Power Consumption21WDimensionsWithout mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")WeightDevice: 1.2 kg (2.6 lb)With mount: 1.33 kg (2.9 lb)CertificationsFCC, IC802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11ax (WiFi 6/6E)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11be (WiFi 7)7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)802.11k Radio Resource Management (RRM)True802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)802.11r Fast RoamingTrue802.11v BSS Transition ManagementTrueAdvanced Radio ManagementTrueAmbient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-30 to 60° C (-22 to 140° F)Client Device IsolationTrueCoverage Area465 m² (5,000 ft²)Custom Branding Landing PageTrueDynamic RADIUS-assigned VLANTrueEnclosure MaterialUV-stabilized polycarbonate, aluminum alloyExternal Portal Server SupportTrueGuest Network IsolationTrueManagementEthernetMax. BSSIDs8 per RadioMobile AppiOS™ version 10.20.2 and laterAndroid™ version 10.21.7 and laterMount MaterialUV-stabilized polycarbonateMountingWall, Pole(Mounts Included)Passpoint (Hotspot 2.0)TruePassword AuthenticationTruePayment-Based AuthenticationTruePole Mount Diameter1–2.5" (25–63.5 mm)Private Pre-Shared Key (PPSK)TrueRADIUS over TLS (RadSec)TrueRadio/Antenna6 GHz RadioSpatial Streams6 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
