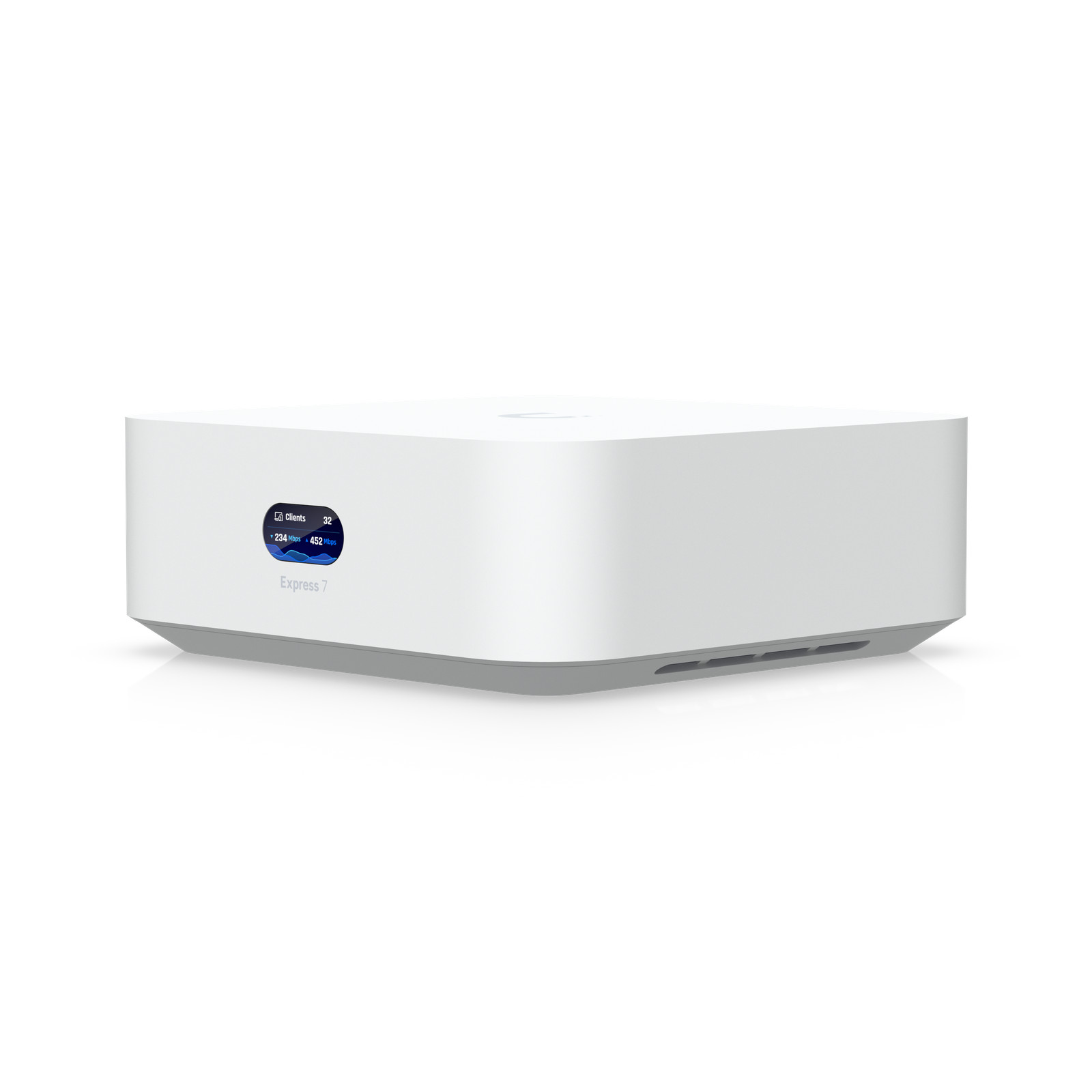

UniFi Express 7 Model: UX7 Product Description
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
Key Features
- Integrated 6-stream WiFi 7 with 6 GHz support
- Optionally adopted as wired or meshed Layer 2 UniFi AP to extend coverage
- 140 m² (1,500 ft²) coverage
- Manages 30+ UniFi devices and 300+ clients
- (1) 10 GbE RJ45 WAN port
- (1) 2.5 GbE RJ45 LAN port to extend network
Technical Specifications IDS/IPS2.3 GbpsIDS/IPS Throughput2.3 GbpsMax. Client Count300ProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHzSystem Memory3 GBPower SupplyUSB type C (5V DC/5A)(Adapter included)Power MethodUSB type C (5V DC/5A)Max. Power Consumption22WDimensions117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')Weight422 g (14.9 oz)CertificationsCE, FCC, IC, Anatel: 06656-25-0835610 GbE RJ451 (10G/5G/2.5G/1G/100M)2.4 GHz23 dBm2.5 GbE RJ451 (2.5G/1G/100M/10M)5 GHz26 dBm6 GHz24 dBm802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11ax (WiFi 6/6E)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11b1, 2, 5.5, 11 Mbps802.11be (WiFi 7)7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)Additional Internet Failover with UniFi LTE BackupTrueAdvanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)TrueAmbient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-10 to 40° C (14 to 104° F)Application-Aware Layer 7 FirewallTrueButton(1) Factory-resetCoverage Area160 m² (1,750 ft²)Customizable DHCP ServerTrueDPI & Traffic IdentificationTrueDefault WAN Ports(1) 10 GbE RJ45ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kVEnclosure MaterialPolycarbonateForm FactorCompact desktopGuest Traffic IsolationTrueHeat Dissipation75 BTU/hrIDS/IPS Signatures20,000+ with CyberSecureIntegrated RADIUS ServerTrueInternet Quality and Outage ReportingTrue 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
